RF161 DC12-24V 1 Channel Low Voltage Waterproof Wireless Dimmer
The controller uses an advanced computer control chip and is controlled by a 433MHz wireless signal. It is used to control various monochromatic lamps and lanterns that use led as a light source, such as point light source, soft light strip, wall washer, glass curtain wall lamp, etc.; with price Low cost, convenient wiring, simple use and other advantages; according to customer requirements, it can realize single-channel static ten-level brightness adjustment, 8 kinds of monochrome dynamic modes, and can achieve a variety of burst flash, breathing, gradual dimming, stroboscopic, flickering, etc. Mode, and has 10 levels of speed regulation, the speed span is large, the controller has the characteristics of easy to carry and simple to use
Product Specification Download
● Working Temperature: -20-60℃
●Power Supply Voltage: DC12-24V
● Output: 1 Channel

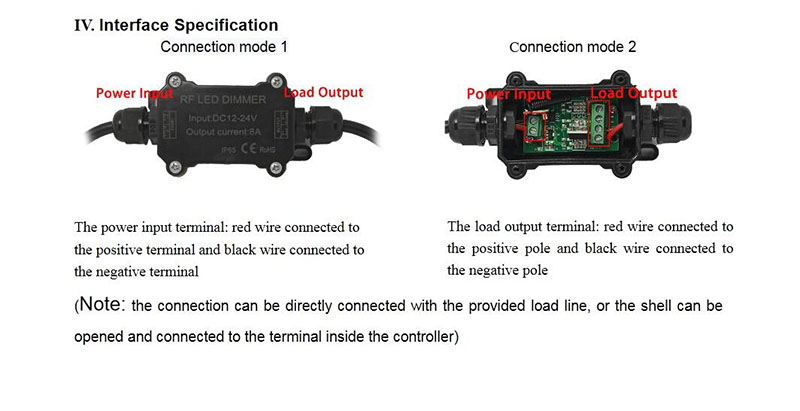

● Connection Method: Common anode
● Controller Size: L122×W52×H40mm
●Remote Control Size: L85.9×W39.6×H6.9mm
● Packing Bag Size: L150xW90.0xH60mm
● Net Weight: 35g
● Gross Weight: 50g
● Static Power Consumption: <0.5W
● Output Current: <8A
● Output Power: 12V <96W, 24V <192W
