TM10 86 Type Touch Switch Controller, SCR Low Voltage Control Dimmer

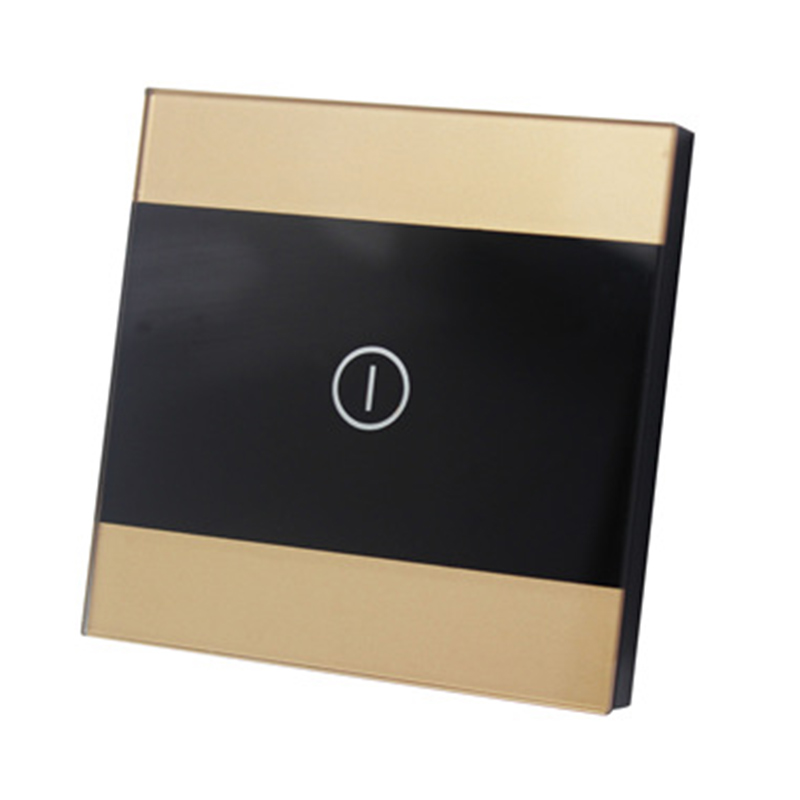

The 86-type touch switch controller adopts the popular local tyrant gold as the main colour and has a beautiful appearance, conciseness and generosity. The controller uses a capacitive touch and sensitive touch. The product uses a button to replace the switch and dimming. The operation is convenient, simple and modern. The preferred product for the home.
● Working Temperature: -20-60℃
● Power Supply Voltage: AC90～240V
● Output Voltage: AC90～240V

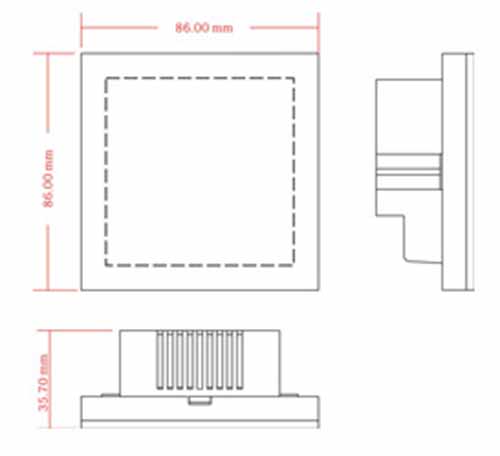

● Dimensions: L86*W86*H36.7mm
● Packing Size: L105ΧW105ΧH53mm
● Net Weight: 0.152kg
● Gross Weight: 0.210kg
● Maximum Output Current: 1A
● Maximum Output Power: 90W/90V 240W/240V
● Control Method: SCR

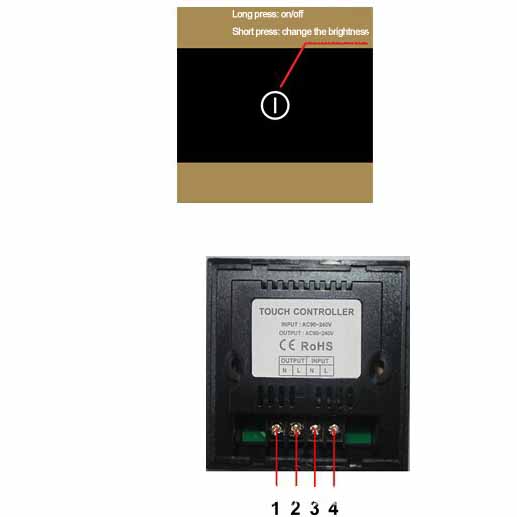

1. Load output (N)
2. Load output (L)
3. AC input (N)
4. AC input (L)
Instructions for use
When the button is short-pressed with a finger, the output load is cyclically switched between four brightness levels of 100%---75%---50%---25%. When the button is long-pressed with a finger for more than 2S, the load is controlled Output on/off.

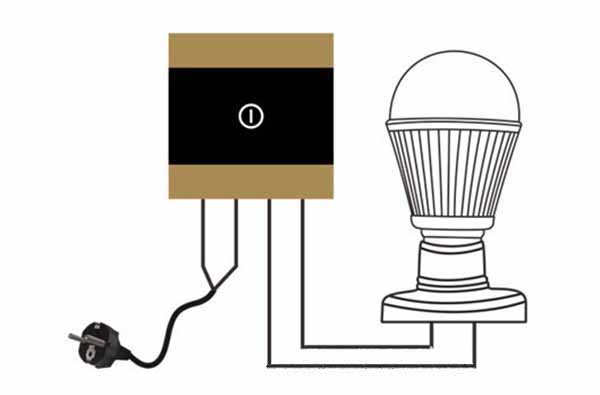

Please refer to the interface description for wiring diagram

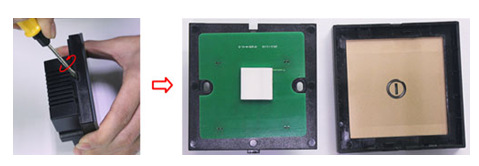

2) Open the touch panel:
3) Install the controller base:
As shown in the figure, after connecting the wires, install the touch controller in the wall cassette, then tighten the screws to fix it on the wall, and install the base on the wall

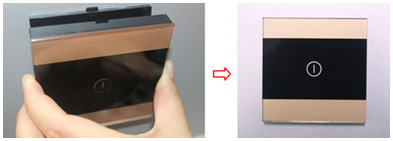

4) Cover the touch panel:
Optimistic about the direction of the panel, cover the panel as shown below:
1. Connect the load wire at first, following by the power wire; Please ensure short circuit can
not occur between connecting wire before you turn on the power;
2. The supply voltage of controller ranges in DC12-24V, it may burn out the controller once
exceed the voltage.
3. The remote control enter sleep mode after 30s, now the function of chromatic circle is not
working. If you need to use the remote, please press any key on the remote to awaken it.
