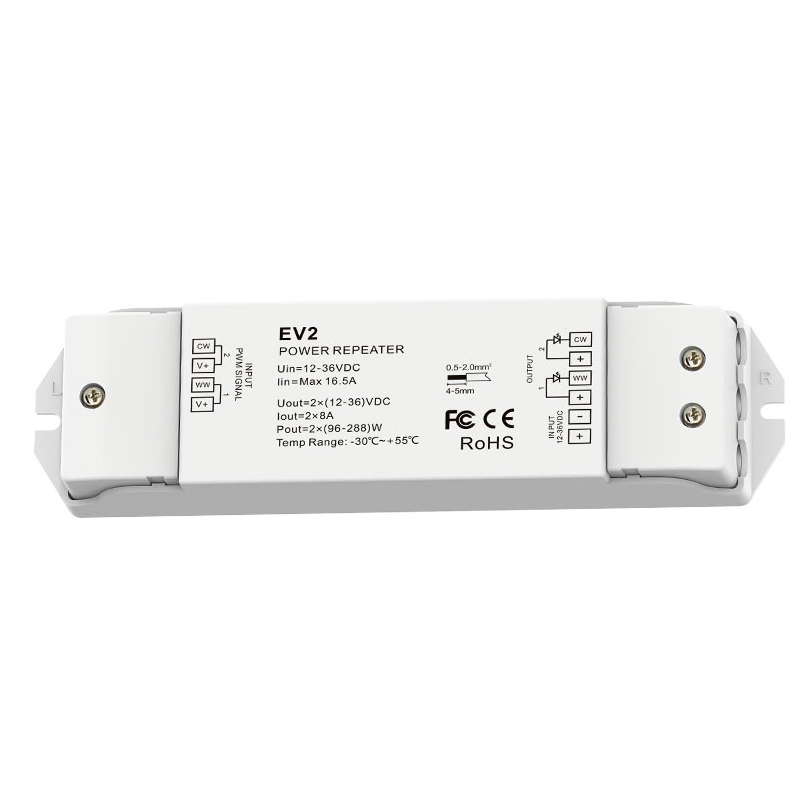

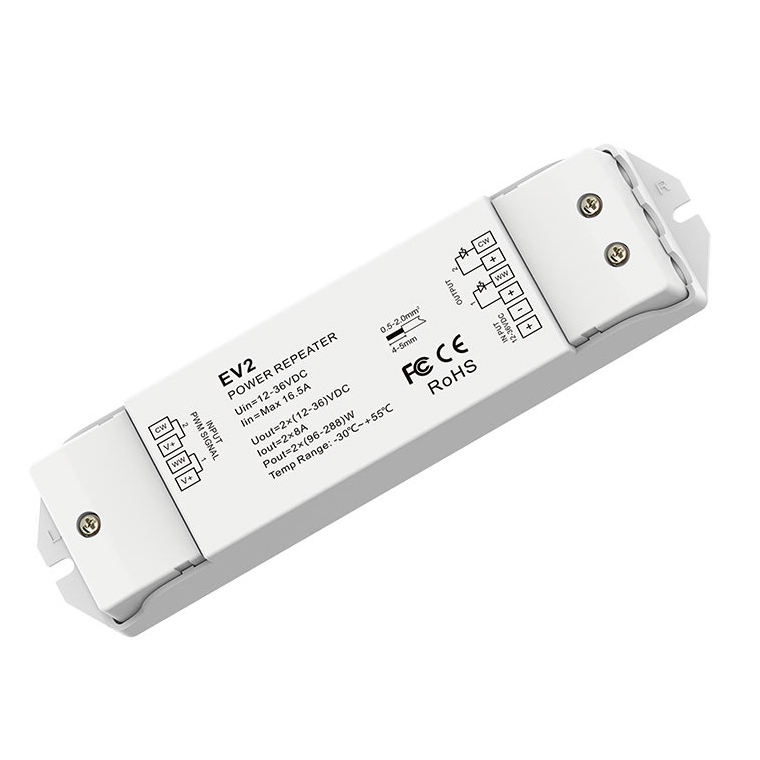

12-36VDC 2CH*8A constant voltage Power Repeater EV2

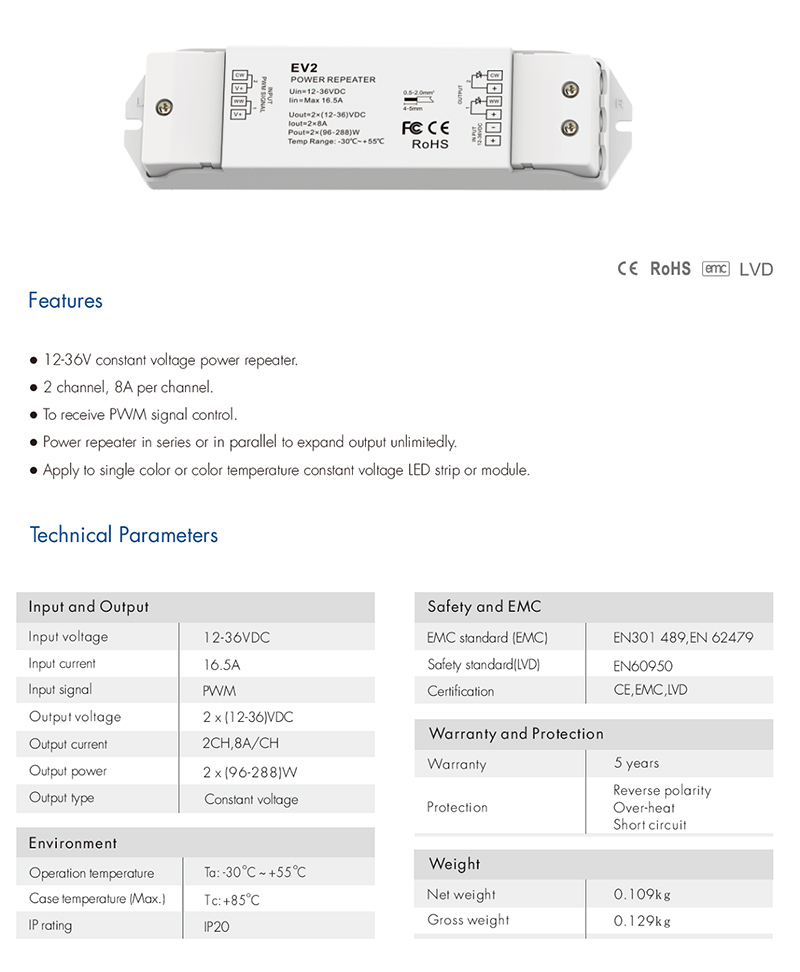

● 12-36V constant voltage power repeater.
● 2 channel, 8A per channel.
● To receive PWM signal control.
● Power repeater in series or in parallel to expand output unlimitedly.
● Apply to a single color or color temperature constant voltage LED strip or module.
Input and Output
Input voltage: 12-36VDC
Input current: 16.5A
Input signal: PWM
Output voltage: 2 x (12-36)VDC
Output current: 2CH,8A./CH
Output power: 2 x (96-288)W max
Output type: Constant voltage
Safety and EMC
EMC standard (EMC): EN301 489,EN 62479
Safety standard(LVD): EN60950
Woking Temperature: -30℃～55℃
IP Rating: IP20
Warranty: 5 years
Protection: Reserve polarity
Standards and Certifications
