DC5-36V 1CH Constant Voltage Power Repeater EV1 For Single Color LED Strip

Model: EV1 Review stars 0.0 (0 Reviews) Various options in stock
Price$8.98
Qty Discounts Off Price
1-4
$8.98
5-9
$8.80
10-14
$8.53
15+
$8.17
* Discounts may vary based on options below
Select Specifications:
Select Input Voltage:
Qty: -+
❓ Ask a question about this item — an engineer replies within 12 hours
Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Downloads
  • Images
  • LED Strip Lights Guide

Product Information

The EV1 is a dedicated single-channel constant voltage power repeater engineered to expand the load capacity of PWM dimming systems driving single-color LED strip installations. Operating on an input voltage of 12-36VDC with an 8A continuous output rating, this compact unit delivers up to 96W at 12V, 192W at 24V, and 288W at 36V. Designed to solve voltage drop and overcome controller output limitations, the EV1 receives the PWM dimming signal from a primary master dimmer and replicates it identically across subsequent lighting segments. Multiple EV1 units can be connected in series or parallel without a theoretical limit, ensuring uniform brightness across long linear runs.

arrow

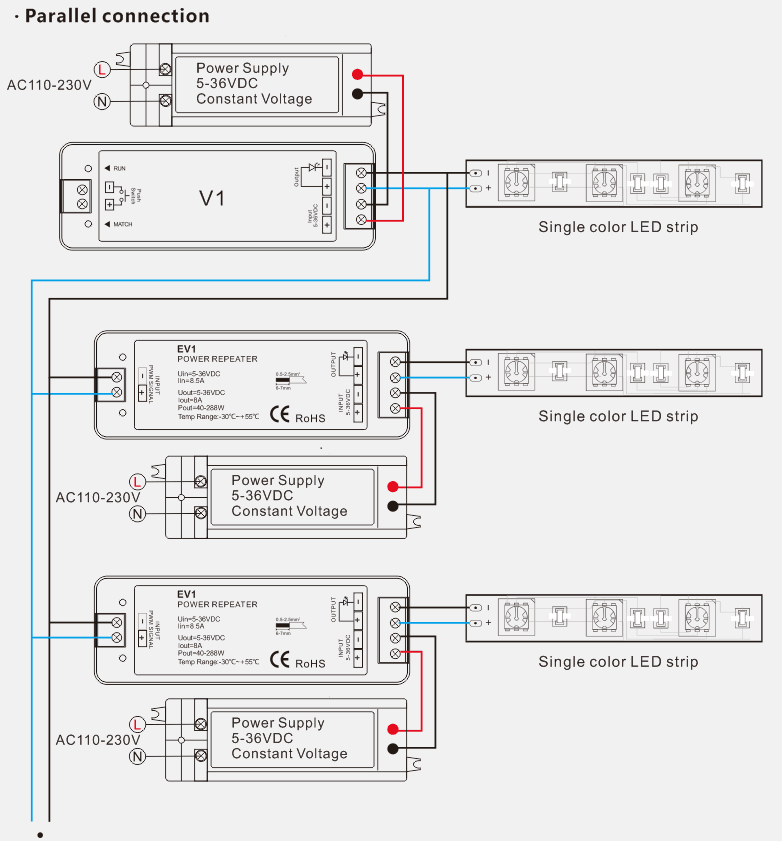

Parallel wiring schematic showing synchronized single-color LED strip power expansion

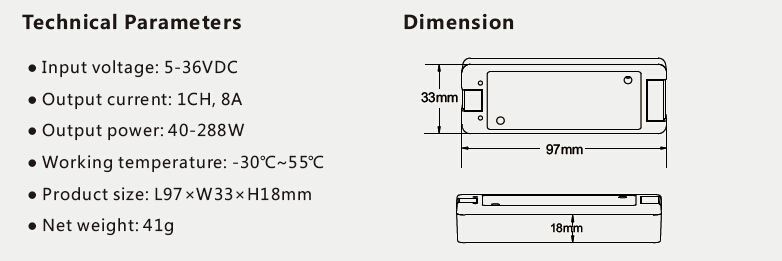

DC5 36V 1CH Constant Voltage Power Repeater EV1 For Single Color LED Strip - photo 2

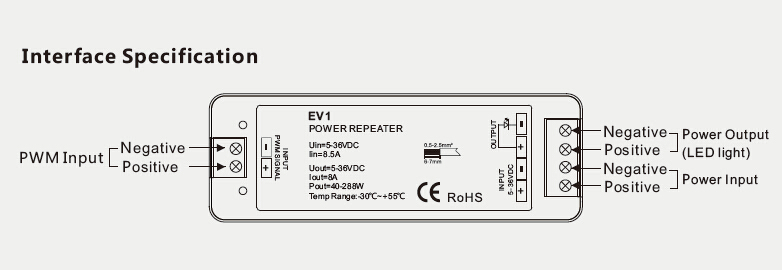

Terminal screw connections and polarity markings for PWM input, power input, and LED output

Key Features

High Current 8A Output

Provides a sustained 8A output across a single channel to drive up to 288W of high power LED strip runs reliably.

Wide Operating Voltage Range

Accepts 12-36VDC input, matching common 12V, 24V, and 36V constant voltage LED power supplies.

Synchronous PWM Signal Replication

Reads incoming PWM dimming pulses and mirrors duty cycles identically to eliminate visible flicker or lag.

Unlimited Cascade Capability

Supports parallel and series wiring of unlimited repeater units to power LED strip runs of any architectural scale.

Ultra-Compact Footprint

Measures L97 x W33 x H18mm with an overall net weight of 41g, fitting easily inside narrow coves and joinery.

Independent Power Supply Isolation

Allows distributed power supplies across different zones while maintaining unified control from a single master dimmer.

Technical Highlights

  • Eliminates linear voltage drop by injecting fresh 12-36VDC power directly into extended single color LED strip lengths.
  • Delivers 96W output at 12V, 192W at 24V, and 288W at 36V within safe thermal tolerances.
  • Compatible with any constant voltage PWM controller, RF dimmer, DMX decoder, or 0/1-10V dimming unit.
  • Screw terminal block design accommodates wire gauges up to 1.5mm2 (16 AWG) for secure field connections.
  • Operates reliably in ambient temperatures ranging from -30 deg C to +55 deg C under natural air convection.
  • Features input polarity protection and robust PCB isolation to protect upstream master control units.
arrow
EV1 single-channel constant voltage power repeater front terminal layout and enclosure dimensions

Product Specifications

ParameterDetails
ModelEV1
Product TypeConstant Voltage LED Power Repeater
Input Voltage12-36VDC
Output Voltage12-36VDC (matches power input)
Output Current1 Channel, 8A Max
Output Power96-288W (96W @ 12V, 192W @ 24V, 288W @ 36V)
Input SignalPWM Dimming Signal (from CV LED dimmer)
Dimming Gray Scale4096 levels (determined by master dimmer)
Dimming Range0-100% full range PWM
Input Current Rating8.5A Max
Working Temperature-30 deg C to +55 deg C
Case Temperature (Max)+75 deg C (Tc)
Ingress Protection RatingIP20 (Non-waterproof, indoor use)
Casing MaterialWhite flame-retardant polycarbonate
Product DimensionsL97 x W33 x H18 mm
Net Weight41 g
Gross Weight55 g
CertificationsCE, RoHS
DC5 36V 1CH Constant Voltage Power Repeater EV1 For Single Color LED Strip - photo 1
Series wiring configuration connecting primary LED controller to multiple EV1 units

Application Scenarios

Extended Cove and Perimeter Lighting When architectural perimeter runs exceed the wattage limit of a single master dimmer, the EV1 powers downstream single color LED strip fixtures from local power supplies while maintaining identical 0-100% dimming response.
Commercial Linear Display Cases Retail display shelves requiring high power led light fixtures often draw high current. Deploying EV1 repeaters in each display cabinet ensures unified dimming without overburdening the primary control panel.
Multi-Room Residential Synchronization Sync under-cabinet and valence single color LED strip zones across open-concept floorplans using a single wall controller paired with decentralized EV1 repeaters located near respective driver enclosures.
Architectural Handrail and Step Illuminations Long corridor runs suffer noticeable brightness drop towards tail ends. The EV1 acts as an active booster, receiving the dimmed signal and re-energizing the led light strip power uniformly along stairways.

How to Control & Use This Controller

  1. Disconnect AC line voltage from all power supply units before mounting or wiring the EV1 repeater.
  2. Mount the EV1 housing securely to a flat indoor surface, ensuring at least 20mm clearance around the ventilation vents.
  3. Connect the PWM dimming output wires from the master controller or dimming driver to the EV1 'INPUT PWM SIGNAL' terminals (+ to +, - to -).
  4. Connect a dedicated 12-36VDC constant voltage power supply to the EV1 'INPUT 5-36VDC' (12-36VDC operating) power terminals, observing polarity.
  5. Connect the single color LED strip load to the EV1 'OUTPUT' terminals (+ to +, - to -), ensuring the load does not exceed 8A.
  6. Verify all terminal screws are firmly clamped on bare wire conductors without stray copper strands bridging adjacent ports.
  7. Reapply AC mains power and test dimming response from the master controller to confirm smooth, synchronous brightness changes.
⚠ Precautions
  • This device is rated IP20 non-waterproof; install inside dry indoor enclosures shielded from dampness, condensation, and direct sun.
  • Always calculate total connected load: select a power supply whose rated output is at least 20% higher than the peak LED strip power consumption.
  • Verify that the power supply output voltage matches the operating voltage requirement of the connected LED strip exactly (e.g., 24V supply for 24V strips).
  • Do not exceed the maximum current limit of 8A (96W at 12V, 192W at 24V, 288W at 36V) on the single output channel.
  • Maintain adequate air circulation around the repeater; do not pack thermal insulation tightly over the unit housing.

What's in the Box

  • ✓1 x EV1 1CH Constant Voltage Power Repeater (12-36VDC, 8A)
  • ✓1 x User Instruction & Wiring Guide

⇩ Downloads & Documents

PDFEV1

Frequently Asked Questions

Q: can dmx control single color led strip

A:Yes. A DMX512 CV decoder converts DMX signals into PWM dimming outputs, which can connect directly to a single color LED strip or feed into an EV1 repeater to drive high-wattage single-color loads.

Q: What is the difference between parallel and series connection of repeaters?

A:In parallel connection, all EV1 repeaters receive their PWM input signal directly from the master controller. In series connection, each repeater takes its PWM input from the output of the preceding repeater; both configurations yield synchronous dimming.

Q: How many EV1 repeaters can I connect to one master dimmer?

A:There is no theoretical limit to the number of EV1 repeaters you can connect in series or parallel, provided each repeater receives its own properly sized 12-36VDC power supply to handle its connected LED strip load.

Q: Can the EV1 repeater change the voltage between the input and output?

A:No. The EV1 is a pass-through PWM switching device; its output voltage matches whatever DC voltage is supplied to its power input terminals (12V in yields 12V out, 24V in yields 24V out).

Q: What should I do if the LED strip intensity is uneven between the front and end?

A:Uneven intensity indicates voltage drop caused by excessive wire length, undersized wire gauge, or overloaded controllers. To resolve this, shorten conductor runs, upgrade wire diameter, or install an additional EV1 repeater closer to the dimmer run.

Q: Does the EV1 produce dimming delay or lag when daisy-chained?

A:No. The EV1 utilizes high-speed internal switching circuitry to duplicate the incoming PWM pulse without noticeable latency, keeping all cascaded LED strip sections perfectly in phase.



Reviews
