Product Information
Key Features
High 15A Current Output
Drives up to 180W of 12V LEDs or 360W of 24V LEDs on a single channel, ideal for power-hungry strips.
Unlimited Signal Expansion
Connect multiple EV1-S units in series or parallel to extend your lighting system to any required length or scale.
PWM Signal Compatibility
Seamlessly receives and re-transmits standard PWM signals from a wide range of single-color PWM dimmers and controllers.
Flexible 12-24V DC Input
Compatible with the most common constant voltage LED systems, automatically adapting to your project's voltage.
Flicker-Free Performance
Ensures a stable, clean signal and power delivery, eliminating the dimming and flickering caused by voltage drop.
Technical Highlights
- Single channel output simplifies wiring for single-color LED applications.
- Screw-down power terminal blocks ensure secure, reliable connections.
- Compact design allows for easy integration into enclosures or tight spaces.
- Can be daisy-chained for serial expansion or wired in parallel for load distribution.

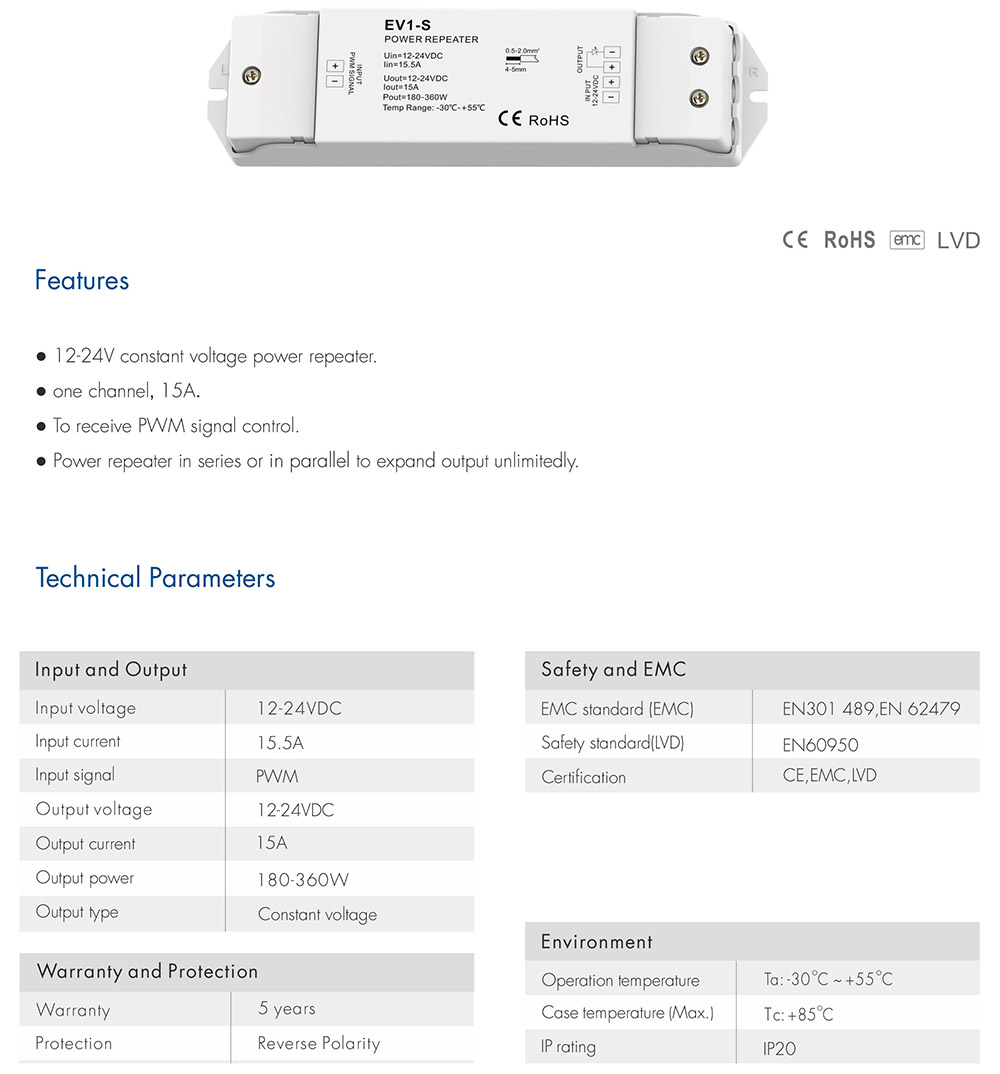

Product Specifications
| Parameter | Details |
|---|---|
| Model | EV1-S |
| Type | Constant Voltage (CV) Power Repeater |
| Input Voltage | 12-24V DC |
| Input Signal | PWM (Pulse-Width Modulation) |
| Output Channels | 1 Channel |
| Output Current | 1 x 15A |
| Output Power | 180W (at 12V) / 360W (at 24V) |
| Output Signal | PWM (Pulse-Width Modulation) |
| Working Temperature | -20℃ to 60℃ |
| Protections | Short circuit, Over current |
Application Scenarios
How to Control & Use This Power Repeater
- Ensure all power is disconnected before beginning installation.

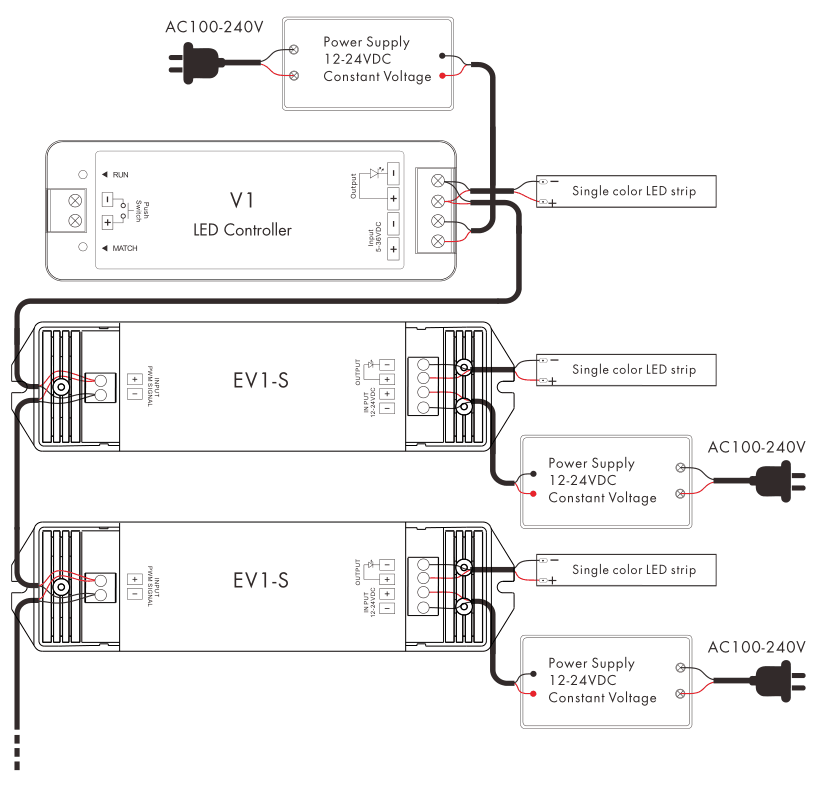

- Connect the V+ and V- output from your main LED dimmer or controller to the 'Signal IN' terminals on the EV1-S.
- Connect a secondary LED power supply to the 'Power IN' power terminal on the EV1-S. Make sure its voltage (12V or 24V) matches your LED strips.
- Connect the next section of your single color LED strip lights to the 'Output' terminals (V+ and V-).

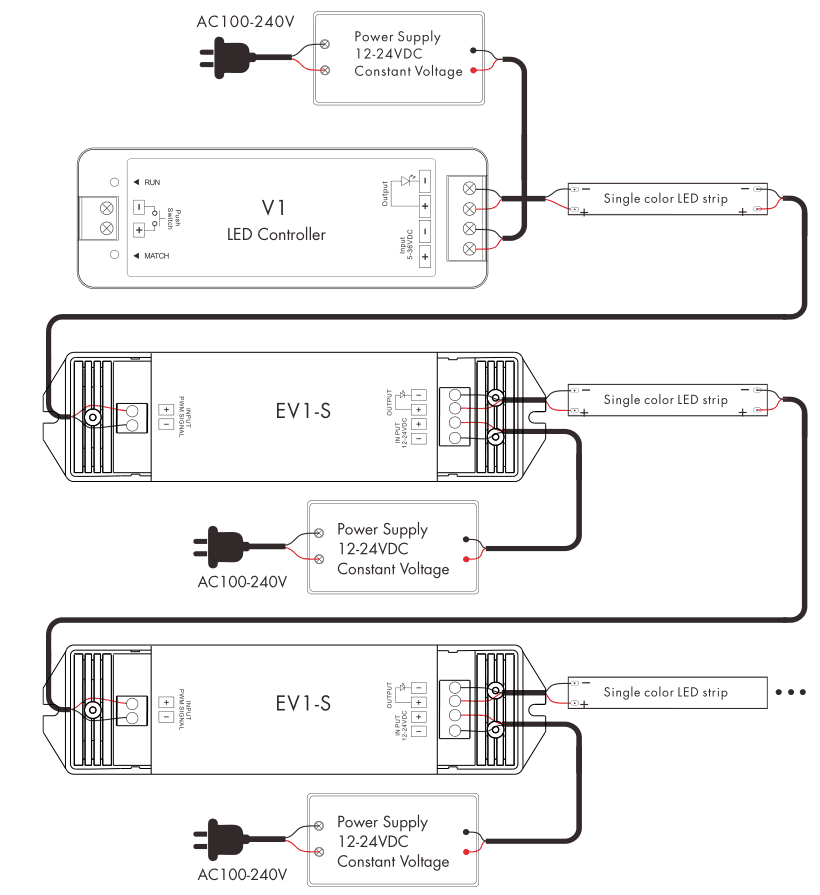

- To expand further, you can connect the output of one repeater to the input of the next in series.
- Double-check that all wiring polarity is correct (+ to +, - to -) to prevent damage. Restore power and test the system.
- The input voltage of the power supply must match the voltage rating of your LED strips (e.g., use a 24V power supply for 24V strips).
- The total load of the connected LED strips must not exceed the 15A maximum current rating of the repeater.
- Use appropriately gauged wires to handle the 15A current safely and minimize voltage drop.
- This is a constant voltage repeater; do not use with constant current LED products.
What's in the Box
- ✓1 x EV1-S Dimming Power Repeater
- ✓1 x User Manual
⇩ Downloads & Documents
PDFEV1-S
Frequently Asked Questions
Q: What is a power repeater and why do I need one?
A:A power repeater amplifies the control signal and provides new power from a separate power supply. You need one for long LED strip runs to combat voltage drop, which causes lights to dim or change color at the far end.
Q: My long LED strip run is flickering. Will this repeater fix that?
A:Yes, flickering in long runs is often caused by a weak signal or insufficient power. The EV1-S regenerates a clean PWM signal and injects fresh power, which typically resolves flickering issues.
Q: Can this repeater be used with RGB or RGBW LED strips?
A:No, the EV1-S is a single-channel (1CH) device designed exclusively for single-color LED strips. For multi-color strips, you would need a 3, 4, or 5-channel power repeater.
Q: How many EV1-S repeaters can I connect in a series?
A:You can connect them in series virtually without limit. Each repeater boosts the signal for the next one, and each should be powered by its own appropriately sized power supply.
Q: What kind of power supply is required for the EV1-S?
A:You need a constant voltage 12V or 24V DC power supply. The voltage must match your LED strip, and its wattage should be at least 20% higher than the load of the strips connected to the repeater.
Q: Does this repeater work with any brand of PWM controller?
A:Yes, the EV1-S is designed to accept a standard PWM control signal, making it compatible with most PWM-based single-color LED dimmers and controllers on the market.
