EV2-W 12-24VDC CV PWM Dual White LED Power Repeater

Model: EV2-W
EV2-W 12-24VDC CV PWM Dual White LED Power Repeater

$4.98

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-4
$4.98
5-9
$4.88
10-14
$4.73
15+
$4.53
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

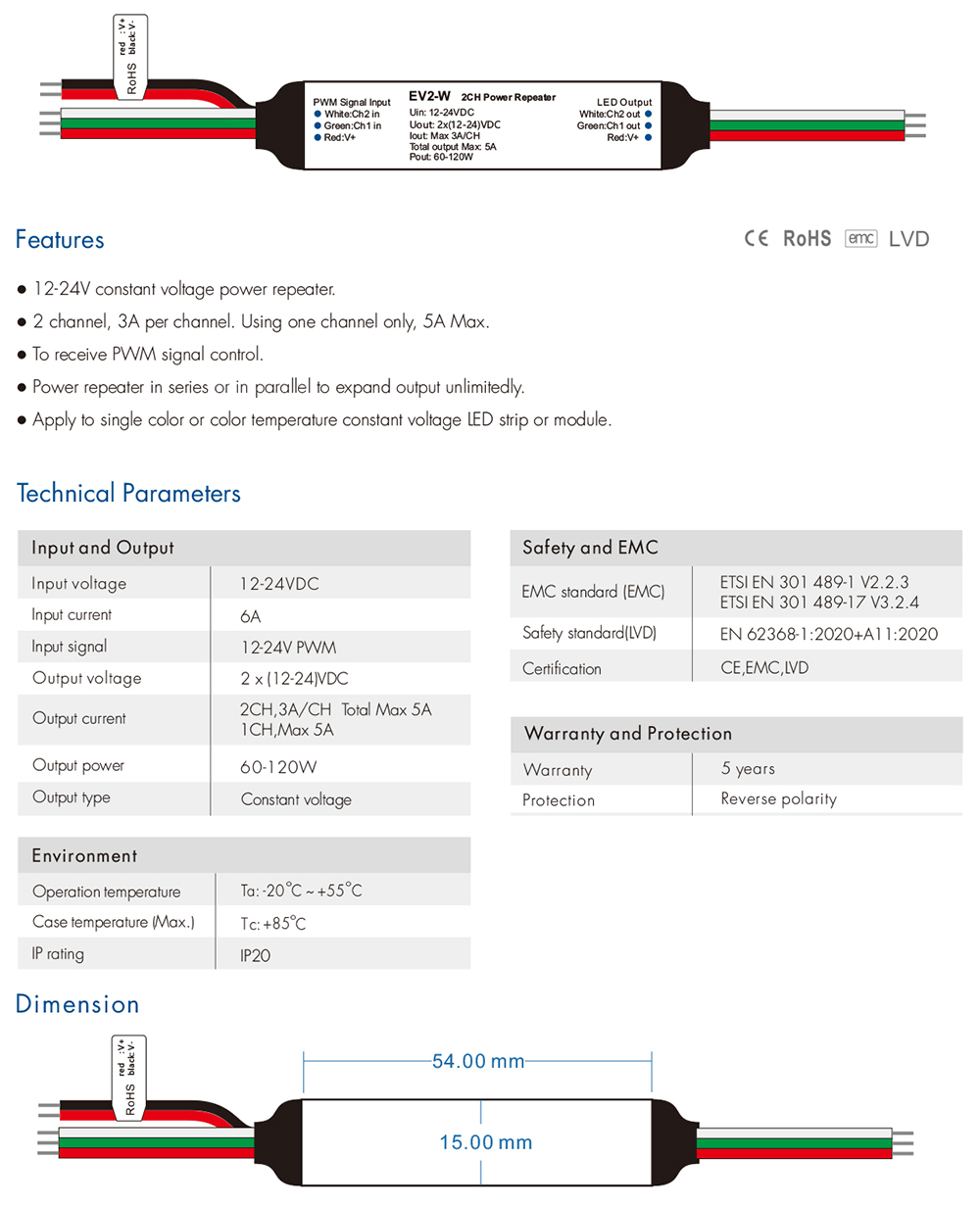

    Product Features

    ● 12-24V constant voltage power repeater.

    ● 2 channel, 3A per channel. Using one channel only, 5A Max.

    ● To receive PWM signal control.

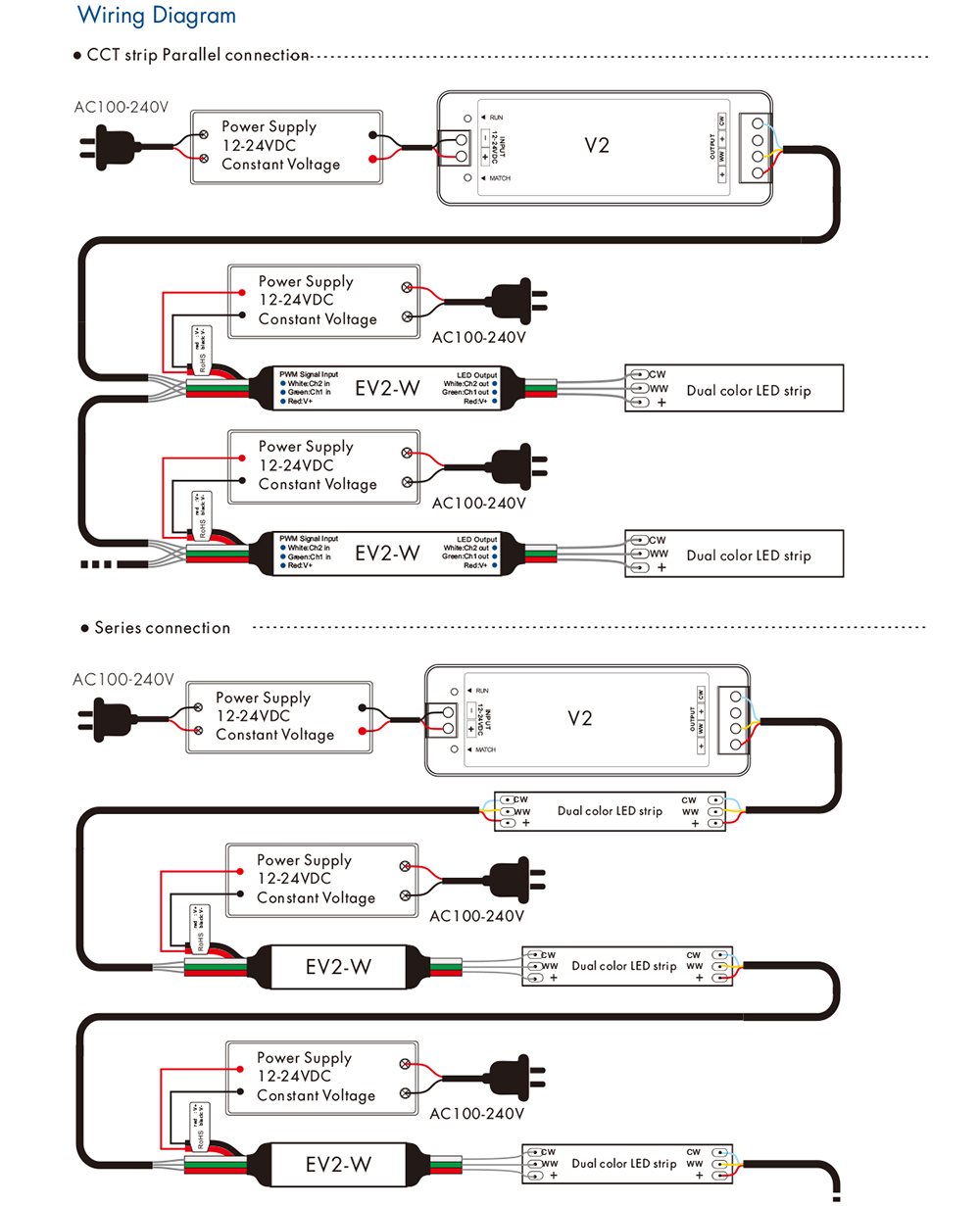

    ● Power repeater in series or in parallel to expand output unlimitedly.

    ● Apply to single color or color temperature constant voltage LED strip or module.



    Technical Parameters

    Input and Output

    Input voltage: 12-24VDC

    Input current: 6A

    Input signal: 12-24V PWM

    Output voltage: 2 x (12-24)VDC

    Output current: 2CH, 3A./CH, Total Max 5A

    Output power: 60-120W max

    Output type: Constant voltage



    Safety and EMC

    EMC standard (EMC): ETSI EN 301 489-1 V2.2.3; ETSI EN 301 489-17 V3.2.4

    Safety standard(LVD): EN 62368-1:2020+A11:2020

    Certification: CE,EMC,LVD



    Environment

    Woking Temperature: -20℃~55℃

    Case Temperature:TC:+85℃

    IP Rating: IP20

    Warranty: 5 years

    Protection: Reserve polarity



    Standards and Certifications





    EV2-W
