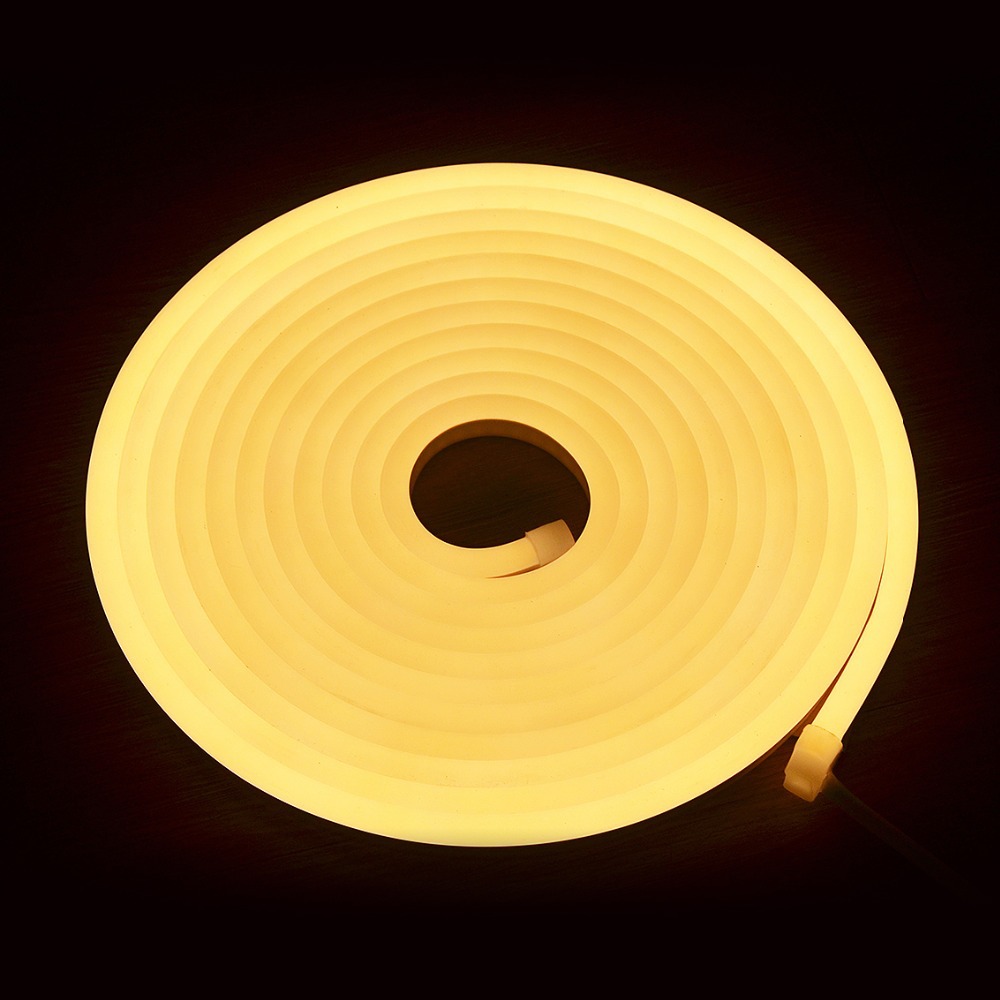

DC24V 16.4Ft Diameter 16mm Top Lighting Waterproof Multi-Color Optional Flexible LED Neon Light for Outdoor Lighting
Here is the 270-degree light-emitting neon led sign light with various color temperatures and light colors, low power consumption than traditonal glass neon lights. Using food grade silicone material, soft linear light and no light spot. This neon light strip is IP67 waterproof, suitable for advertising lighting, making neon signs (you can use this soft silicone neon tube light to diy neon name signs, neon sign font, etc.), and apply for outdoor lighting.
Here you can purchase the neon white light, red neon sign light, green neon sign light, blue neon sign light, pink neon sign light, yellow neon sign light, CCT tunable neon sign light, and color changing RGB neon sign light. IP20 non-waterproof and IP67 waterproof neon lighting kit are available.

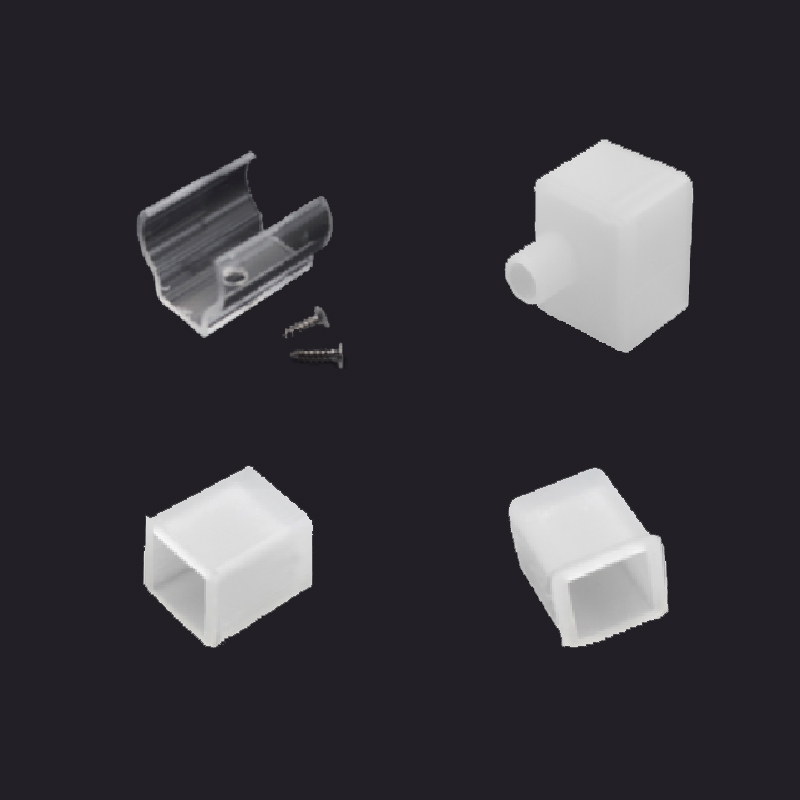

Neon Light Kit:
If you choose the LED power supply in the kit, we will send you PSPS-24V-72W
Standards and Certifications
|LED Product Type:||Neon Signs Lights 16.4ft|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|
|Light Colors:||2700K/3000K warm white, 4000K natural white, 6000K daylight white, red, green, blue, pink, yellow, CCT, multi color RGB|
|LED Quantity:||96/120 LEDs per meter, 37LEDs/Ft (single color and CCT); 29LEDs/Ft (RGB)|
|Input Voltage(V):||24 VDC|
|Working Power:||10W/m, 50W /16.4ft Max → Informations About LED Power Supply|
|Material:||Food grade silicone|
|Waterproof Rating:||Waterproof IP67|
|Beam Pattern:||270 degree|

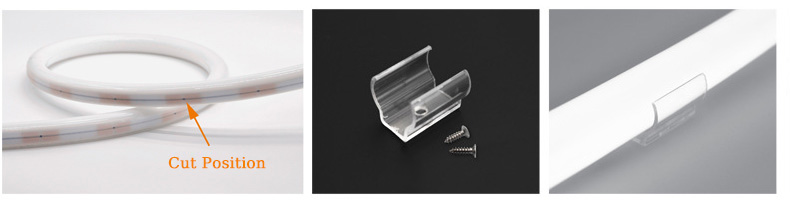

How To Install LED Neon Lights?
3. How to Repair LED Neon Strip Lights?
a. Single color LED neon light signs wiring diagram:
b. CCT adjustable white neon light signs wiring diagram:
c. Multi-color RGB neon lights wiring diagram:
LED programmable digital display
Hotels decoration use
Concealed lighting, Cove decoration
Theaters, clubs, shopping malls lighting
Architectural decorative lighting
Boutique atmosphere lighting
Auditorium walk stairway lighting
Hidden groove, Wine cabinet decoration
Show exhibition decoration
