DC24V Waterproof IP66 Ra90 High Lens Bright White CCT Flexible LED Wall Washer Strip Light

Model: FSLSR-WASHWALL-001
DC24V Waterproof IP66 Ra90 High Lens Bright White CCT Flexible LED Wall Washer Strip Light
  • DC24V Waterproof IP66 Ra90 High Lens Bright White CCT Flexible LED Wall Washer Strip Light
  • DC24V Waterproof IP66 Ra90 High Lens Bright White CCT Flexible LED Wall Washer Strip Light
  • DC24V Waterproof IP66 Ra90 High Lens Bright White CCT Flexible LED Wall Washer Strip Light
  • DC24V Waterproof IP66 Ra90 High Lens Bright White CCT Flexible LED Wall Washer Strip Light
  • DC24V Waterproof IP66 Ra90 High Lens Bright White CCT Flexible LED Wall Washer Strip Light
  • DC24V Waterproof IP66 Ra90 High Lens Bright White CCT Flexible LED Wall Washer Strip Light
  • DC24V Waterproof IP66 Ra90 High Lens Bright White CCT Flexible LED Wall Washer Strip Light
  • DC24V Waterproof IP66 Ra90 High Lens Bright White CCT Flexible LED Wall Washer Strip Light
  • DC24V Waterproof IP66 Ra90 High Lens Bright White CCT Flexible LED Wall Washer Strip Light
  • DC24V Waterproof IP66 Ra90 High Lens Bright White CCT Flexible LED Wall Washer Strip Light
  • DC24V Waterproof IP66 Ra90 High Lens Bright White CCT Flexible LED Wall Washer Strip Light

Select Specifications:

Starting at: $31.98 $21.9831% off

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-79
$21.98
80-199
$30.06
200-999
$28.78
1,000+
$25.58
* Discounts may vary based on options above
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    Product Description:

    Flexible LED wall washer light is the newest LED product in the LED lighting market, the lighting distance is between 1m and 10m, mainly redefining its projection distance and condensing uniformity by adjusting the dual-way emitting angle of the LED source light through the secondary light distribution.

    This flexible LED wall washer lighting is with good anti-yellowing, high-temperature resistance, corrosion resistance, weak acid and alkali resistance; which also have good flexibility, the max bending angle is 180degrees, inner is packaged with the PU glue, strong adhesion, good durability, high reliability, the waterproof rating up to IP66.

    Multiple color temperature and lighting color optional: Rich colors, complete color temperature. Cooperate with the control system to achieve changes such as horse racing and running water, shooting star rear-end, chasing, etc; long light-emitting distance to meet various installation scenarios. Condensable or astigmatic, depending on the perspective of the perspective lens.

    Replacing the traditional LED wash washer light, this LED wall washer light can achieve 5m/16.4Ft, which solves the high shipping fee, suitable for government lighting projects,  indoor & outdoor environments lighting and mood lighting.

    LED Wall Washer Light Feature

        ►High-quality LED chip, long lifespan

        ►Stable and consistent light emission

        ►DC24V low voltage constant input voltage

        ►Special corner packaging treatment, stable and reliable

        ►IP66 protection level, durable

        ►Multiple installation methods can be selected

        ►Length can be customized

        ►180 degrees diameter can be bent

        ►Using for curved decorative lighting

        ►High lens; Side Emitting lighting

        ►Large beam angle; High light efficiency,

        ►High CRI; High launch height



    Standards and Certifications





    Product Specification

    Input Voltage

    24VDC

    LED Quantity

    42LEDs/m

    Color Temperature

    Single color/CCT

    Beam Angle

    30°

    Working Temperature

    -20℃~+45℃

    Power Factor

    90

    Lifespan

    50000hours

    Protection Level

    IP66 waterproof

    Working Power

    17W/m, 85W/roll

    Length

    1m/3.28Ft; 2m/6.56Ft; 5m/16.4Ft

    Maximum cascade

    10m/32.8Ft

    PCB color

    White

    Color Rendering Index

    Ra>90

    Bending Angle

    180°

    MAX wall washing height

    1.5m/4.92Ft

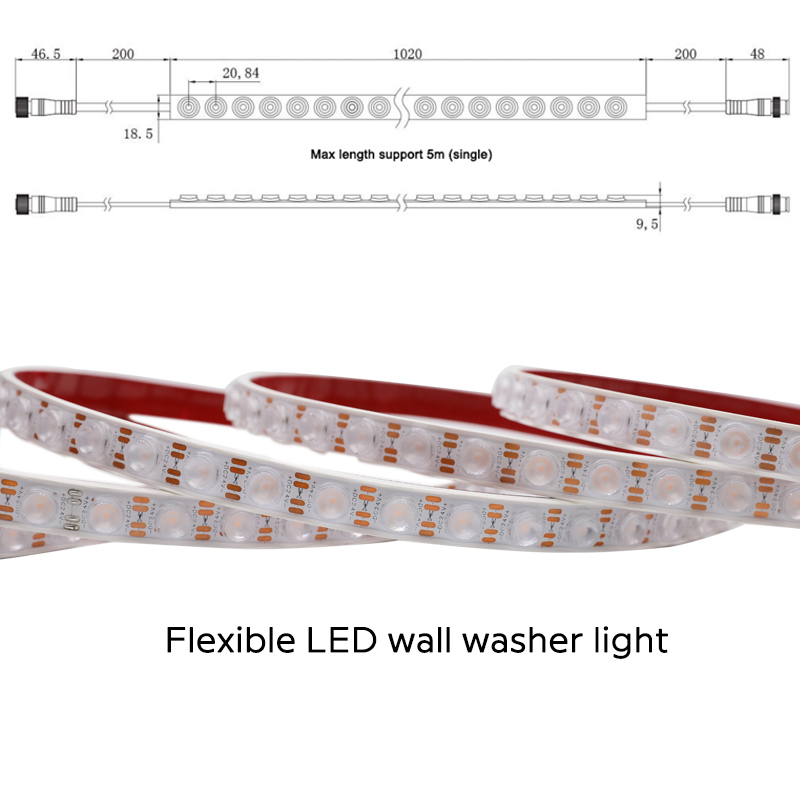

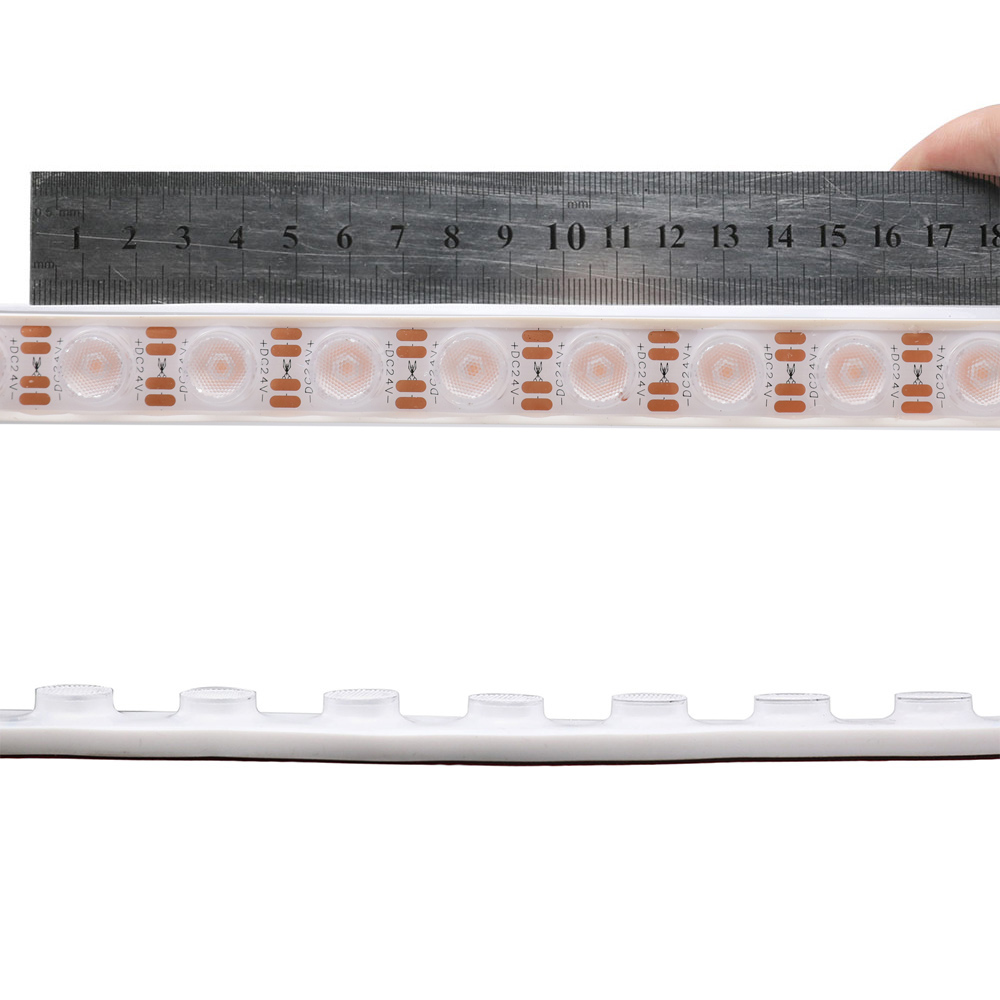

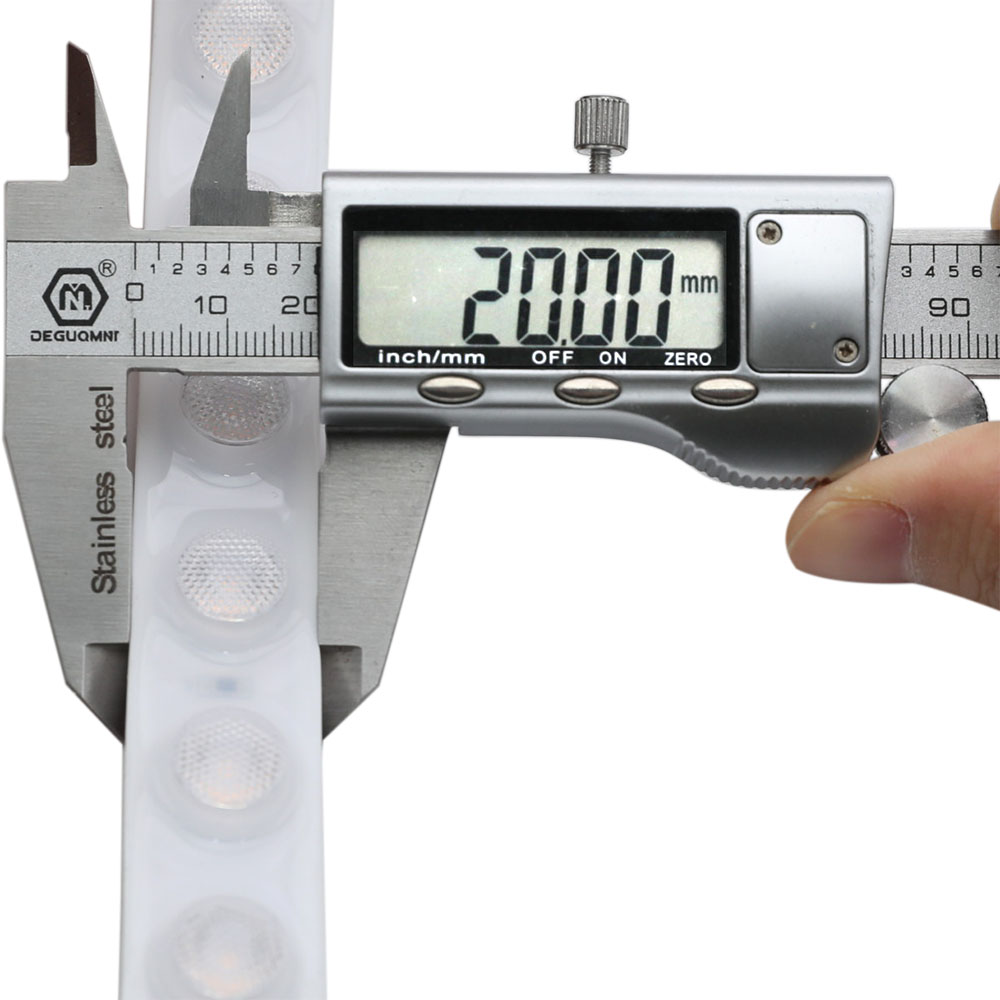

    PCB Width

    20mm/0.79in

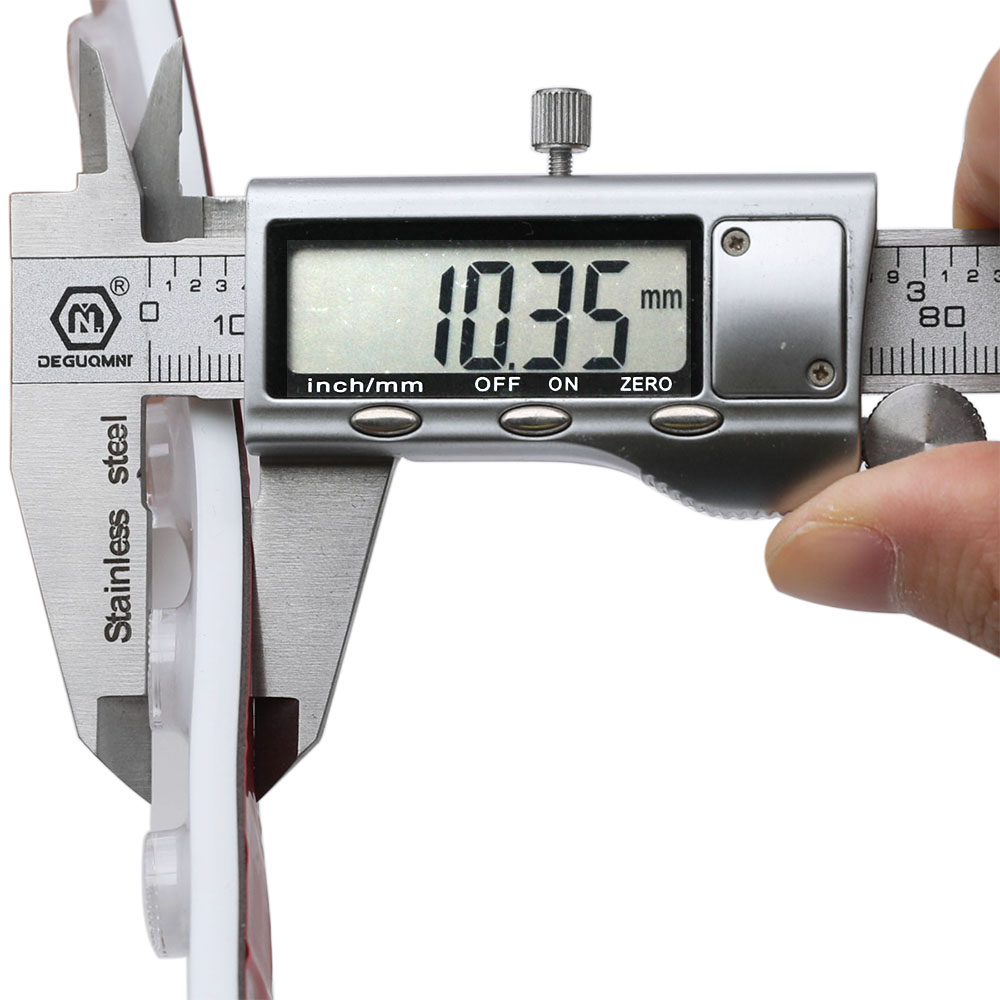

    PCB Height

    10.35mm/0.41in



    Product Detail Difference



    2700K

    3000k

    4000K

    6500K

    2700/6500K

    Color

    WW

    WW

    NW

    DW

    WW/DW

    Power(W/m)

    17W

    17W

    17W

    17W

    15W

    CRI(Ra)

    91.8

    92.5

    92.6

    92.0

    81.5

    CT(K)

    2700K

    3000k

    4000K

    6500K

    2700/6500K

    LM(lm)

    1726.1

    1551.2

    1664.7

    1528.1

    1680.1

    LED(lm/w)

    86.97

    85.77

    84.26

    86.72

    91.2

    CRI(Color Rendering Index); CT(Color Temperature); LM(Luminous flux); LE(Light effect)



    How to choose LED strip lights kit?

    You can choose the controller or power supply or controller plus power option for this COB LED strip. Of course, only the COB LED light is also completely possible. The difference is whether you need to control the LED brightness change of the COB strip and whether you can supply power to the light strip.

    In the following table, we list for you which products you will get if you choose the kit. If you have other needs, please check our product categories.

    Color Temperature Kit Knowledge
    Single Color

    Controller: V1 + RT1

    Power supply: 24V 96W power supply adapter

    How to choose led strip light controllers?

    How to calculate power for led strip lights?

    How to choose led strip light power supply?

    Tunable White

    Controller: V2+RT2

    Power supply: 24V 96W power supply adapter

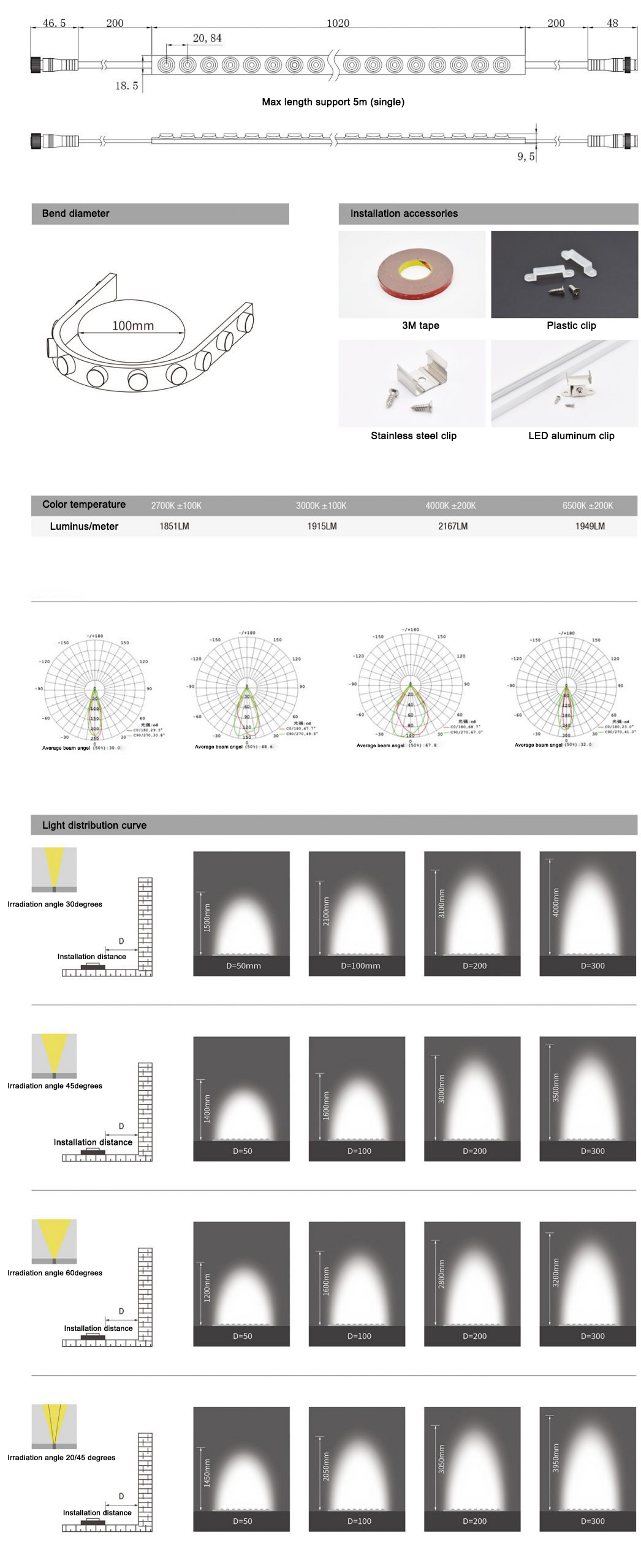

    Installation Methods

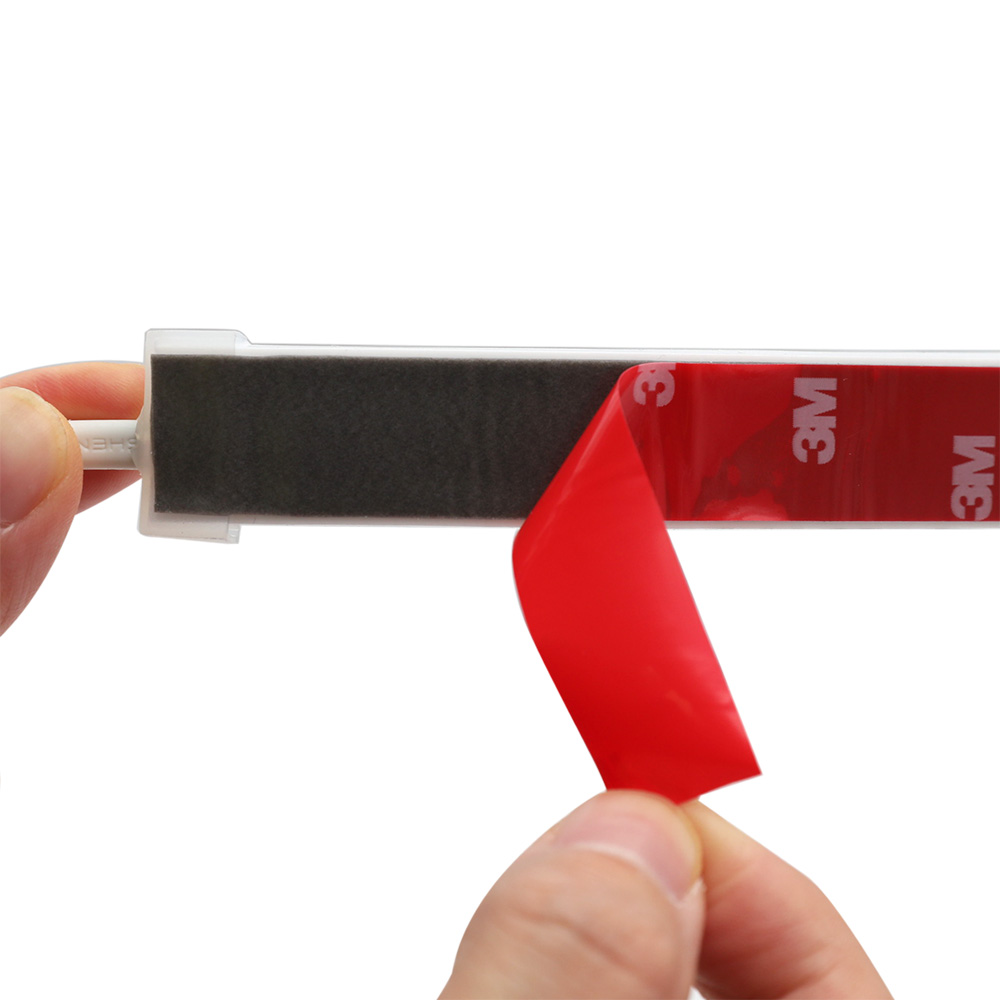

    Adhesive installation:

    Take out the lens lamp and other products from the packaging box, and remove the tape on the back.

    Install the LED wall washer light to the place where the wall needs to be washed (make sure the wall is smooth), stick firmly.

    Connect the LED light strip to the low-voltage power supply and power it on.



    Snap-in installation:

    Take out the stainless steel shrapnel and screws from the packaging box, use the screws to install the shrapnel to the place where the wall needs to be washed

    Install LED wall washer light indoor & outdoor to the place where the wall needs to be washed, and clamp the LED light body on the shrapnel to buckle firmly.

    Connect the LED strip light to the low-voltage power supply and power it on.



    Silicone buckle installation:

    Install LED wall washer lights to the place where the wall needs to be washed, take out the silicone buckle and screws, and fix it.



    Card slot installation:

    Take the product out of the box, install the accessory aluminum trough and the rotating bracket, use a screwdriver or other tools to fix the rotating bracket to the designated position

    Install LED wall washer light in the aluminum trough, press it tightly, and pull it tightly, and then buckle the aluminum trough to the rotating bracket. (According to the light-emitting angle requirements, the angle of the rotating bracket can be adjusted)

    The specific wall-washing effect is adjusted according to the needs of the scene. After the installation is complete, the product is connected to the power supply, and the power is ready.



    Connection Diagram: If you don't know how to wire the LED wall washer strip light, you can visit the following article

    How to Wire Single Color LED Strip Lights?

    How to Wire Tunable White LED Strip Light?



    Applications

        ►Bridge

        ►Building

        ►Outdoor

        ►Highway

        ►Park

        ►Stairs

        ►Festival

        ►Electronic screen
