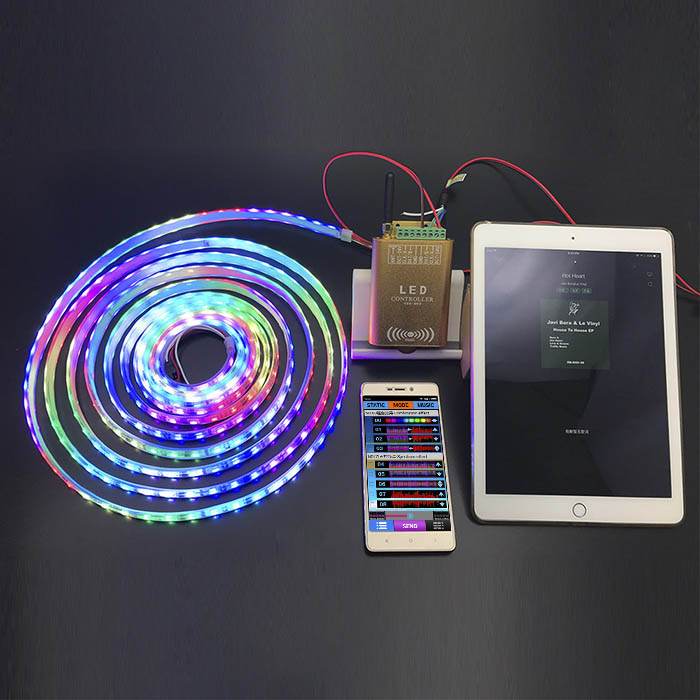

This LED-WiFi dream color music controller is following the traditional with infrared, RF technology controller foundation, it is birth of market and customer's demand, it is one type controller which integration the newest wifi technical in the market. It makes the LED control more convenience, more Substantial. We can use an Android system mobile phone to install control software, then it can control LED, this is the wishes of every customer.
Use WiFi technology can make our control range more wider, can get rid of narrow space constraint, in building can control more than 50m, in outdoor can control more than 100m.

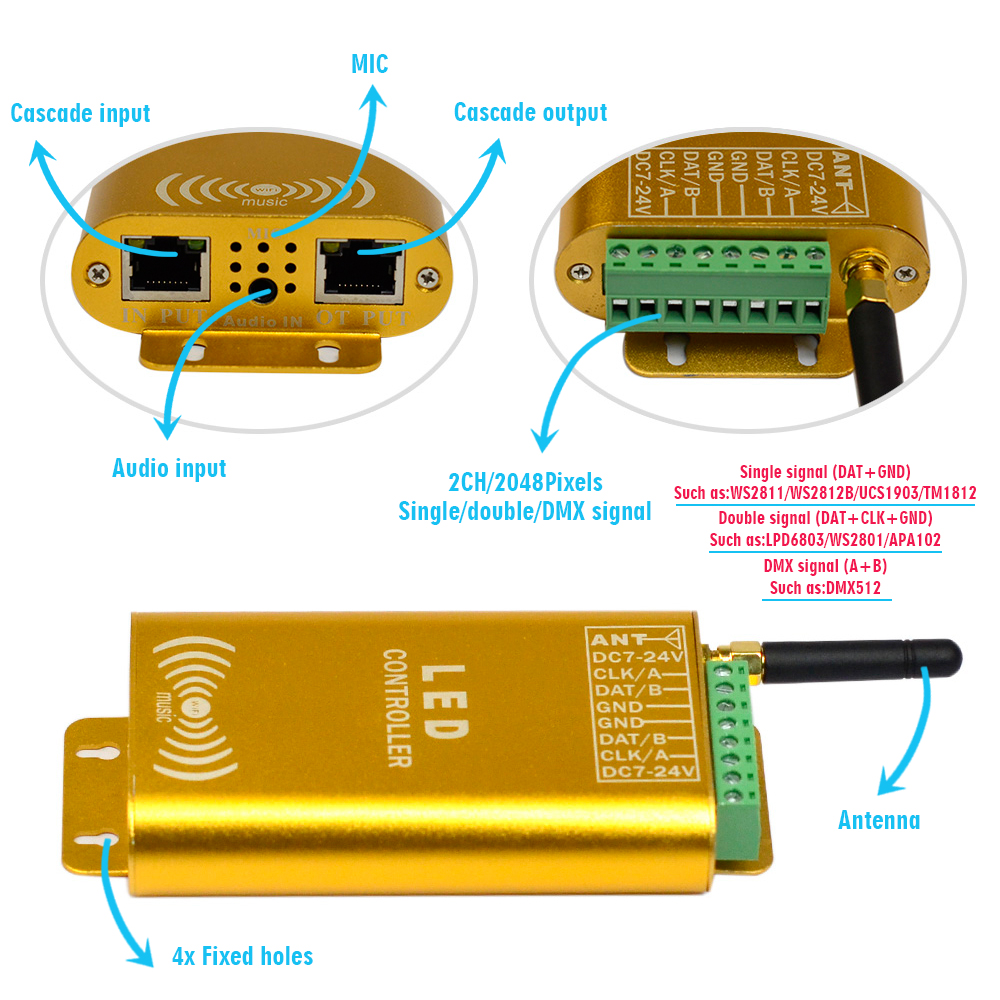

This connector structure belong to drawer structure, with 2 output channel, can be Cascaded(please use Cat 5 network cable), the device interface of power supply and LED is together, four interface one the left side GND,CLK,DATA, LAT is connect led equipment, the fifth interface is connect the anode V+ of power supply, the sixth interface is connect the cathode V- of power supply. This controller now can support 27 kinds of SPI strip in market, for DC5V/12V/24V LPD6803, TM1803, UCS1903, WS2811, WS2812B, TM1812, TM1809, WS2801, TLS3001, TLS3008, P9813, DMX512, IC dream color led strip lights or led dream color string module lights or led pixel screen or LED Guardrail Tube lights.

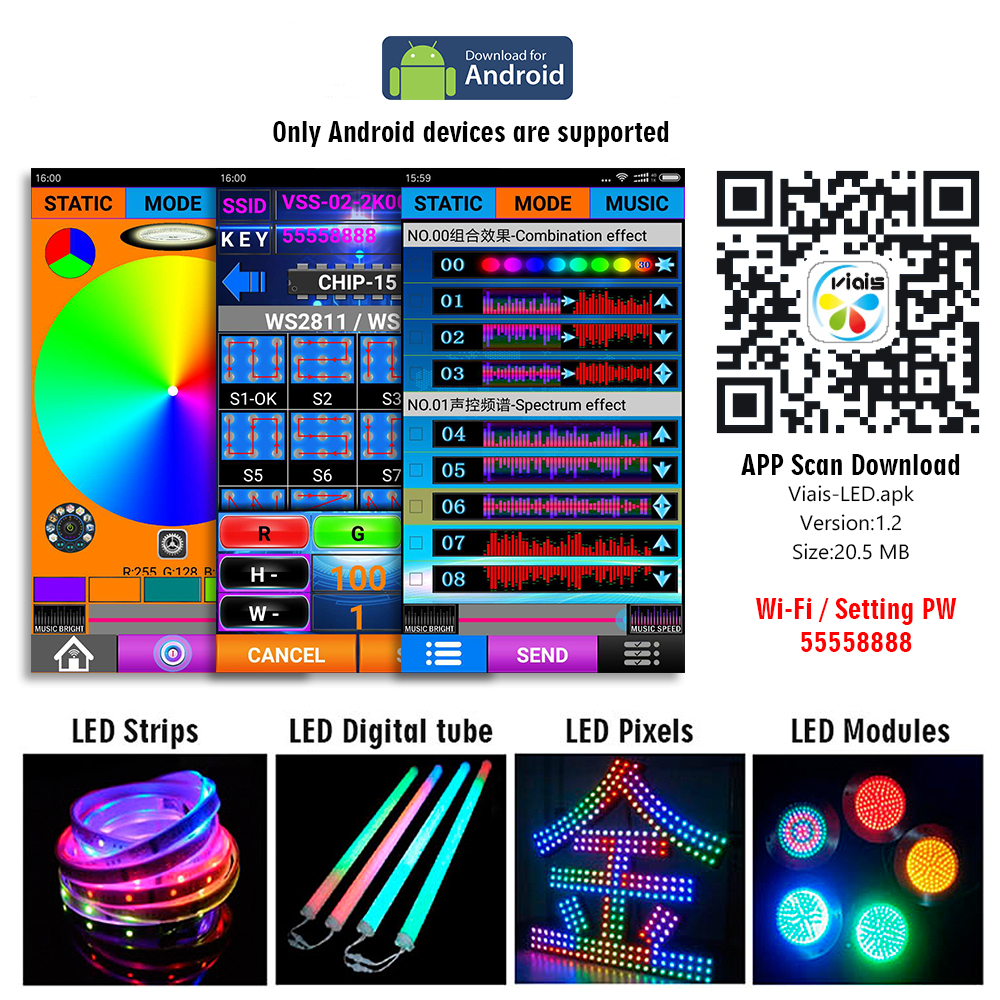

The APP built-in single color ring and you can select any color, and built-in 252 kinds of color changing and chasing modes and 6 kinds of Spectrum music modes, you can connect speakers and cell phones through a 3.5mm audio jack, If you want to learn more, please watch our test video.
APP download for Samsung device
APP download for Android device
Latest version APP Download
The new version V1.2 was released to solve the abnormal flashback of some phones or tablets when V1.0 entered the Set interface.
Viais-LED.apk - Password: 55558888
(The APP supports the latest version of Android system through our tests, but you have to make sure your phone is not tampered with by a third-party system, or the system has been developed(ROOT).)
How to make a WS2812B Addressable WiFi Music Sunshine LED Pixel Strip Light For Christmas Part Show
WS2812B 5V Flexible LED Strip Lights Test Video:
TM1812 24V Flexible LED Neon Lights Test Video:
WS2812B 5V 30LED/M LED Strip Lights, 13 x 16.4 feet Test Video
WS2812B 5V 16*16mm LED Pixel Panel. Spectrum Test Video:
WS2811 12V 50*25mm LED Pixel Panel. Spectrum Test Video:
Item Type: Dream color wifi music Controller
Size: L100mm X W50mm X H22mm
Input Voltage: DC7~24V
Can Be Control: DC5V/12V/24V Addressable LED Strips
Number of pixels: 16~2048 pixel
Speed Control: 32 adjustable
Memory: Automatic memory function
LED sequence: Arbitrarily set
Synchronous mode: wire cascade synchronization
Control mode: APP or RF315/433M
Music Control: The environment or the mobile phone music
The chip supported as below: (DC5V/12V/24V)
This controller supports all IC models

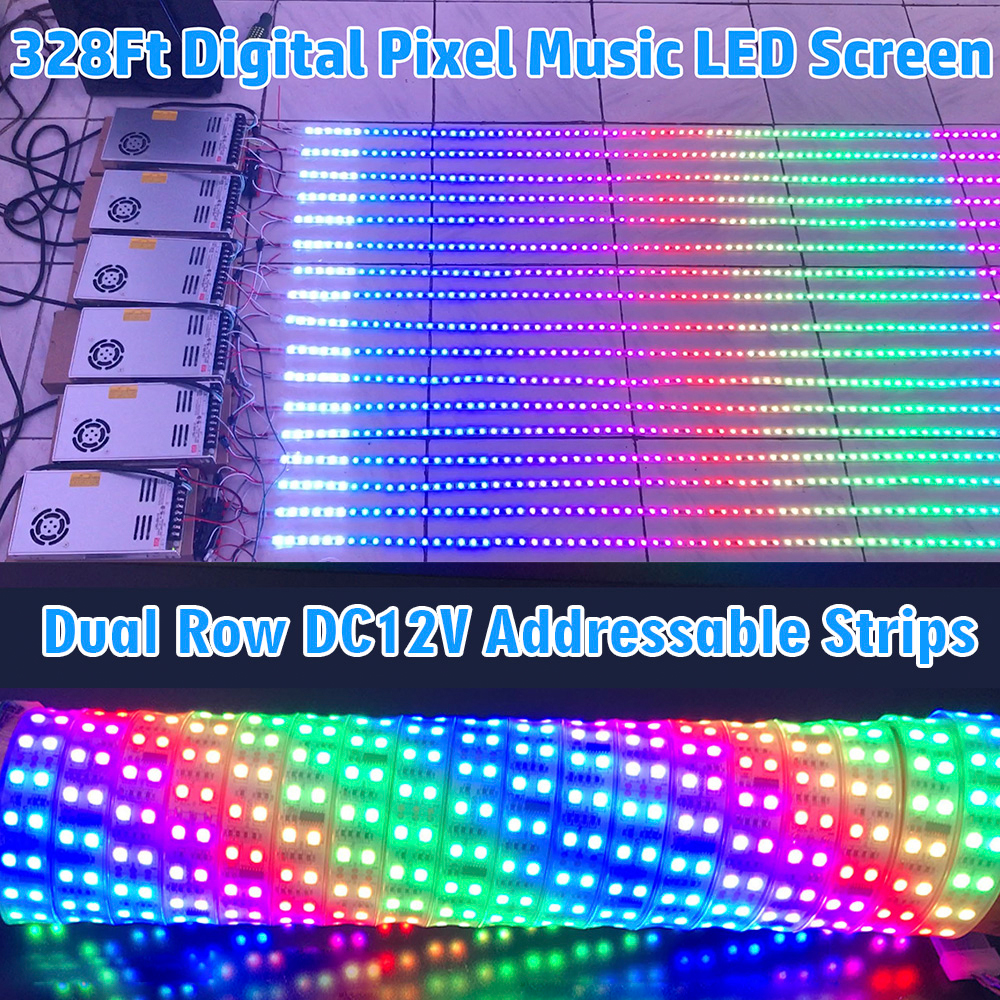

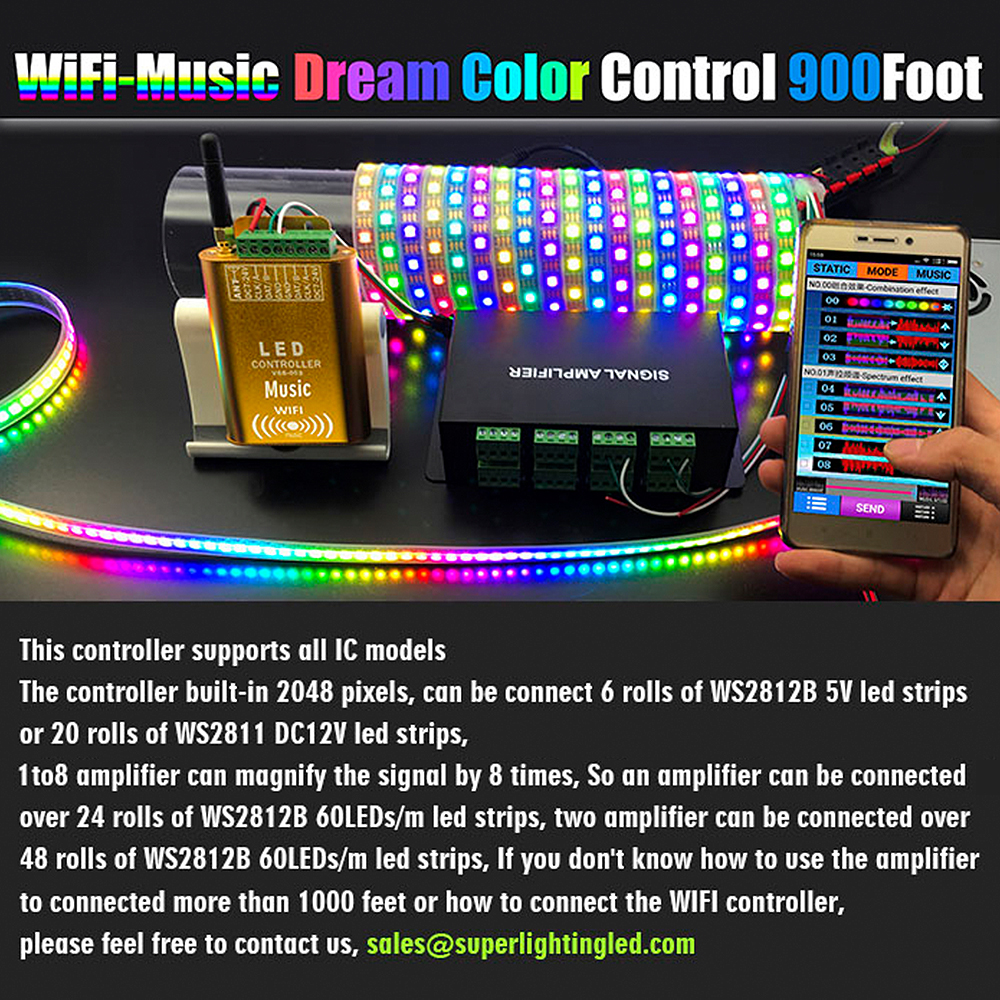

The controller built-in 2048 pixels, can be connect 6 rolls of WS2812B 5V led strips or 20 rolls of WS2811 DC12V led strips, a 1to8 amplifier can magnify the signal by 8 times,
So an amplifier can be connected over 24 rolls of WS2812B 60LEDs/m led strips,
two amplifier can be connected over 48 rolls of WS2812B 60LEDs/m led strips,
If you don't know how to use the amplifier to connected more than 1000 feet or how to connect the WIFI controller,
please feel free to contact us, firstname.lastname@example.org
How to use Amazon Alexa to Control Wi-Fi Music Controller

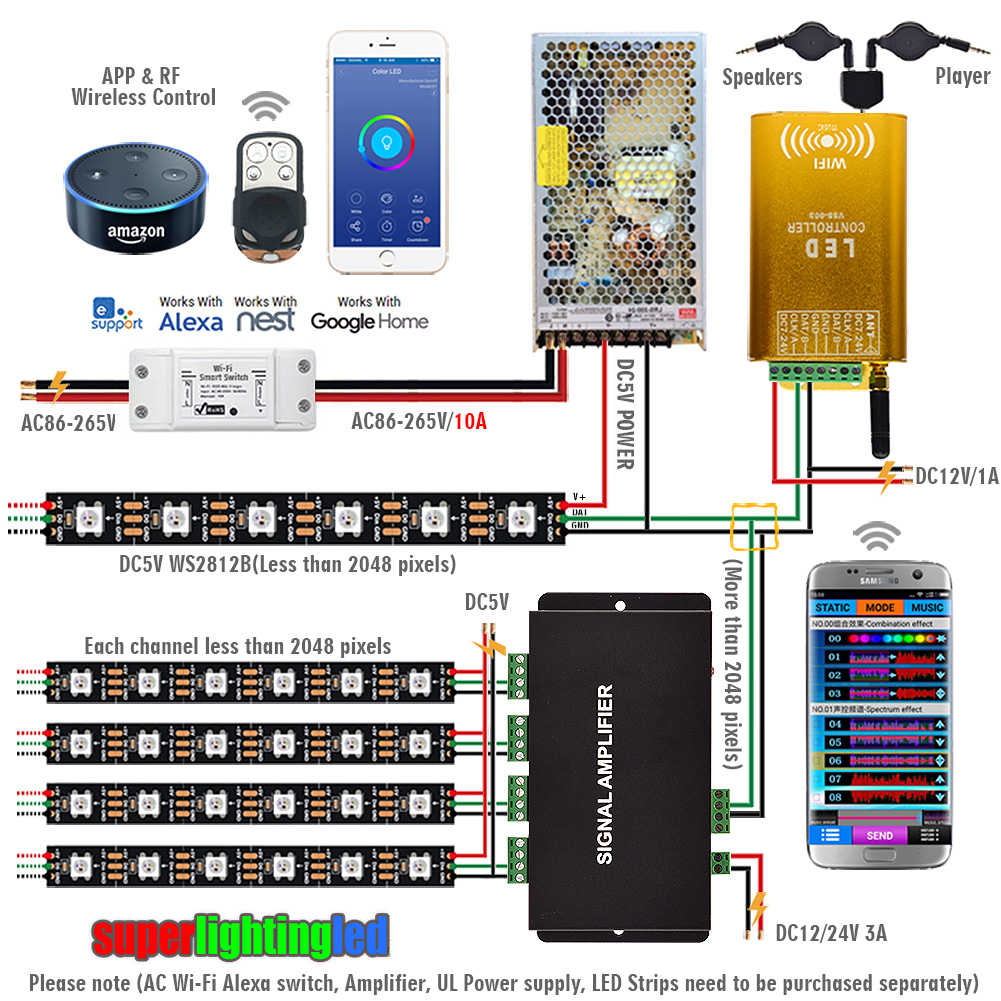

How to connect amplifier:
Signal amplifier (repeater) receives one way SPI signal, output signal Symphony 8 control group, multi-group Symphony of dream-color striplight changes in effect; and an amplifier used for signal output via SPI, the theory can be cascaded countless signal amplifier.
How to connect 3,000 foot+ WS2812B 5V LED Strips

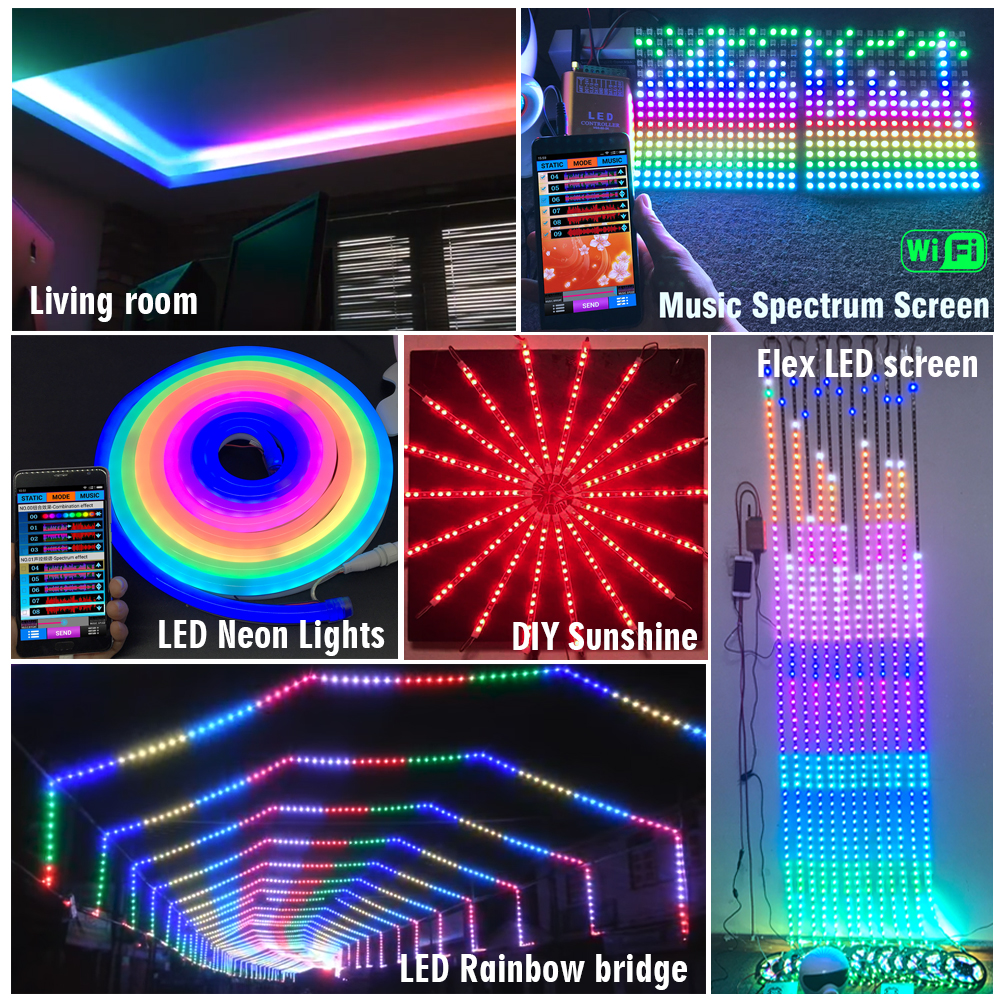

Interior Decoration: Club, bar, corridor, room, hotel, led aquarium lighting, museum, christmas, holiday, Retail LED lighting etc.
Exterior Decoration: Plaza, commercial buildings, parks, scenic spot, evening location, Sign illumination LEDs etc
Supply voltage of this product is 7~24 Volts DC, do not exceed.
Shorting output wires my cause damage to dimmer.
Always observe proper polarity when connecting power and load.
For indoor use only - this product is not waterproof or weatherproof.
QUICK and SLOW speed buttons will only work when unit is in one of the color changing (dynamic) modes.
Connect according to the Wiring Schematic drawing.
Do not exceed 80% of Power Supply capacity when calculating Power Supply size to use in your system.

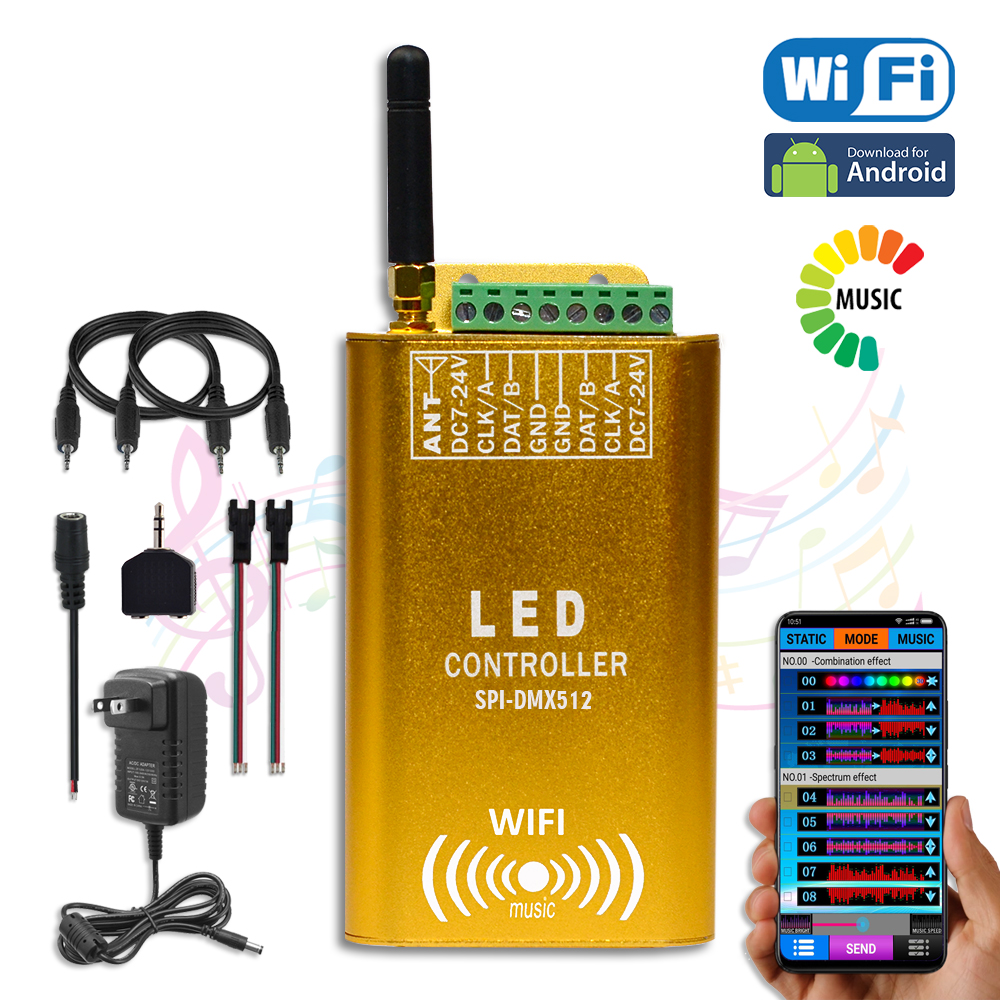

1 x led music controller
1 x 12V 1A power US adaptor
1 x 2 Wire terminals
2 x 3-pin female connectors
1 x 4-pin female connector
1 x 1 to 2 audio jack
2 x 3.28ft 3.5mm audio cable
1x DC female connector
1 x User Manual
1 x Packing box
