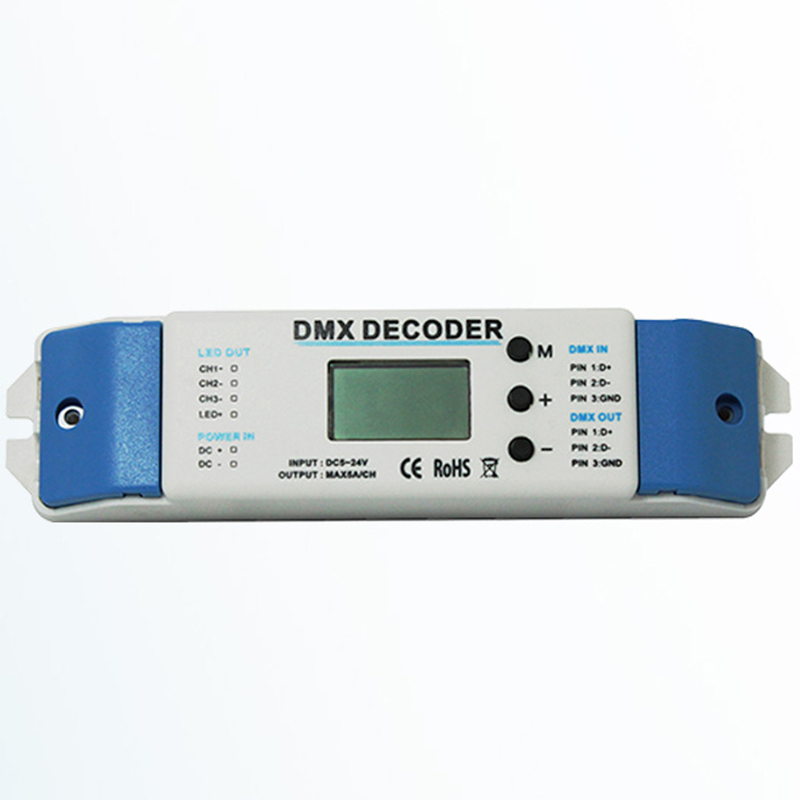

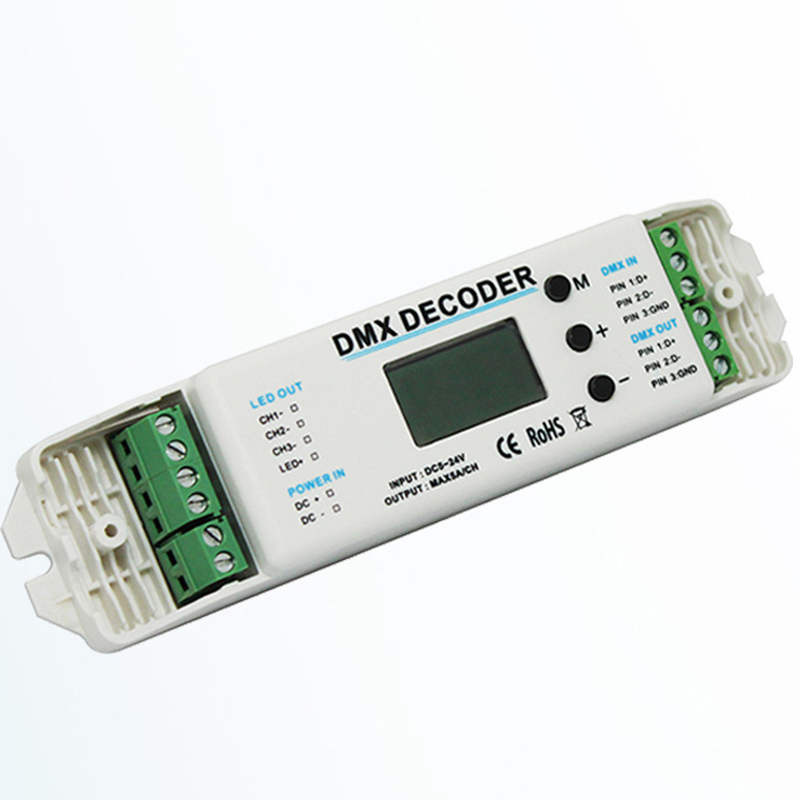

DMX102 DC5V-24V 3 Channel DMX512 Decoder

Model: DMX102
DMX102 DC5V-24V 3 Channel DMX512 Decoder
  • DMX102 DC5V-24V 3 Channel DMX512 Decoder
  • DMX102 DC5V-24V 3 Channel DMX512 Decoder

$26.98

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-19
$26.98
20-49
$25.63
50-99
$25.09
100+
$24.28
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    The DMX decoder adopts the advanced micro control unit, it receives standard DMX-512 digital control signal that is widely used in the and transform it into PWM signal to drive LED; the port of DMX signal has lightning protection measures, while the load output has over-current protection circuit; You could connect the DMX decoder with DMX digital console to achieve dimming or various changes in procedures. Not connected with DMX console, you can choose select the built-in 21 kinds of default patterns through the wireless remote control.



    Standards and Certifications

    CE FCC  RoHS ISA SGS ISO  warranty



    Technical Parameters

    Working temperature: :-20-60℃

    Input voltage: :DC5-24V

    Output:3 channels

    Connection mode: common anode

    Standby current:<0.7W

    Output current:<=5A(each channel)

    Standby power consumption:5V<25W,12V<60W,24V<120W(each channel)

    External dimension:L165×W39.5×H30.3mm

    Specifications Download   PDF



    Remote Control External Dimension





              Power & RGB Interface



             DMX IN&DMX out Interface

    POWER: input interface of power, VCC should be connected with positive of power, GND connected

    with negative of power, the range of supply voltage is DC5-24V.

    OUT PUT:load output interface,V+ should be connected with the positive of light, R, G, B connected with negative,correspond to the three channels.

    DMX IN: input interface of DMX signal, D+ should be connected with positive of signal, D- connected with negative of signal, Gnd connected with ground.

    DMX OUT:output interface of DMX signal, D+ should be connected with positive of signal, D- connected with negative of signal, Gnd connected with ground.



    Instructions for use

    The DMX decoder has three buttons

    sed to switch to built-in mode, brightness, speed or DMX address



    It is used to change the style of the built-in mode forward, brightness plus, speed plus, and DMX address plus.



    Used to change the style of the built-in mode backward, brightness minus, speed plus, and DMX address minus.



    Menu

    The DMX decoder menu includes built-in mode, brightness adjustment, speed adjustment, DMX address setting, press the mode key to switch to different menus, they correspond to the abbreviations M, B, S, D in the upper left corner of the screen.

    Under the M menu, press the plus or minus key to switch to different built-in modes, a total of 21 built-in modes.

    Under menu B, press the plus or minus key to change the brightness level, a total of 100 levels, * indicates that the current mode brightness is not adjustable.

    Under the S menu, press the plus and minus keys to change the speed level, a total of 100 levels, * indicates that the current mode speed is not adjustable.

    Under the D menu, press the plus and minus keys to adjust the DMX address, a total of 510 addresses can be adjusted.

    B, S, and D menus will automatically switch to the M menu if there is no operation for a long time.

    After accessing the DMX signal, the decoder will automatically switch to the D menu when it detects the DMX signal. At this time, the DMX address can be set, but it cannot enter the built-in mode operation. After the DMX signal is removed, it will automatically return to the built-in mode.



    DMX address code setting

    Each DMX decoder occupies 3 DMX addresses. Use the menu to set the address. Press the mode button to switch the menu to the DMX address setting. The upper left corner of the menu displays D. Press the plus and minus keys to adjust the address to the address to be decoded; Specify 510 addresses (actually 512 addresses).

    Examples:

    If the DMX start address code is set to 37, you can press the plus and minus keys to adjust D to 37. At this time, the addresses occupied by the DMX decoder are 37, 38, and 39 addresses.

     If you want to set the DMX start address code to 38, you can press the plus and minus keys to adjust D to 38. At this time, the addresses occupied by the DMX decoder are 38, 39, and 40.



    The Built-in Mode

    The DMX decoder contains 21 built-in modes, each of which has different lighting effects. Press the mode key to switch the menu to the built-in mode. The upper left corner of the menu displays M, and press the plus and minus keys to switch to a different built-in mode; for example, the menu display M 06 is currently the sixth built-in mode.

    The built-in mode way as below

    Item

    Function

    Remark

    1

    Static red

    Brightness is adjustable,speed  is unadjustable

    2

    Static green

    3

    Static blue

    4

    Static yellow

    5

    Static purple

    6

    Static cyan

    7

    Static white

    8

    red light flashing

    Brightness and speed are adjustable

    9

    Green light flashing

    10

    Blue light flashing

    11

    R/G/B Three-color jumpy changing

    12

    Yellow light flashing

    13

    Purple light flashing

    14

    Cyan light flashing

    15

    White light flashing

    16

    Seven-color jumpy change

    17

    B/R gradual changing

    Speed is adjustable,brightness

    is unadjustable



    18

    B/G gradual changing

    19

    R/G gradual changing

    20

    Three color gradual changing

    21

    Seven color gradual changing

    0

    OFF

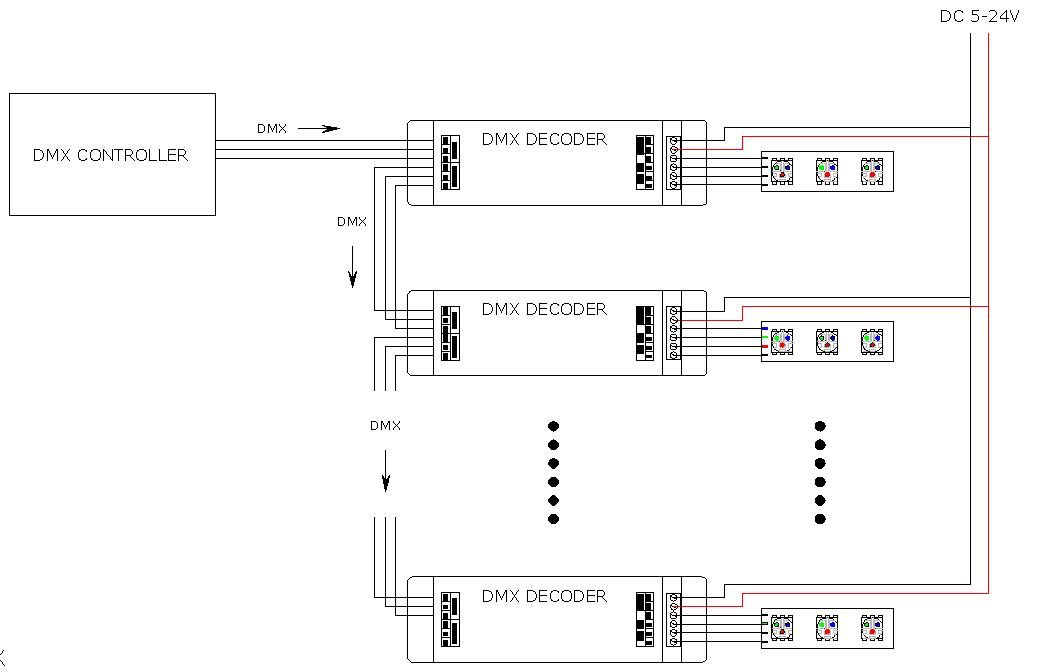

    Typical applications
