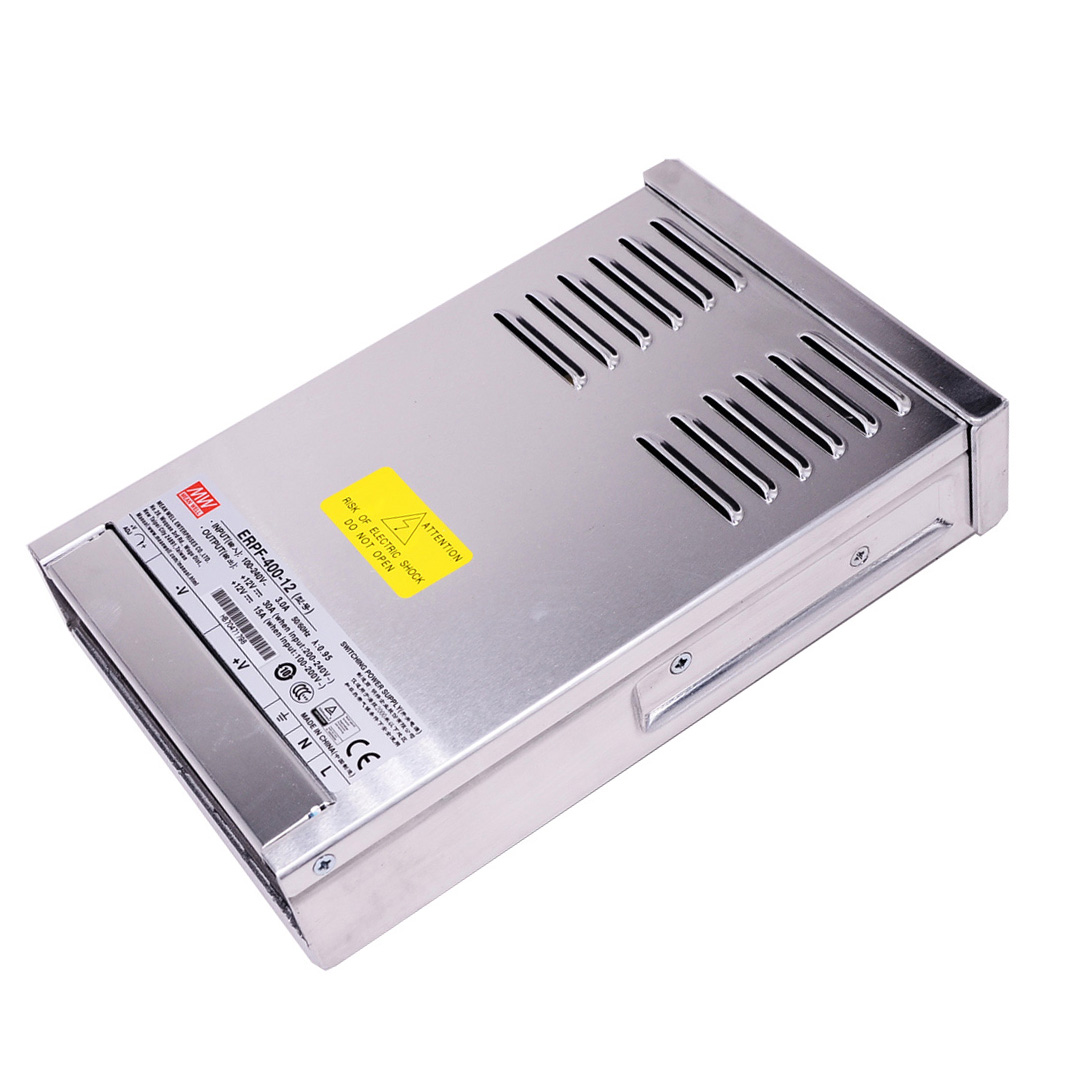

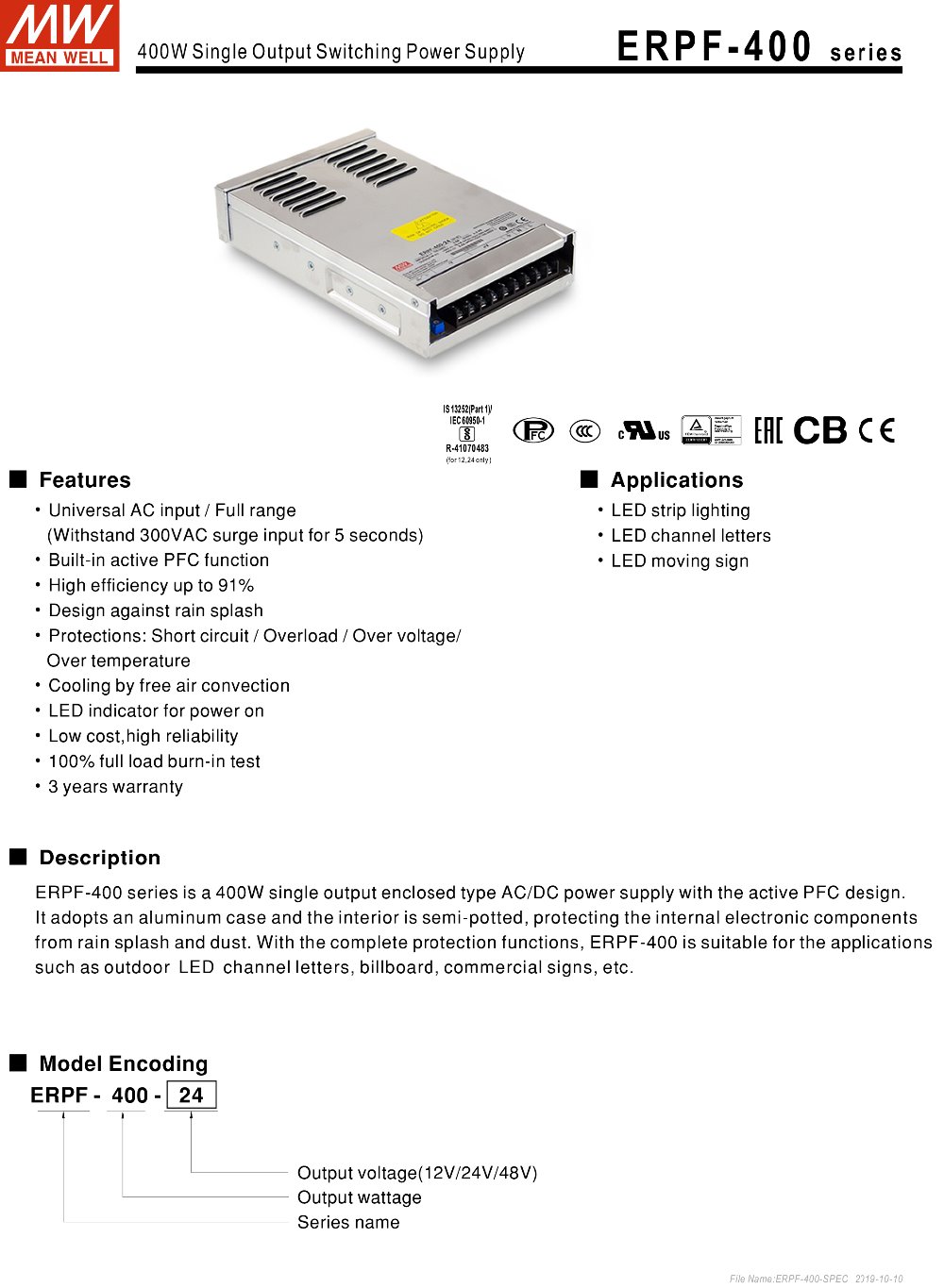

ERPF-400-12 Mean Well High-efficacy Rainproof Series DC12V 400Watt UL-Listed LED display Lighting Power Supply
Universal AC input / Full range
(Withstand 300VAC surge input for 5 seconds)
Built-in active PFC function
High efficiency up to 91%
Design against rain splash
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
LED indicator for power on
Low cost, high reliability
100% full load burn-in test
3 years warranty
When the input voltage is AC110V, the power is only half of the total power.
DC voltage: 12V
Current Rating: 30A
Current range: 0-30A
Rated power: 360W
Ripple and Noise: 150mVp-p
Voltage adjustment range: 10.8-13.2V
Voltage accuracy: ± 1.0%
Line regulation: ± 0.5%
Load regulation: ± 0.5%
Hold time: 10ms / 230VAC
Voltage range: 90 ~ 264VAC 127 ~ 370VAC
Frequency Range: 47 ~ 63Hz
AC current: 2.5A / 230VAC， 3A /115 VAC
Surge Current: 90A / 230VAC
Leakage current: <1mA / 240VAC

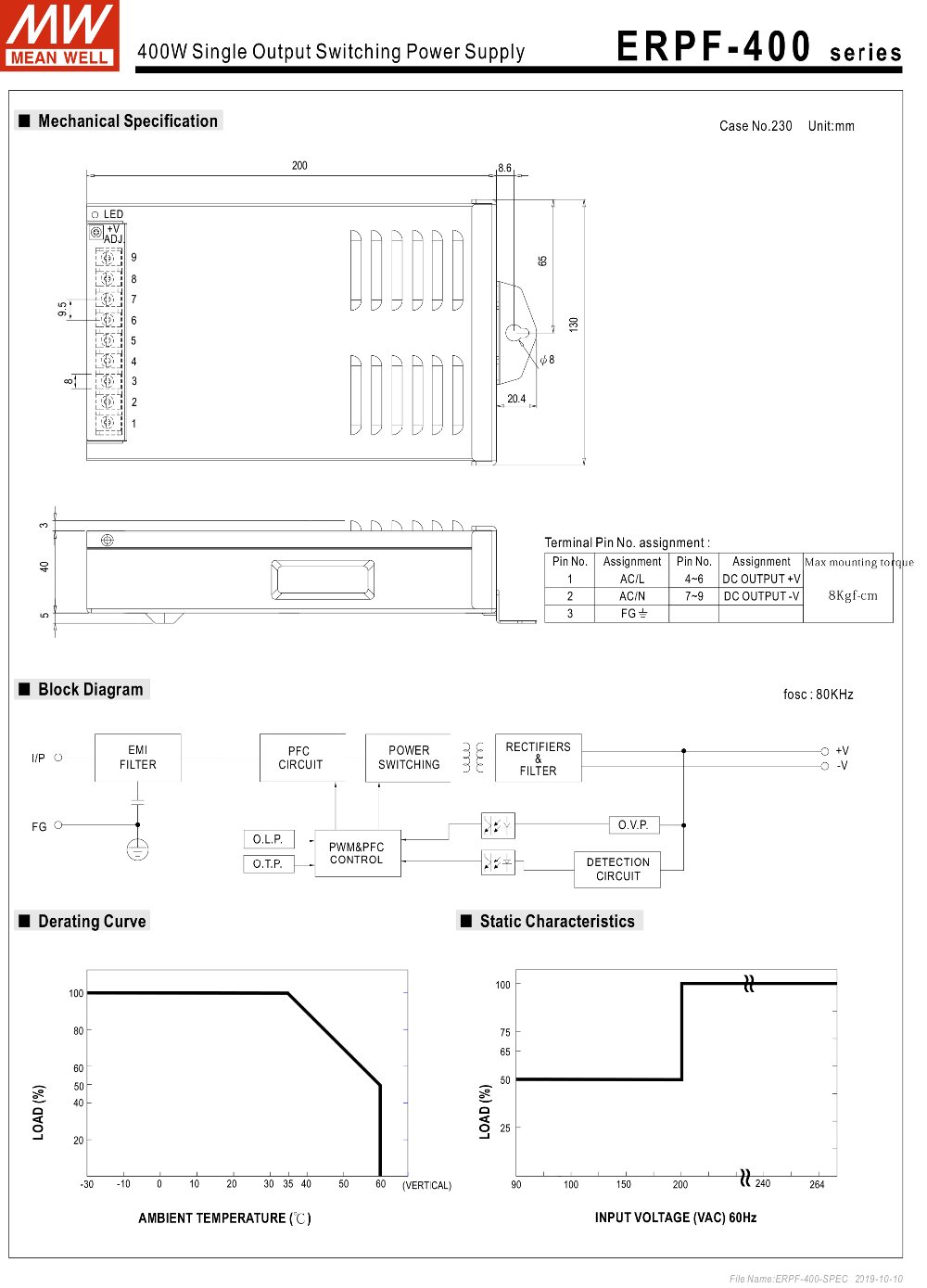

More product specification, pls see MeanWell website: https://www.meanwell.com/productSeries.aspx
