Product Information

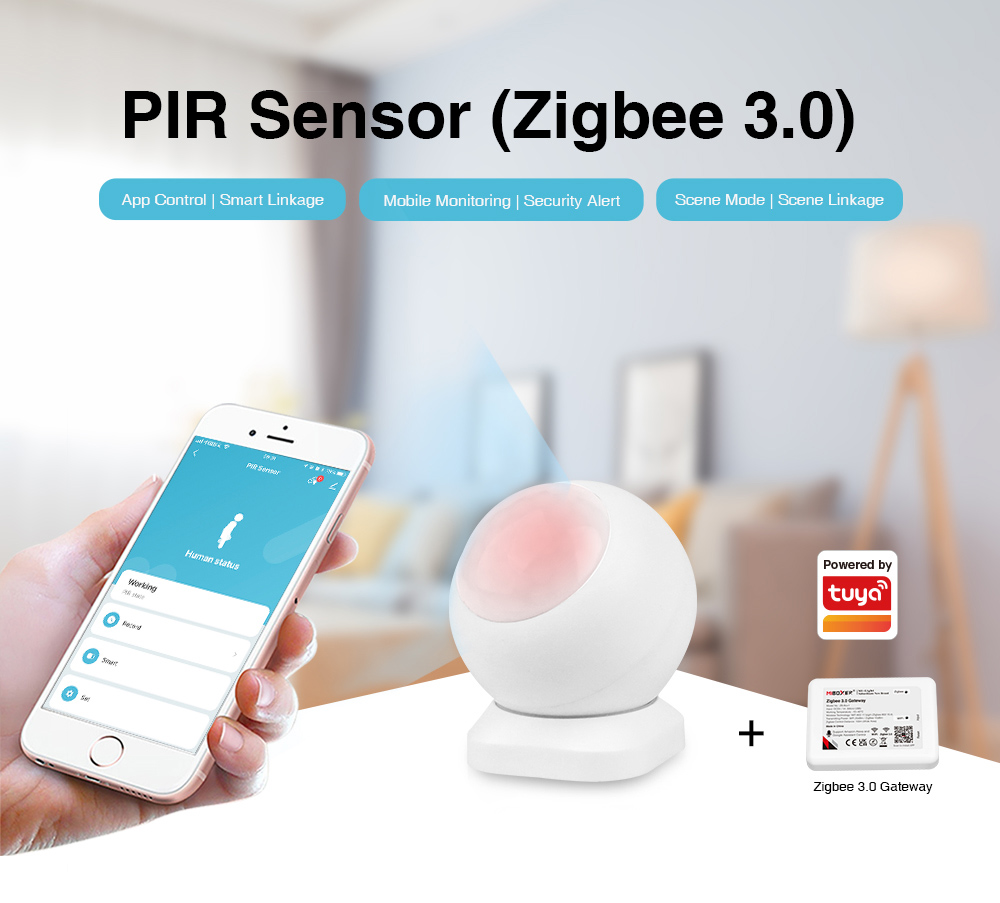

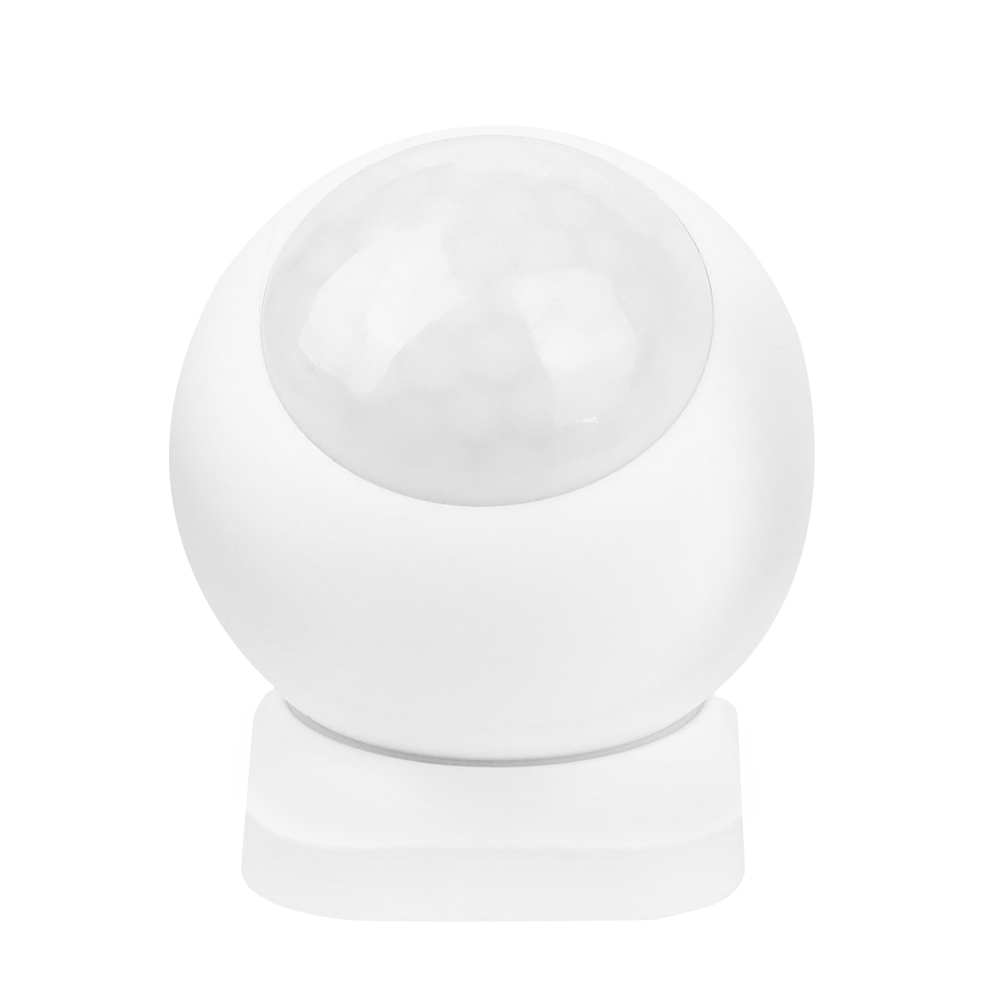

Integrate intelligent motion detection into your home with the PIR1-ZB, a compact and responsive PIR motion sensor built on the Zigbee 3.0 standard. Unlike standalone sensor lights, this device is a core component of a fully connected smart home system. By pairing it with your Zigbee gateway, you can create sophisticated automations for lighting, security, and energy management. When motion is detected, instantly trigger lights to turn on, receive security alerts on your phone, or activate complex scenes. Its wide 120° detection angle and 7-meter range provide reliable coverage for rooms, hallways, and entryways, making it an essential tool for creating a more convenient and secure living environment. This sensor is a key part of any modern LED smart controller series, acting as the trigger for your lighting designs.
Key Features
Zigbee 3.0 Standard Protocol
Ensures broad compatibility and seamless integration with a wide range of Zigbee 3.0 certified smart home hubs and devices.

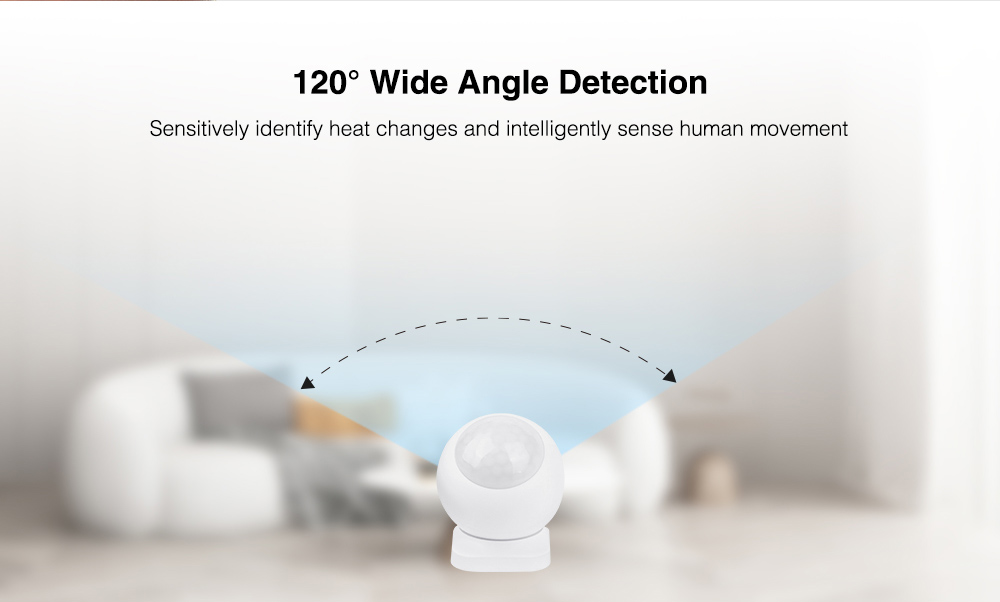

Wide-Angle Motion Detection
Monitors a large area with a 120° detection angle and a sensitive 7-meter (23 ft) range, perfect for covering entire rooms.
Instant Mobile Security Alerts
Receive real-time notifications on your smartphone when motion is detected, enhancing your home's security and peace of mind.

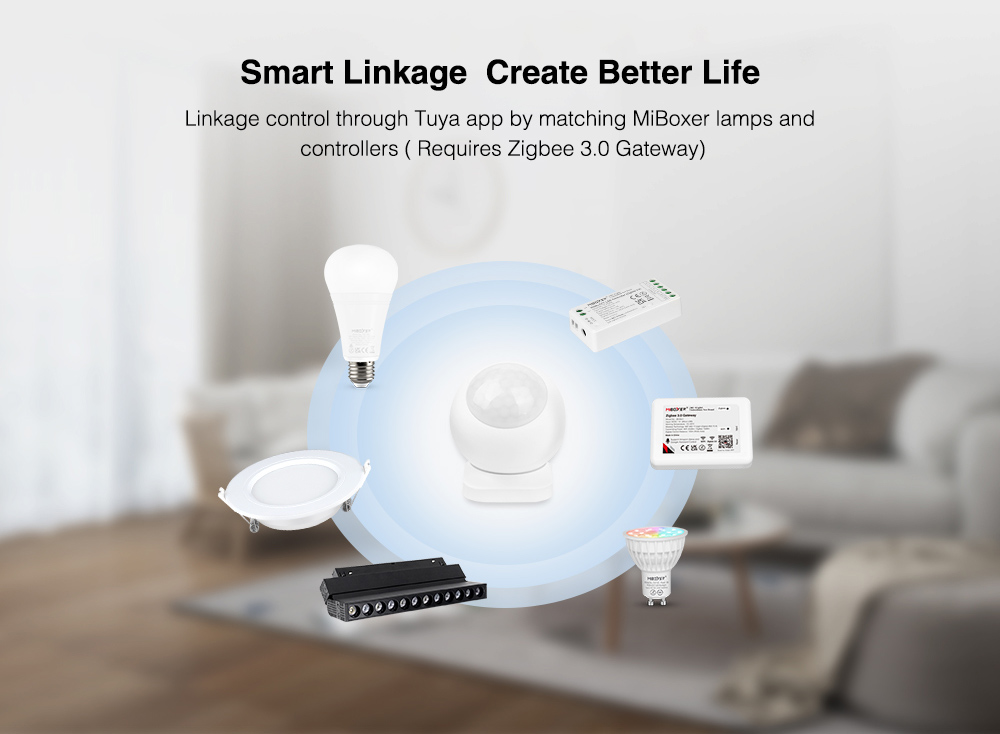

Smart Scene Linkage
Go beyond simple on/off commands. Trigger multi-device automations like a 'Welcome Home' scene that turns on lights and adjusts the thermostat.
Ultra-Low Power Consumption
Designed for efficiency with a standby power consumption of just 12μA, ensuring long battery life from a single CR123A battery.

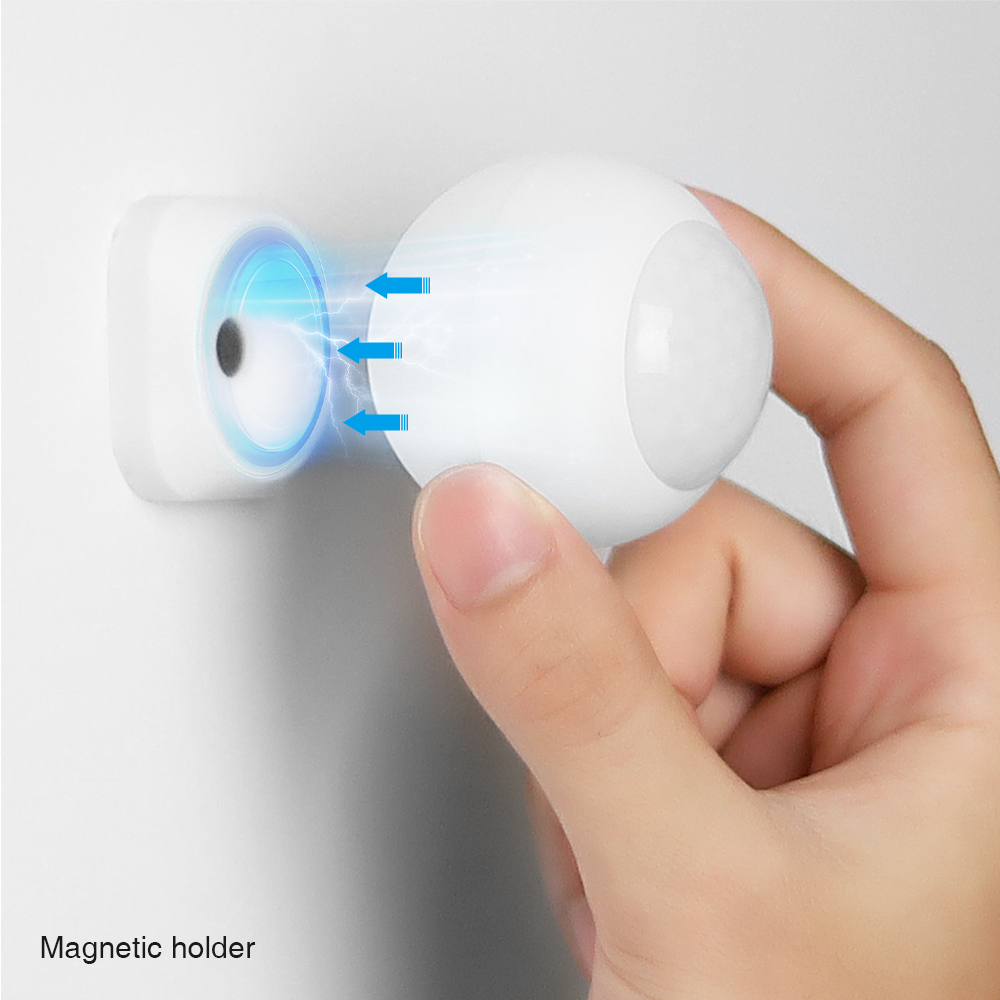

Flexible, Wireless Installation
The compact, battery-powered design allows you to place the sensor anywhere without worrying about wires, from walls to shelves.
Product Specifications
| Parameter | Details |
|---|---|
| Product Name | PIR Sensor (Zigbee 3.0) |
| Model No. | PIR1-ZB |
| Wireless Technology | Zigbee 802.15.4 |
| Battery Type | CR123A 3V |
| Standby Power Consumption | 12μA |
| Detection Angle | 120° |
| Detection Distance | 7m |
| Zigbee Control Distance | 100m (open area) |
| IP Rate | IP54 |
| Working Temperature | -10~40°C |
Application Scenarios

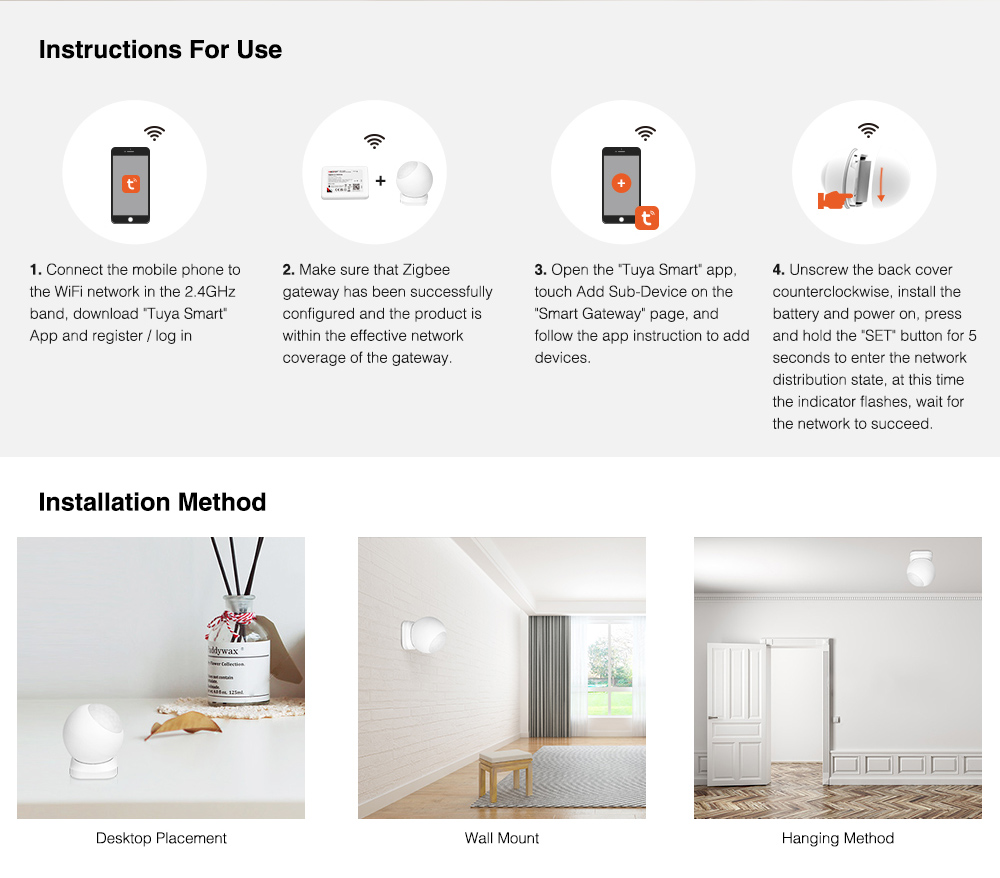

How to Install & Pair Your Zigbee PIR Sensor

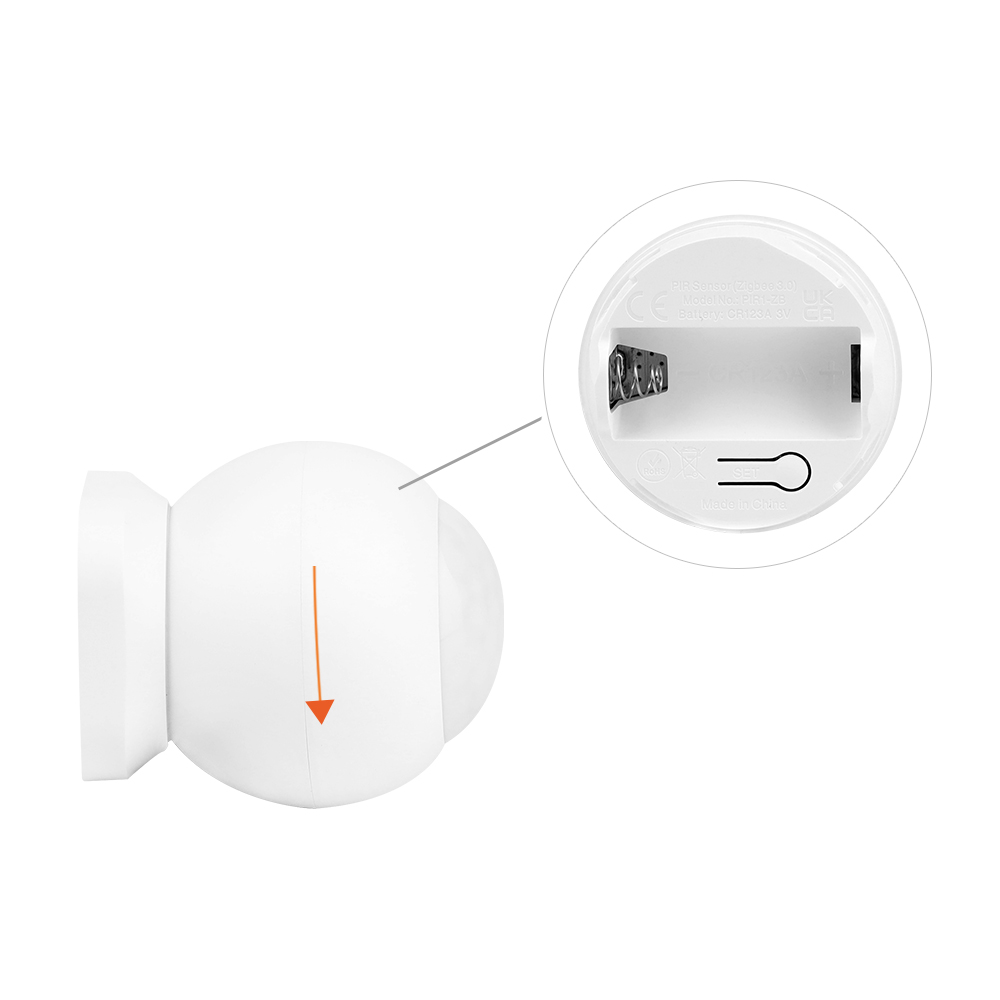

- Insert a CR123A 3V battery into the sensor's battery compartment.
- Choose a strategic mounting location. For general room coverage, place it in a corner 2-2.5 meters high. For entryways, aim it towards the door.
- Open your Zigbee hub's companion app and initiate the device pairing or discovery mode.
- Press and hold the pairing button on the PIR1-ZB sensor until its indicator light begins to flash, signaling it's ready to connect.
- Once your hub discovers the sensor, follow the in-app prompts to name it and assign it to a room.
- Create automations and routines. For example: 'IF PIR Sensor detects motion BETWEEN sunset and sunrise, THEN turn on Hallway Lights to 50% brightness'.
- A compatible Zigbee 3.0 gateway or hub is required for operation (sold separately).
- To prevent false alarms, avoid pointing the sensor directly at heat sources such as air conditioners, heaters, direct sunlight, or reflective surfaces.
- The 100m wireless range is rated for open areas. Walls, furniture, and other obstructions will reduce the effective communication distance to the hub.

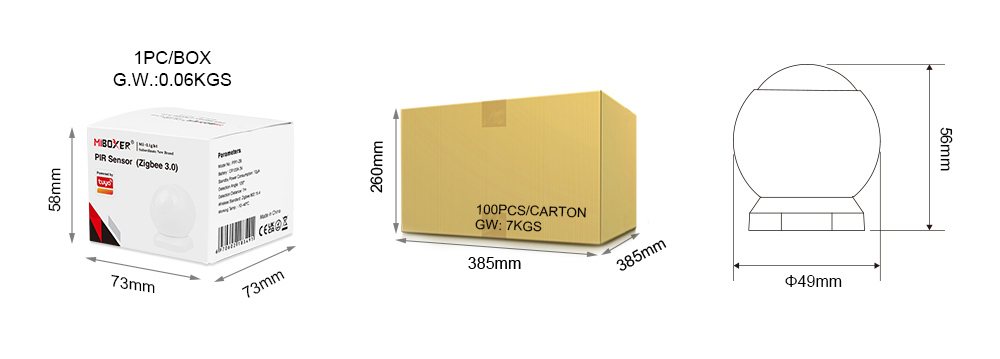

What's in the Box
- ✓1 x PIR1-ZB Zigbee 3.0 PIR Sensor

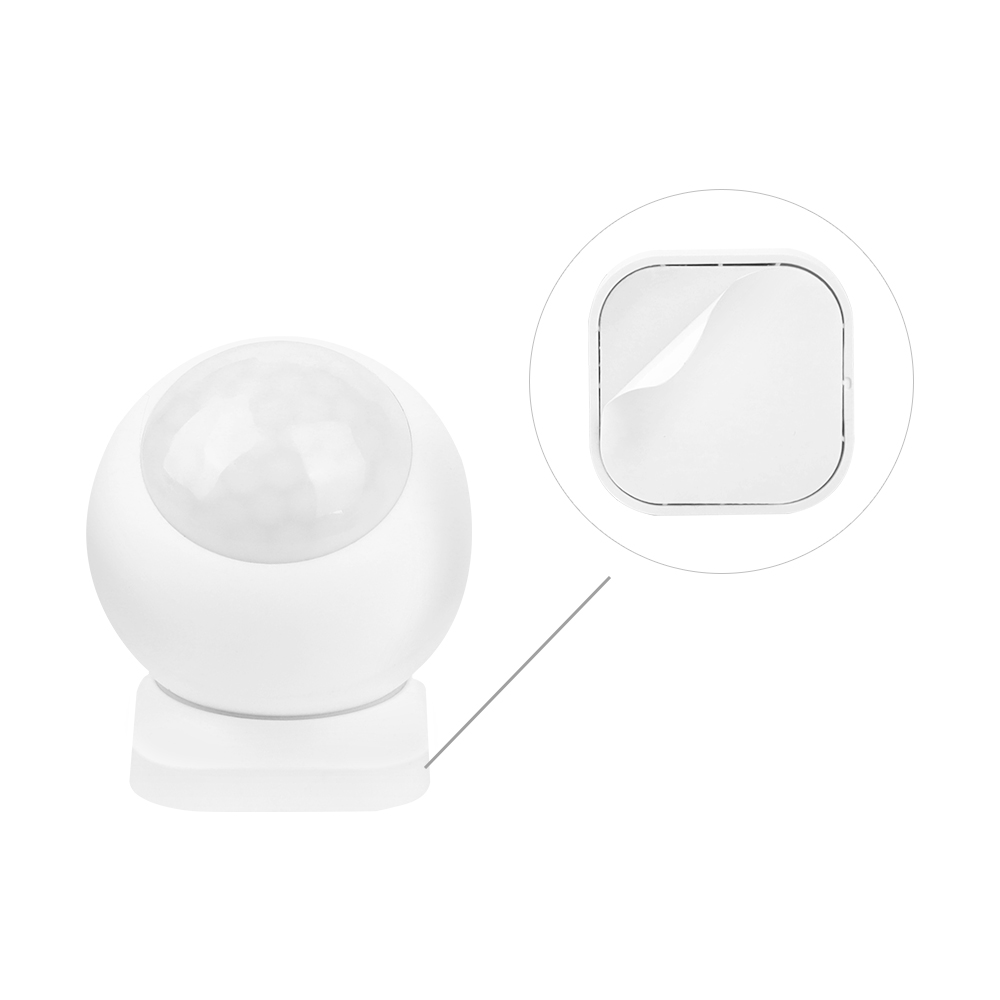

- ✓1 x Mounting Bracket with Adhesive
- ✓1 x User Manual
Frequently Asked Questions
Q: Do I need a specific hub for this PIR motion sensor?
A:Yes, this sensor operates on the Zigbee 3.0 protocol and requires a compatible Zigbee 3.0 gateway or hub to connect to your smart home network.
Q: Can this sensor control my existing, non-smart lights?
A:Not directly. To control standard lights, you must link this sensor via your Zigbee hub to other smart devices, such as smart bulbs, smart plugs, or in-wall smart switches.
Q: What is the typical battery life?
A:Thanks to its extremely low standby power usage (12μA), a single CR123A battery can last for over a year, though this varies with the frequency of motion detection.
Q: Can I use this motion sensor light switch outdoors?
A:The sensor is IP54 rated, protecting it against dust and water splashes. It is suitable for covered outdoor areas like porches or carports but should not be exposed to direct rain or submersion.
Q: What is the maximum detection distance?
A:The sensor can reliably detect motion up to 7 meters (approximately 23 feet) away within its 120-degree field of view.
Q: How is this different from an all-in-one motion sensor night light?
A:A standard motion night light is a single, self-contained device. The PIR1-ZB is a smart component that integrates into your entire smart home system, allowing you to control any linked device, receive phone alerts, and create complex automations.
