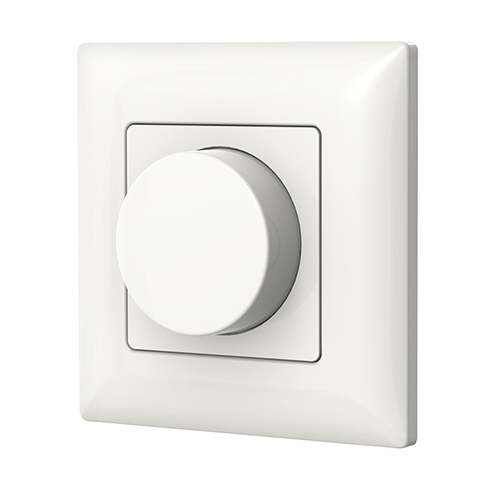

Rotary Panel Constant Voltage LED Dimmer KV For white led strip lights
Rotary panel constant voltage or constant current LED dimmer, can also be used as dimming RF remote.
Rotate knob to change brightness, support push and long push operation.
Smooth dimming and switch without any flickering.
Great compatibility with a variety of dimming RF remote.
Adopt 2.4GHz wireless technology, remote distance up to 30m, one dimmer can accept up to 10 remote control.
Work with WiFi-relay controller after install APP on IOS and Android system.

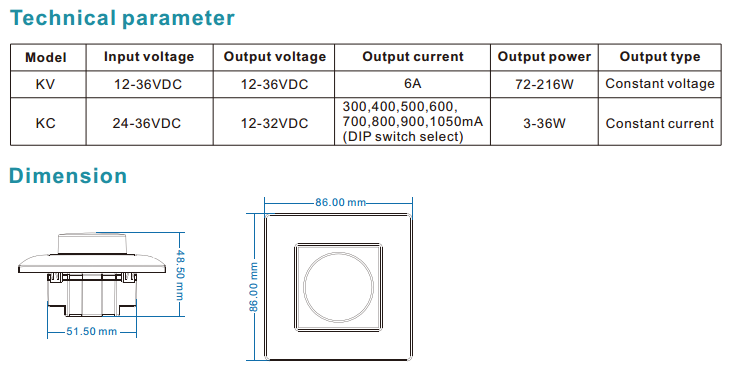

Standards and Certifications
Working voltage: 12-36VDC
Output type: PWM constant voltage
Output current: 6A
Output power : 12V<72W, 24V<144W,36V<216W,48V<288W
Grey levels: 4096
Dimming range: 0-100%
Remote distance: 30m
Work temperature: -30℃~55℃
Product size: L87×W87×H50mm
Net weight: 78g
