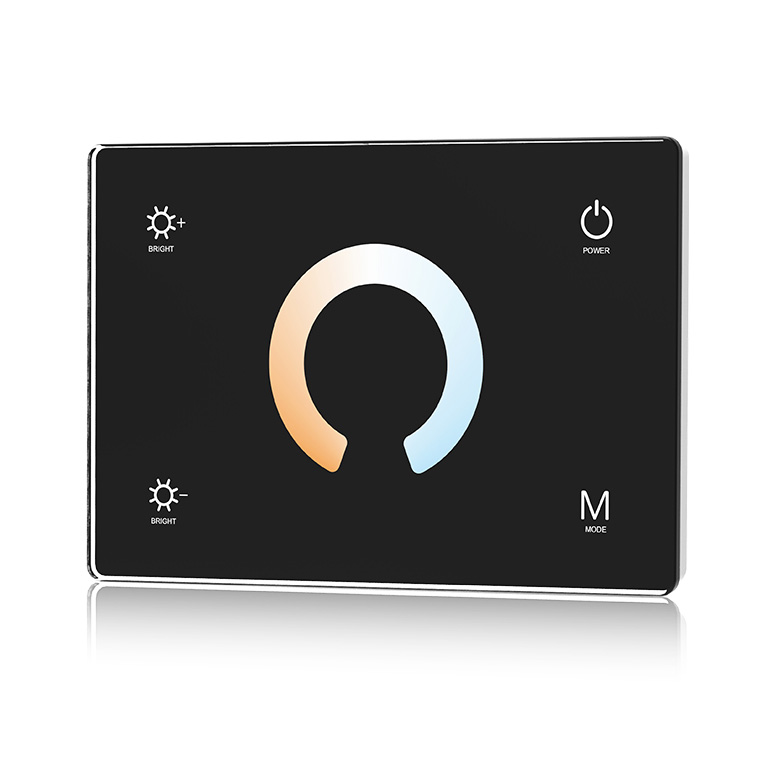

T2(IT) 4CH*3A 12-24VDC Constant Voltage Tunable White Touch LED Wall Panel Controller
DC12-24V 4 channel constant voltage Harding-wire tunable white touch LED wall panel controller; brightness and speed adjustable, single channel max output 3A, the output power is 144-288W; output PWM signal, compatible with Skydance series RF CCT remote controller suitable for dimmable White indoor lighting project.
● Touch panel single color, dual color, RGB or RGBW PWM constant voltage controller.
● Ultra sensitive high strength glass touch panel with touch color wheel in the middle and backlighting.
● Smooth and accurate color adjustment by touching the color slide.
● Adopt 2.4GHz wireless technology, remote distance up to 30m.
● Touch keys with chord tones and LED indicator.
Use power-up to match the touch panel dimmer with the RF remote (optional).
1. Match: Switch off the power, then switch on power again,
short press on/off key or zone key 3 times on the RF remote quickly within 5s after power on,
the link is done once the light blinks 3 times.
2. Delete: Switch off the power, then switch on power again,
short press on/off key or zone key 5 times on the RF remote quickly within 5s after power on,
the unlink is done once the light blinks 5 times.
3. Multiple zone remote only use zone key to match each zone receiver.
Standards and Certifications
How to Wire the LED wall panel controller to LED strip light?
