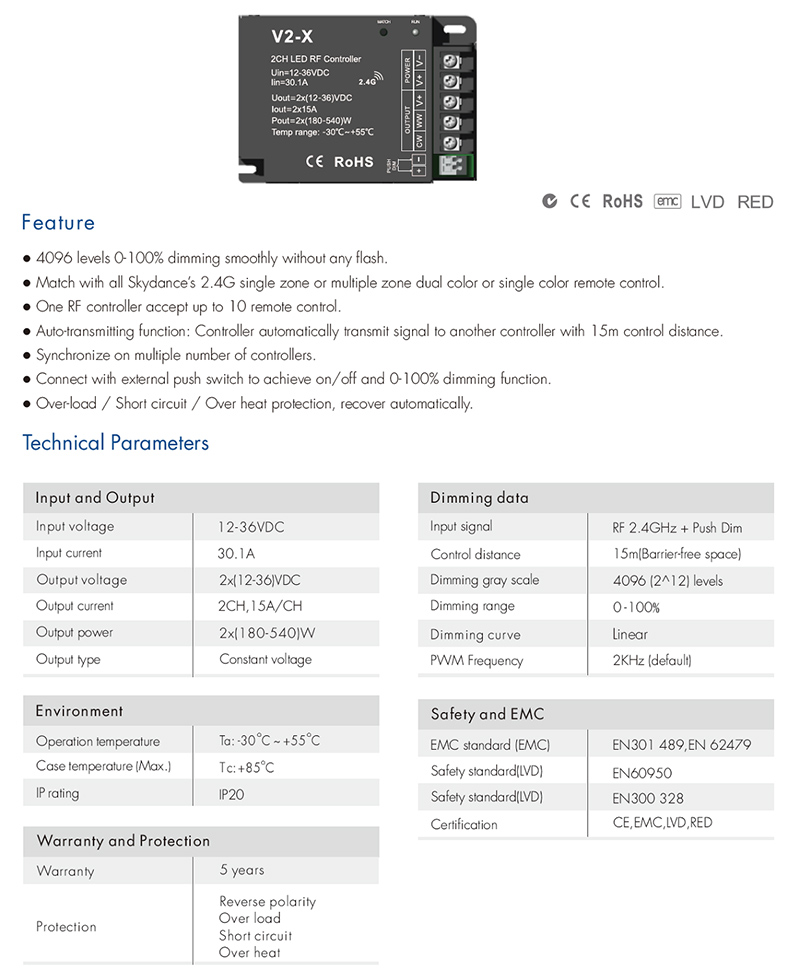

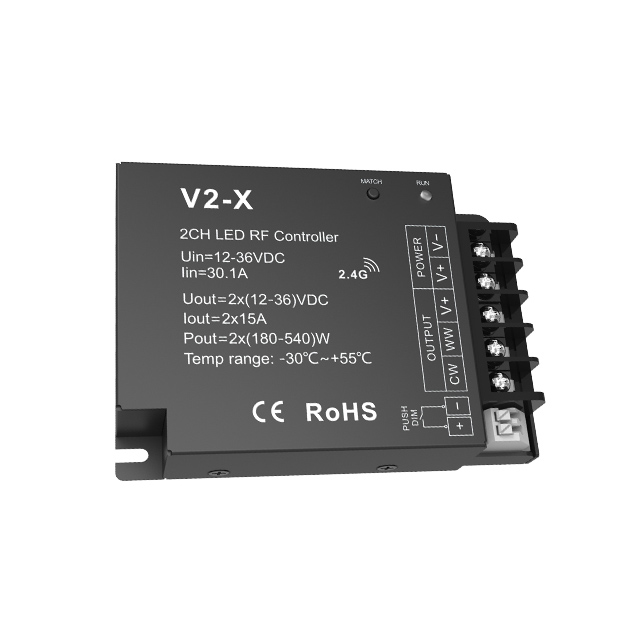

2CH*15A 12-36VDC CV Controller V2-X
4096 levels 0-100% dimming smoothy without any flash.
Match with all SkyDANCE's 2.4G single zone or multipe zone dual color or single color remote control.
One RF controller accept up to 10 remote control.
Auto-transmitting function: Controller automatically transmit singal to another controller with 10m control distance.
Synchronize on multiple number of controllers.

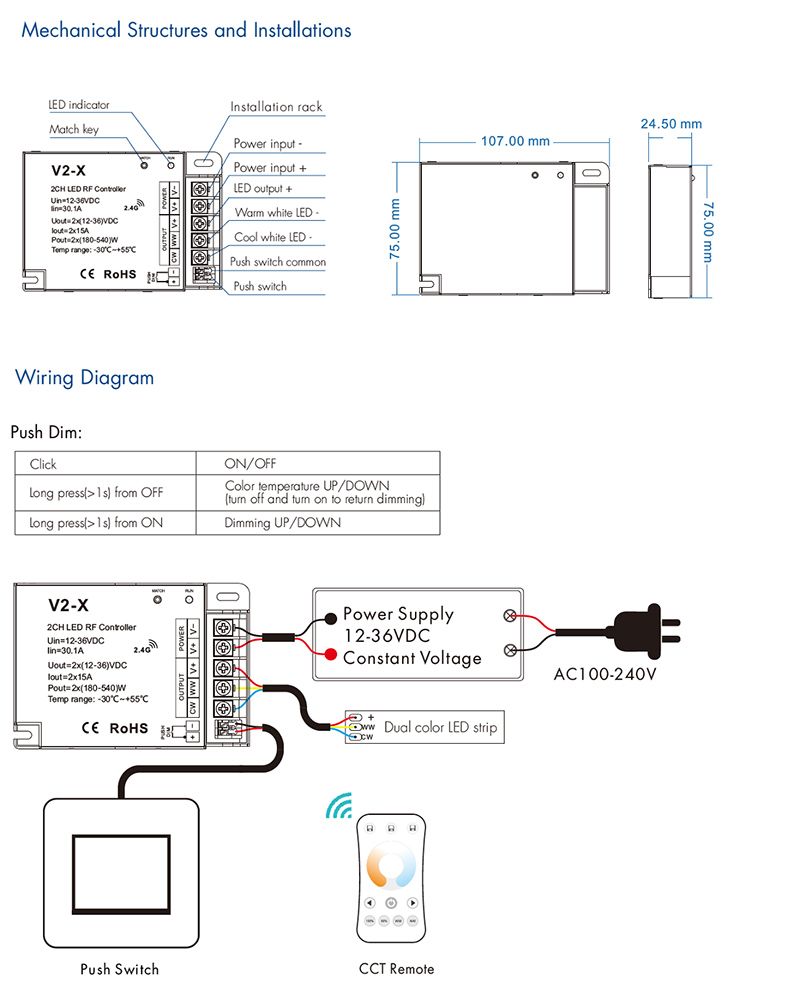

Connect with external push switch to achieve on/off and 0-100% dimming function.
Over-load/short circuit/Over heat protection,recover automatically.
Output voltage: 2*(12-36)VDC
Output current: 2CH,15A/CH
Output power: 2*(180-540)W
Output type: Constant voltage
Safety and EMC
EMC standard (EMC): EN301 489,EN 62479
Safety standard(LVD): EN6095O
Radio Equipment(RED): EN300328
Certification: CE,EMC,LVD, ,RED
Operation temperature: Ta: -30C~+55"C
Case temperature (Max.): Tc:+85"C
IP rating: IP20
Input signal: RF 2 4GHz + Push Dim
Control distance: 15m(Barrier-free space)
Dimming gray scale: 4096 (2^12) levels
Dimming range: 0-100%
Dimming curve: linear
Warranty and Protection
Protection：Reverse polarity Over-heat Over-load Short circuit
