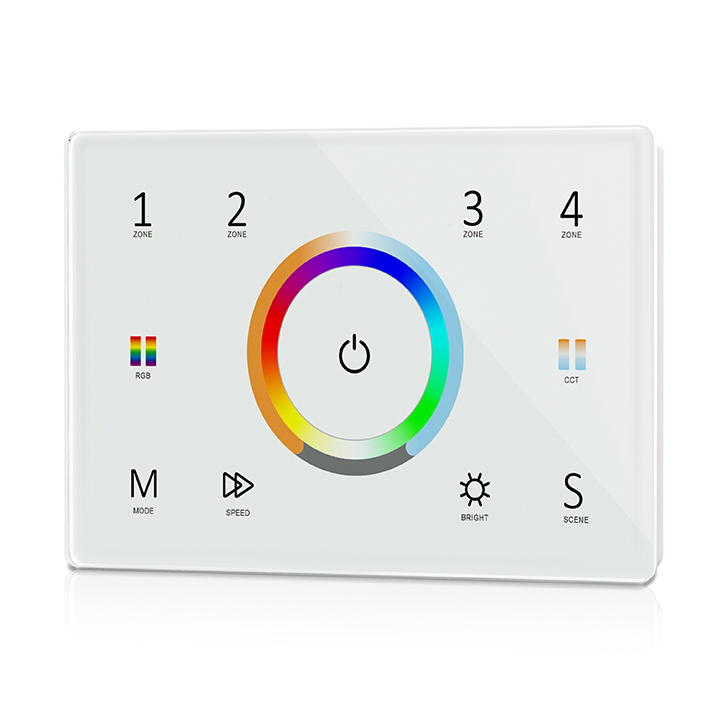

100-240VAC 4 Zones DMX512 RF 2.4GHz Wall Mounted Touch Panel Controller

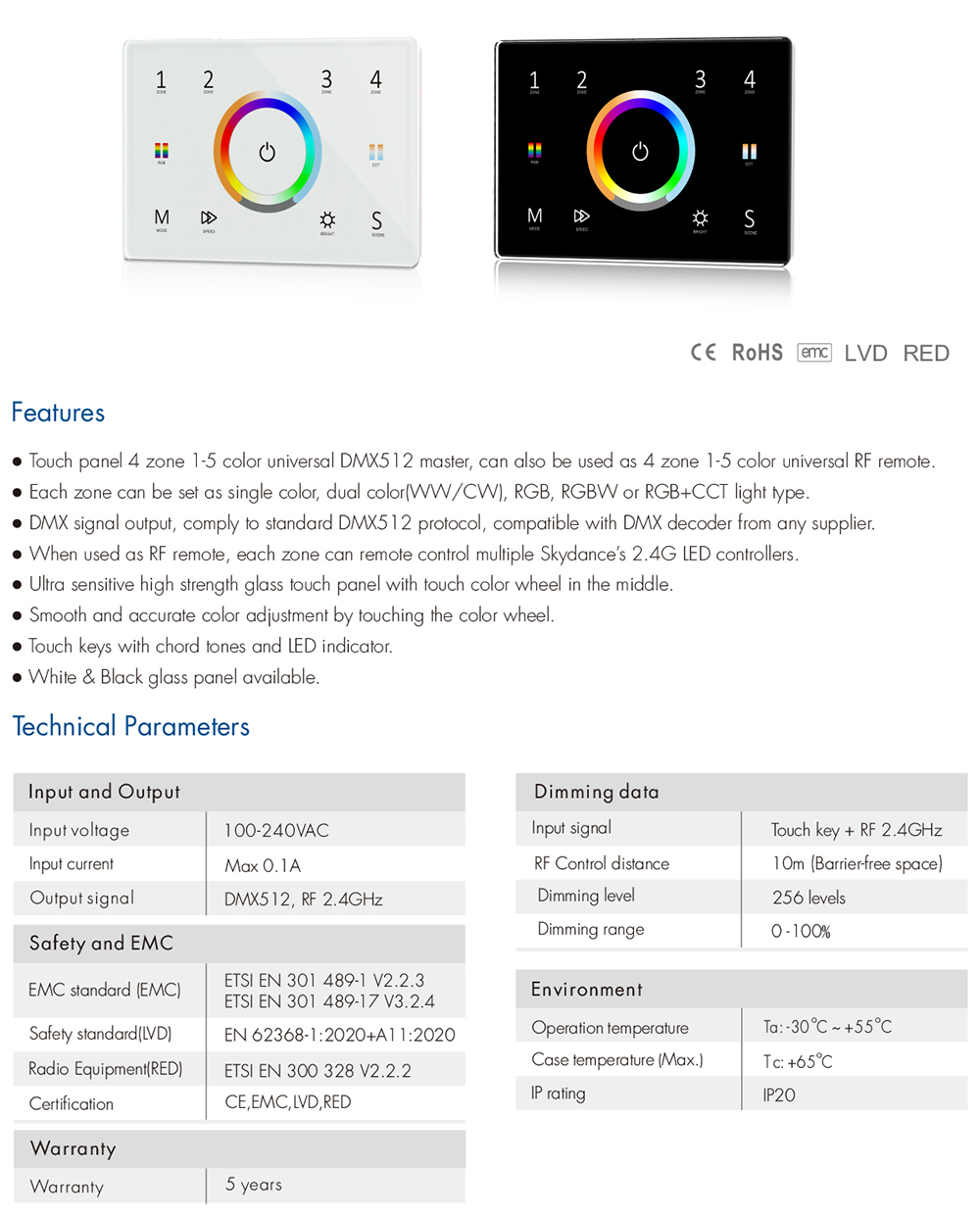

● Touch panel 4 zone 1-5 color universal DMX512 master, can also be used as 4 zone 1-5 color universal RF remote.
● Each zone can be set as single color, dual color(WW/CW), RGB, RGBW or RGB+CCT light type.
● DMX signal output, comply to standard DMX512 protocol, compatible with DMX decoder from any supplier.
● When used as RF remote, each zone can remote control multiple Skydance’s 2.4G LED controllers.
● Ultra sensitive high strength glass touch panel with touch color wheel in the middle.
● Smooth and accurate color adjustment by touching the color wheel.
● Touch keys with chord tones and LED indicator.

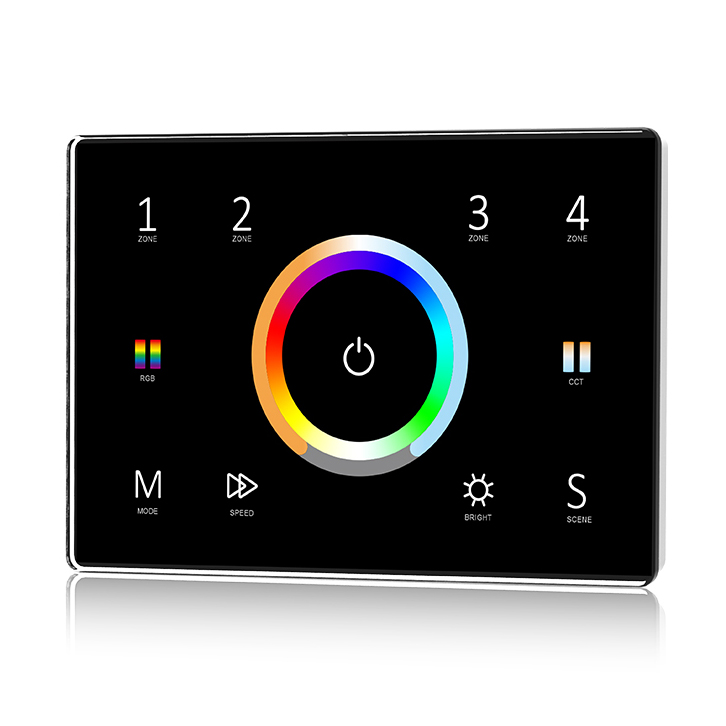

● White & Black glass panel available.
Input and Output
Input voltage: 85-265VAC
Input current: Max 0.1A
Output signal: DMX512, RF 2.4GHz
Safety and EMC
EMC standard (EMC): ETSI EN 301 489-1 V2.2.3, ETSI EN 301 489-17 V3.2.4
Safety standard(LVD): EN 62368-1:2020+A11:2020
Radio Equipment(RED): ETSI EN 300 328 V2.2.2
Input signal: Touch key + RF 2.4GHz
RF Control distance: 10m
Dimming level: 256 levels
Dimming range: 0 -100%
Warranty and Protection
Warranty: 5 years
