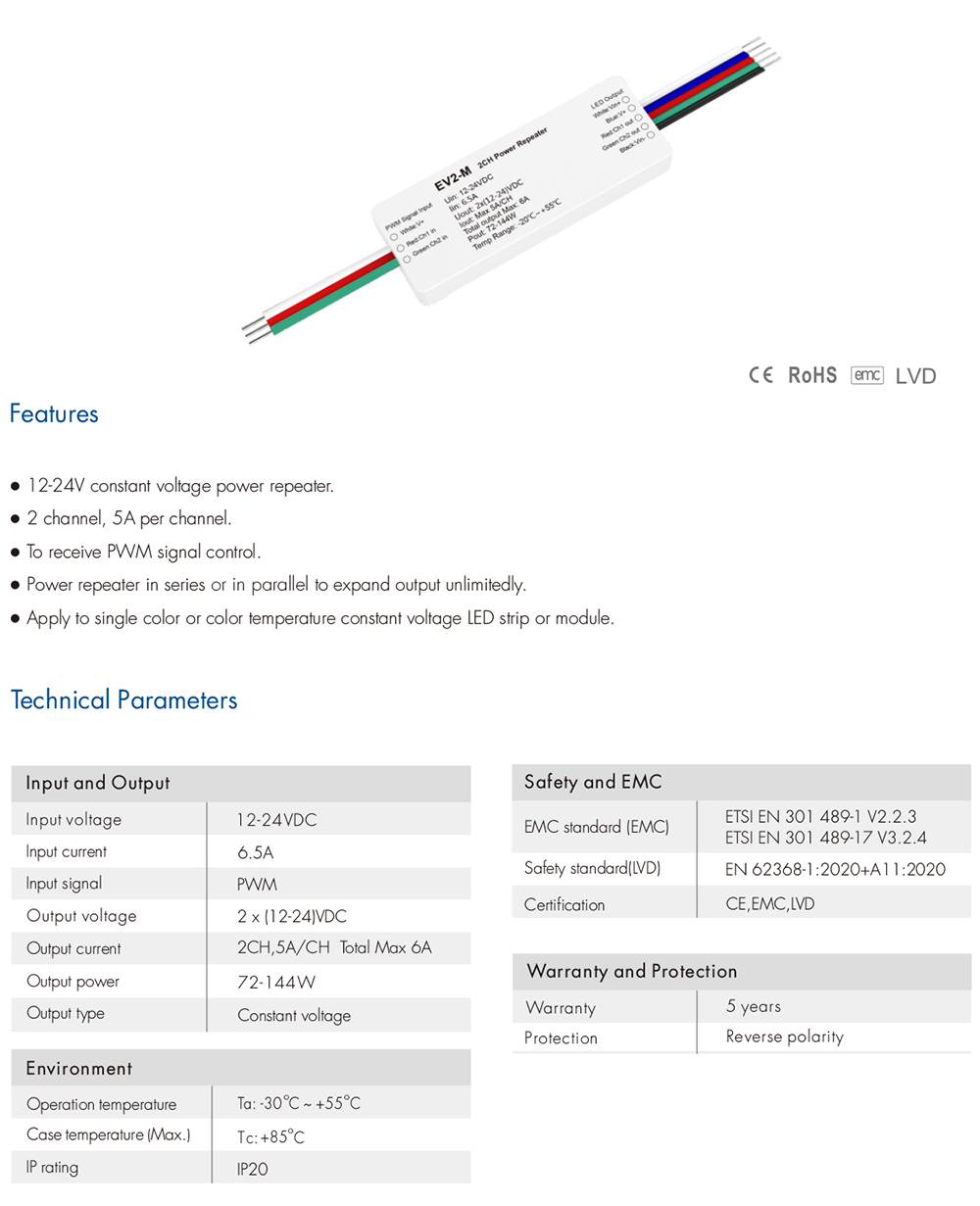

EV2-M 12-24VDC CV Dual Color Power Repeater
● 12-24V constant voltage power repeater.
● 2 channel, 5A per channel.
● To receive PWM signal control.

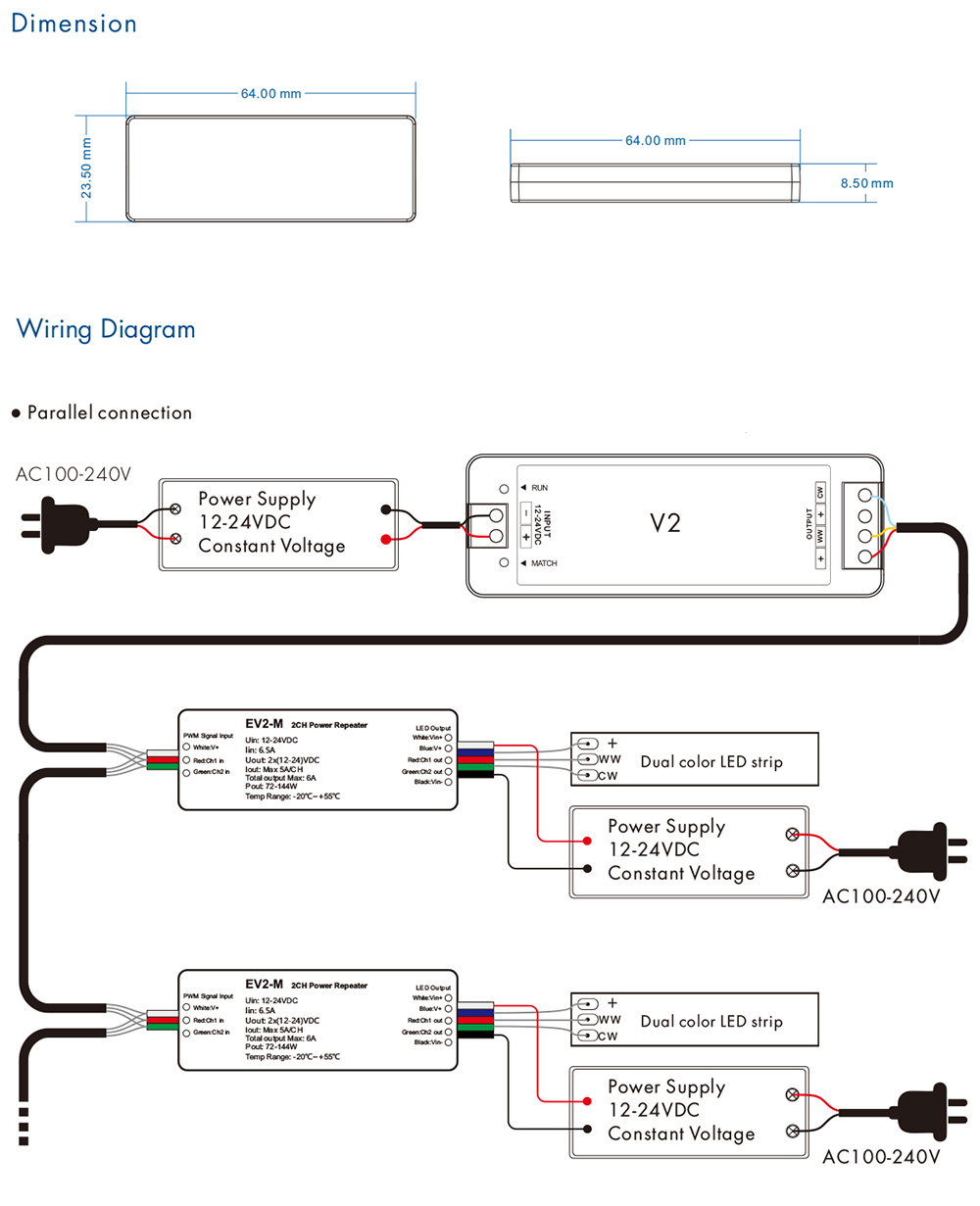

● Power repeater in series or in parallel to expand output unlimitedly.
● Apply to single color or color temperature constant voltage LED strip or module.
Input and Output
Input voltage: 12-24VDC
Input current: 6.5A
Input signal: PWM
Output voltage: 2 x (12-24)VDC
Output current: 2CH, 5A./CH, Total Max 6A
Output power: 72-144W max
Output type: Constant voltage
Safety and EMC
EMC standard (EMC): ETSI EN 301 489-1 V2.2.3; ETSI EN 301 489-17 V3.2.4
Safety standard(LVD): EN 62368-1:2020+A11:2020
Woking Temperature: -30℃～55℃
IP Rating: IP20
Warranty: 5 years
Protection: Reserve polarity
Standards and Certifications
