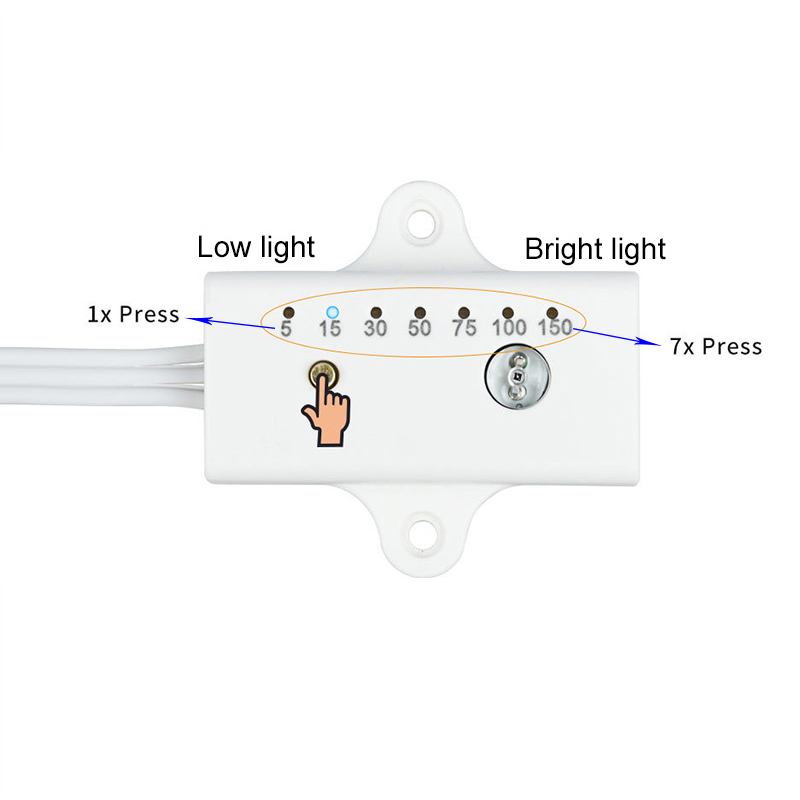

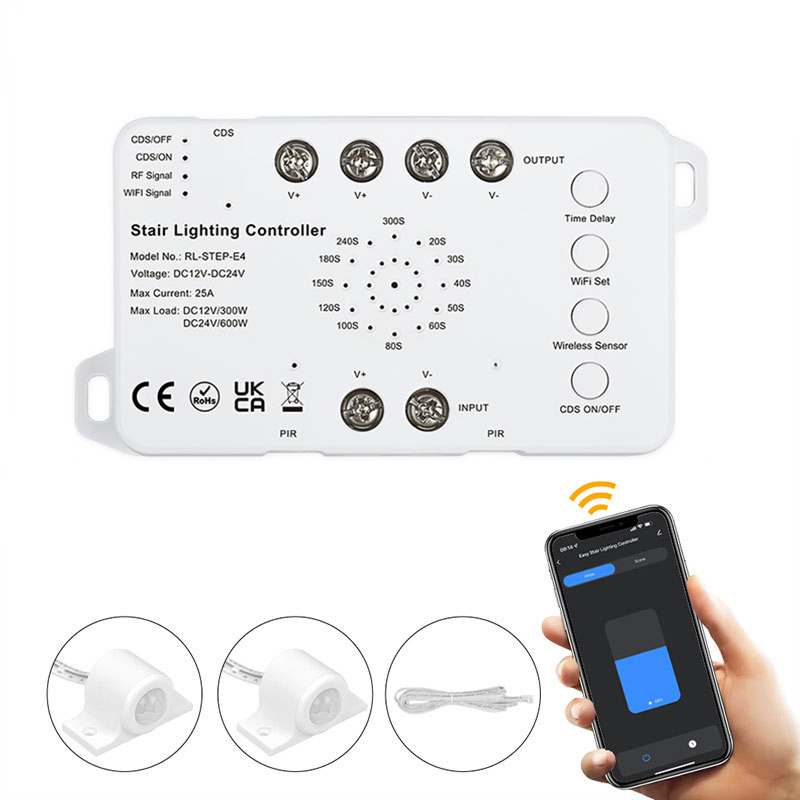

This stairway lighting controller supports Tuya APP control, operate the delay time directly on the LED controller and adjust the brightness with the mobile app.

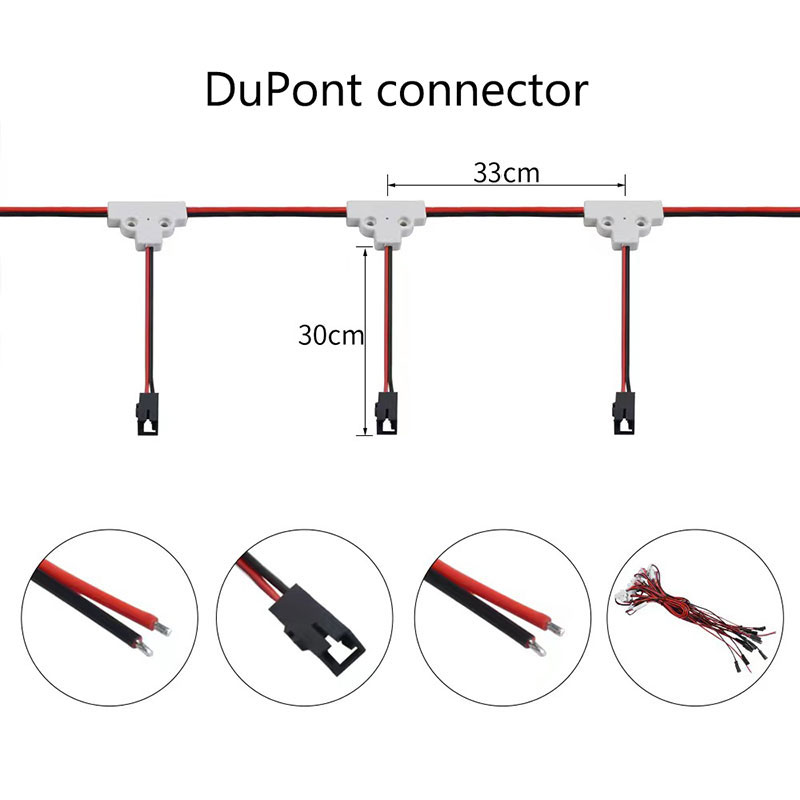

It is used for DC12V/DC24V single color led strip lights, comes with a main wire to connect all the step lights. You also can use it to make stair side wall linear light design, the quantity of the fast wire connector (Dupont connector) is optional. Choose as many connectors as there are steps in your staircase.
Based on the power of your strip light and the number of strips to calculate how much capacity power supply you need (single strip power x strip number x 1.2). Be aware of that the total power consumption cannot exceed 96W (for 12V strip lights) / 192W (for 24V strip lights).

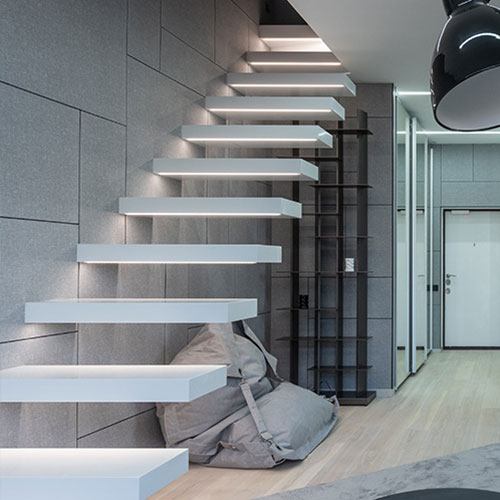

We recommend you to use COB led strip lights to as the stair light source, energy-saving and dotless, no light spot, with continuous linear light.
Conventional wiring VS upgraded wiring
Conventional wiring: Each step needs a separate wire to connect to the controller, the wiring is complicated.

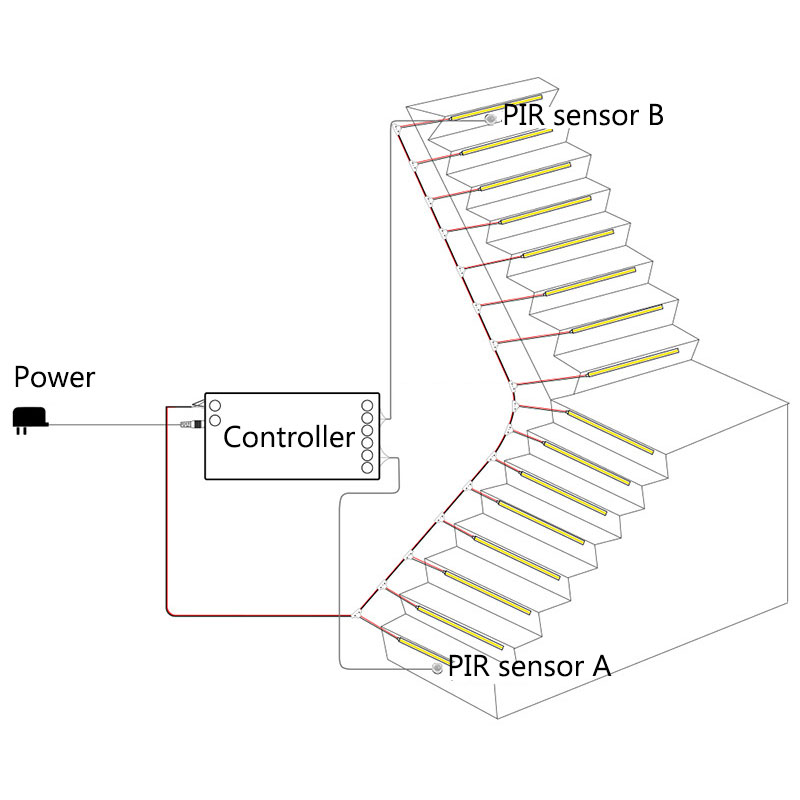

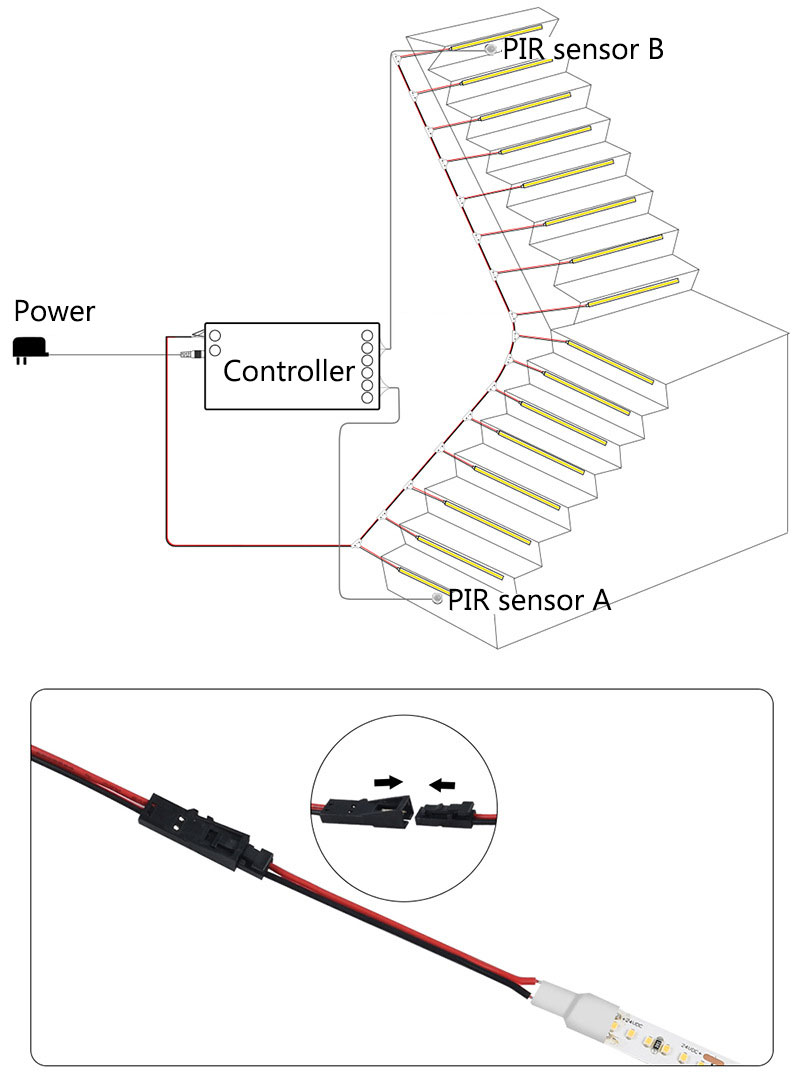

Upgraded wiring: One main wire connects all the step lights, easy to install. Max to connect 99 steps.
RL-S01 Stair Light Controller SPEC
Standards and Certifications
Type: Motion Sensor LED Stair Light Controller
Shell Material: ABS
Working Voltage: DC12-24V
Max Current: 8A
Max Steps: 99

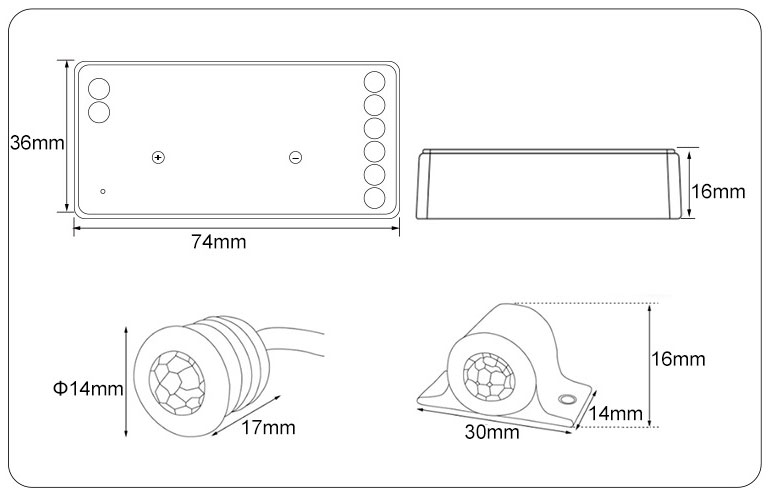

Controller Size: 74mm*36mm*16mm
PIR Sensor Size: 30mm*14mm*16mm for surface mount; 14mm*17mm for recessed mount
Max Load: 96W/12V, 192W/24V
Function: brightness, delay time
Package List: 1*controller, 2*PIR sensor, 2*1m sensor cable, 1*5m extension cord
