24V FW1935 Dual Data Signal 5050 RGB Addressable LED Strip, 84LEDs/m, 96LEDs/m
High-density 84LEDs/m or 96LEDs/m digital RGB led strip for more uniform bright linear lighting. Dual data wire transmission, the control signal will not affect the normal operation of other SMD LEDs due to the abnormality of one SMD LED, and the serial data transmission rate is 800KHz.

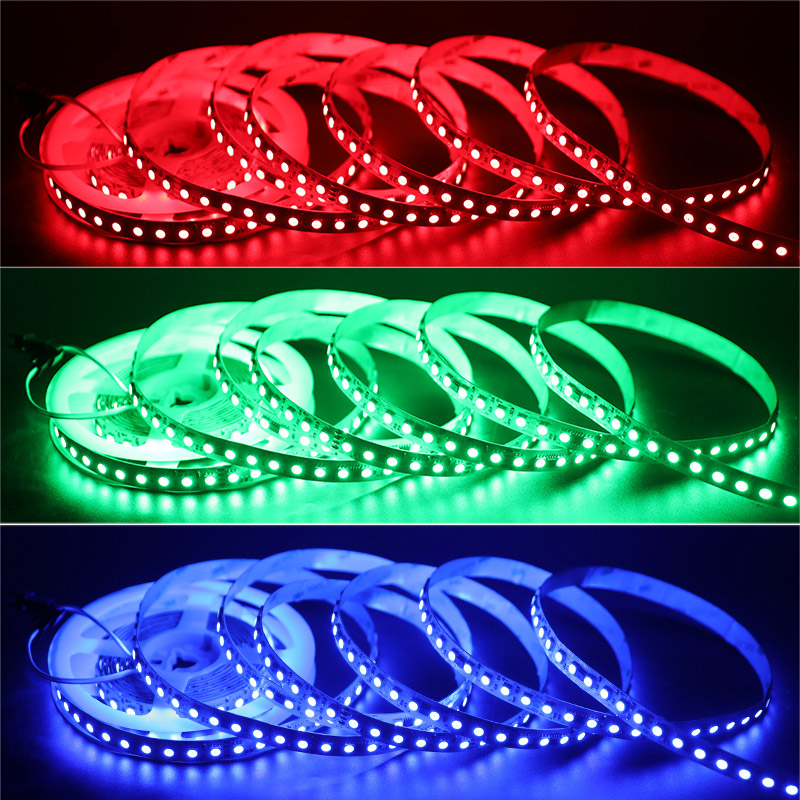

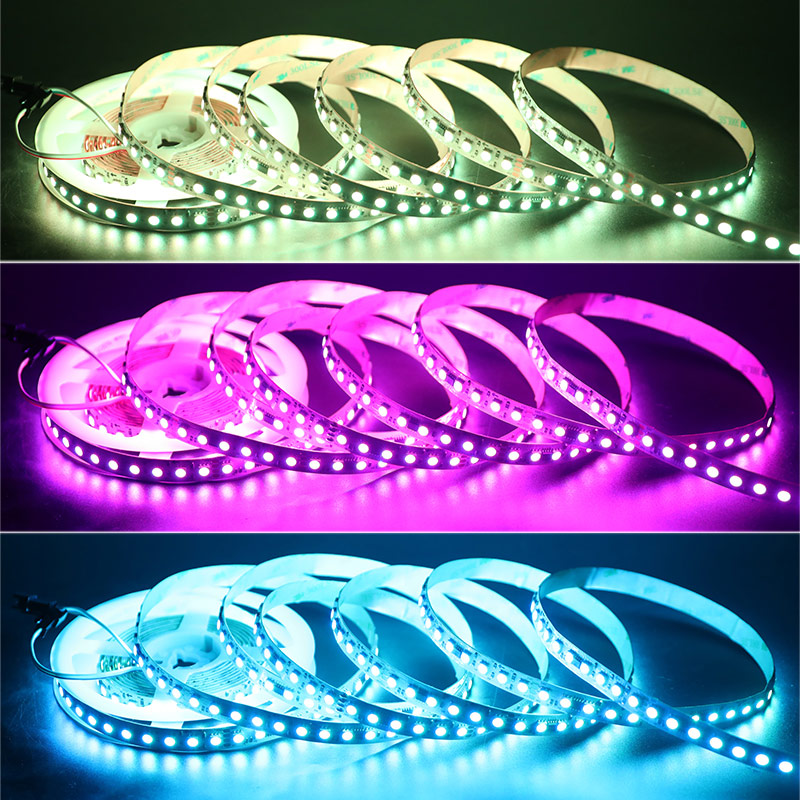

Six LED diodes as a unit, one FW1935 IC controls 6 lights per time, each IC area with 256 brightness displays and 24-bit color displays. Pixel led strip must be connected to an SPI controller to achieve color changes.

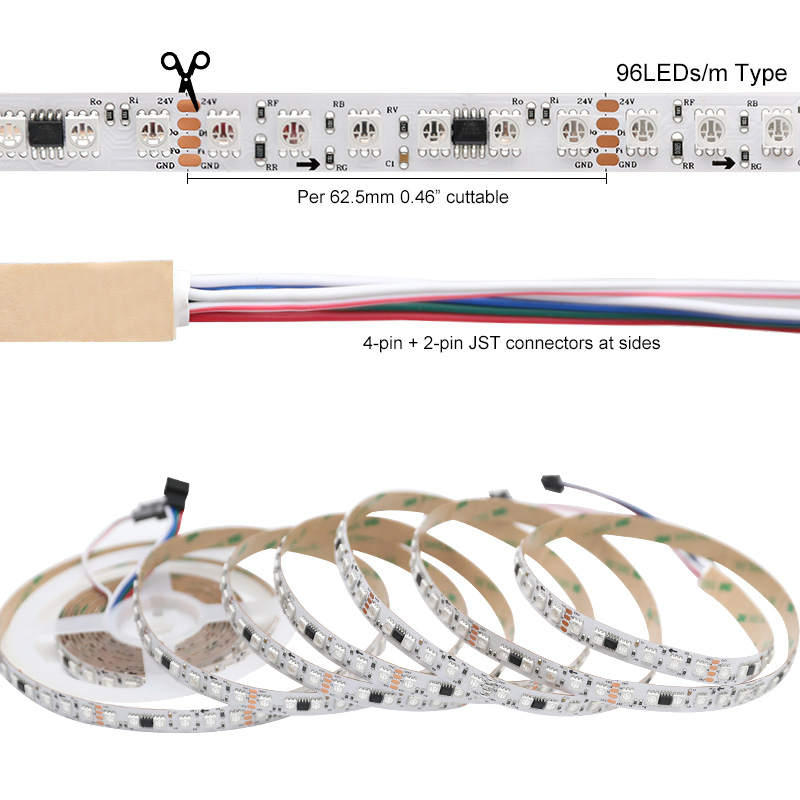

This RGB strip comes with a 4-pin JST connector and a 2-pin power/ground wire at both ends, easy to connect multiple strips together, and inject power in time to run longer distances. Work with 24V led power supply.
Standards and Certifications
|LED Strip Type:||Addressable RGB LED Strip Lights|
|LED Chip:||FW1935 Breakpoint Resume + SMD5050|
|Power:||16W/m - 84EDs/m, 18W/m - 96LEDs/m|
|LED Color Temperature:||Addressable RGB|
|PCB Width:||10mm/0.4" - 84LEDs/m, 12mm/0.47" - 96LEDs/m|
|LED Quantity:||84/96 LEDs/m, 420/480 LEDs per roll|
|IC Quantity:||14/16 IC/meter (1 IC drives 6 led chip)|
|Dimensions:||L500cm(196.8 in ) x W1.0cm(0.39 in ) x H0.25cm(0.10 in )|
|Waterproof Rating:||Non-waterproof IP20 / Indoor waterproof IP65 / Outdoor Waterproof IP67 IP68|
|Cuttable:||6-LED, 71.4mm/2.8" - 84LEDs/m, 62.5mm/2.46" - 96LEDs/m|
4 Pin Breakpoint Resume LED Strip Light Wiring
"24V+" to "VCC", data line "Di/Do" to "DAT", backup date line "Fi/Fo" to "DAT" to "GND", "GND" to "GND".
