32CH LED Motion Sensor Controller For LED Stair Lights

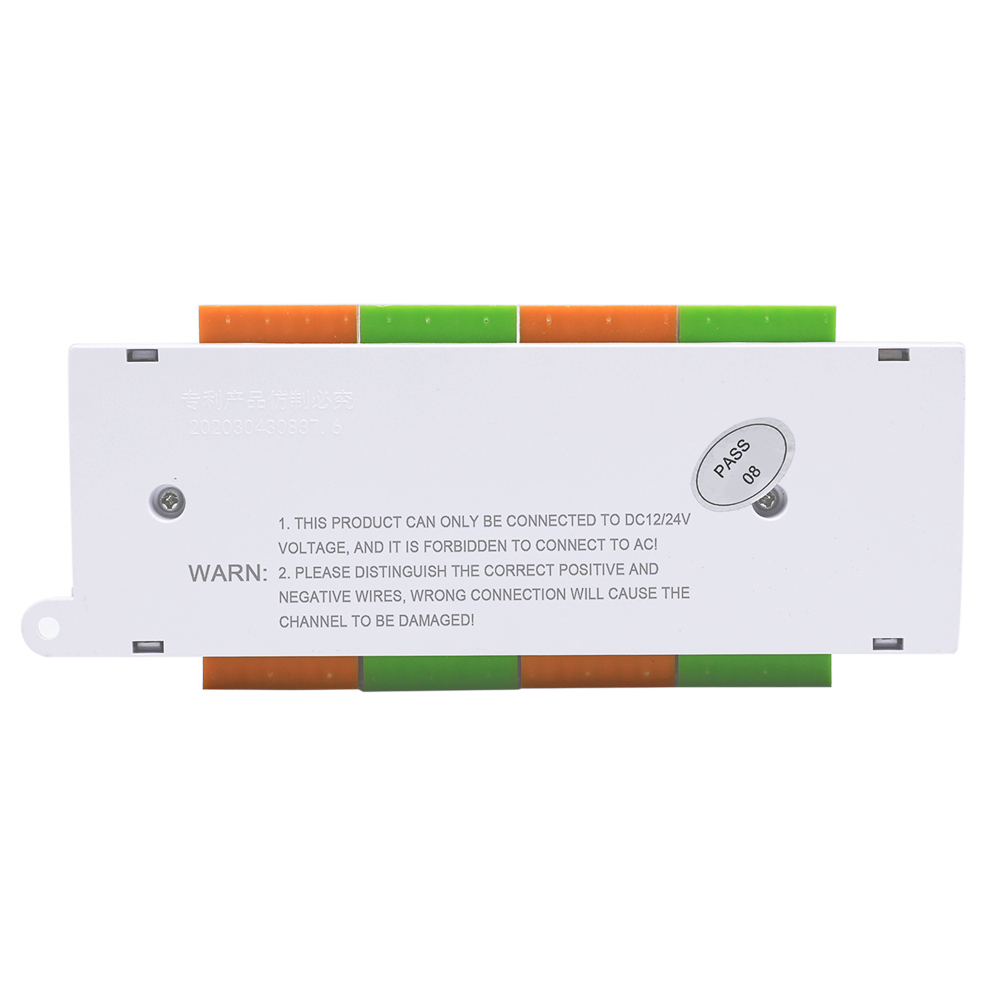

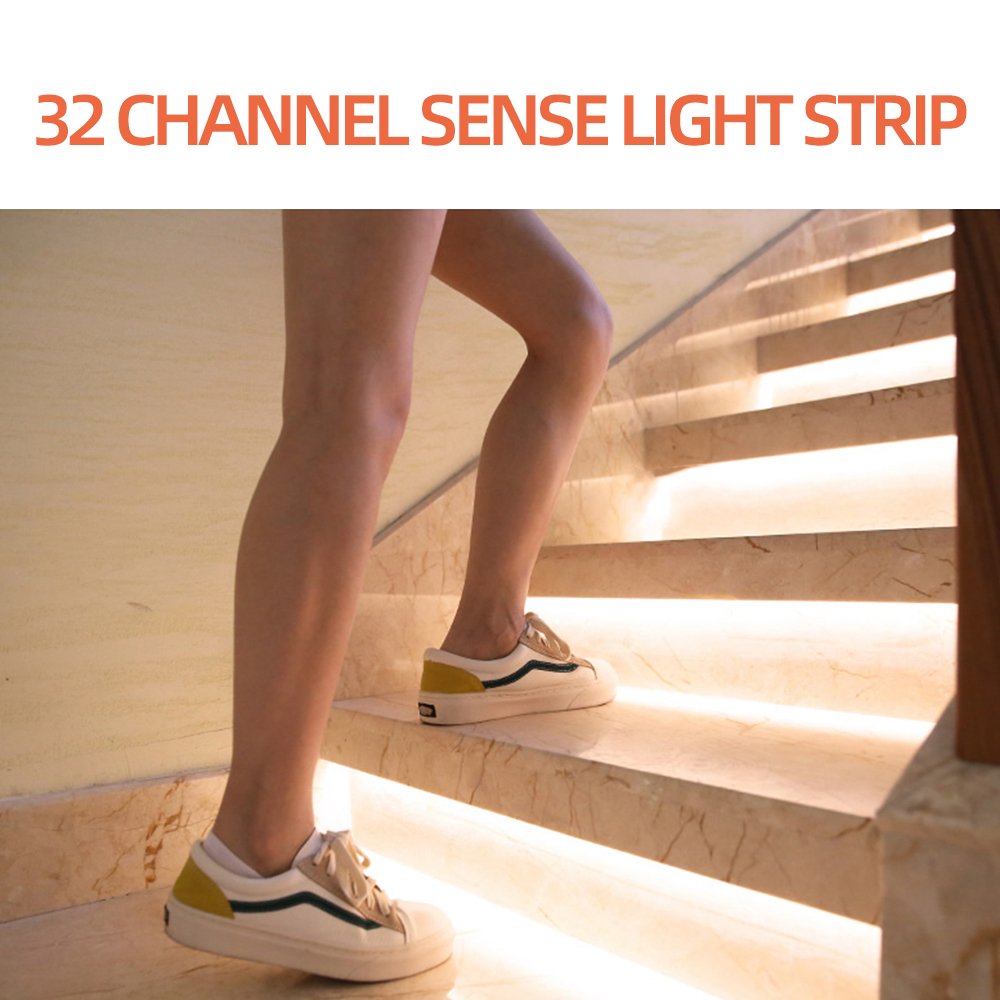

Lighting for stairwell, check this 32CH motion sensor led stair lights controller, automatically sense your movements within 3 meters, the step lights come on in sequence, people go and the led stair tread lights go out. The led lighting speed can be adjusted freely. The steps quantity of this LED stair controller is 32. Two motion sensors are installed on both ends of the staircase. Fast connector, easy installation. The first step light connects to the "1" mark of the led controller and the second is connected to the "2" and the others so on. Pay attention when installing, check the wiring first, do not have positive and negative overlap or may touch together, and ensure that there is no positive and negative short circuit before powering on. Once the positive and negative are connected to each other, it will cause burnout.
• Adaptable solutions for different types of stairs
• Complete equipment can be built in new buildings or existing stairs
• Energy-saving LED lights and aesthetic design
• Regardless of the width of the steps, the stairs can be illuminated.
• The kit is easy to install and use
• Lights are automatically turned on and off when needed
Standards and Certifications
|Max power||400 W|
|Max single step power||15W|
|Output voltage||DC 12-24 V|
|Number of step control||32 steps|

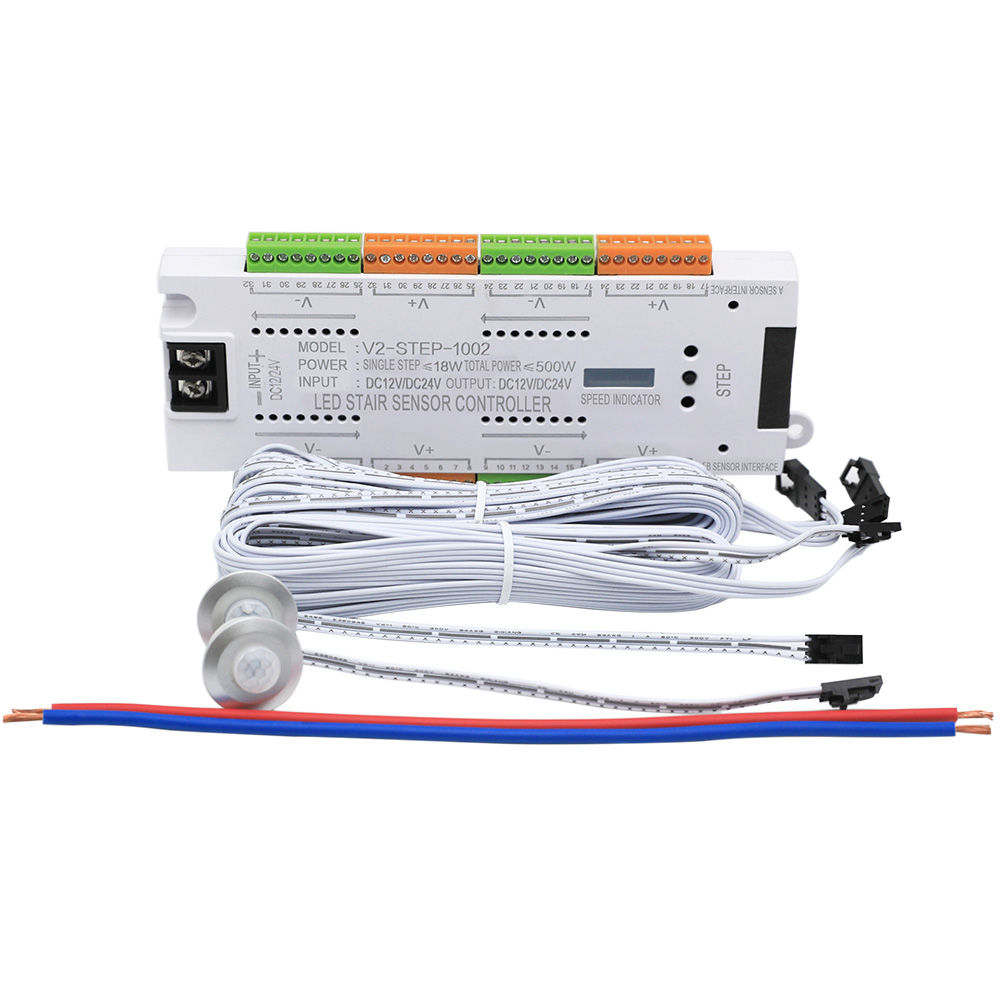

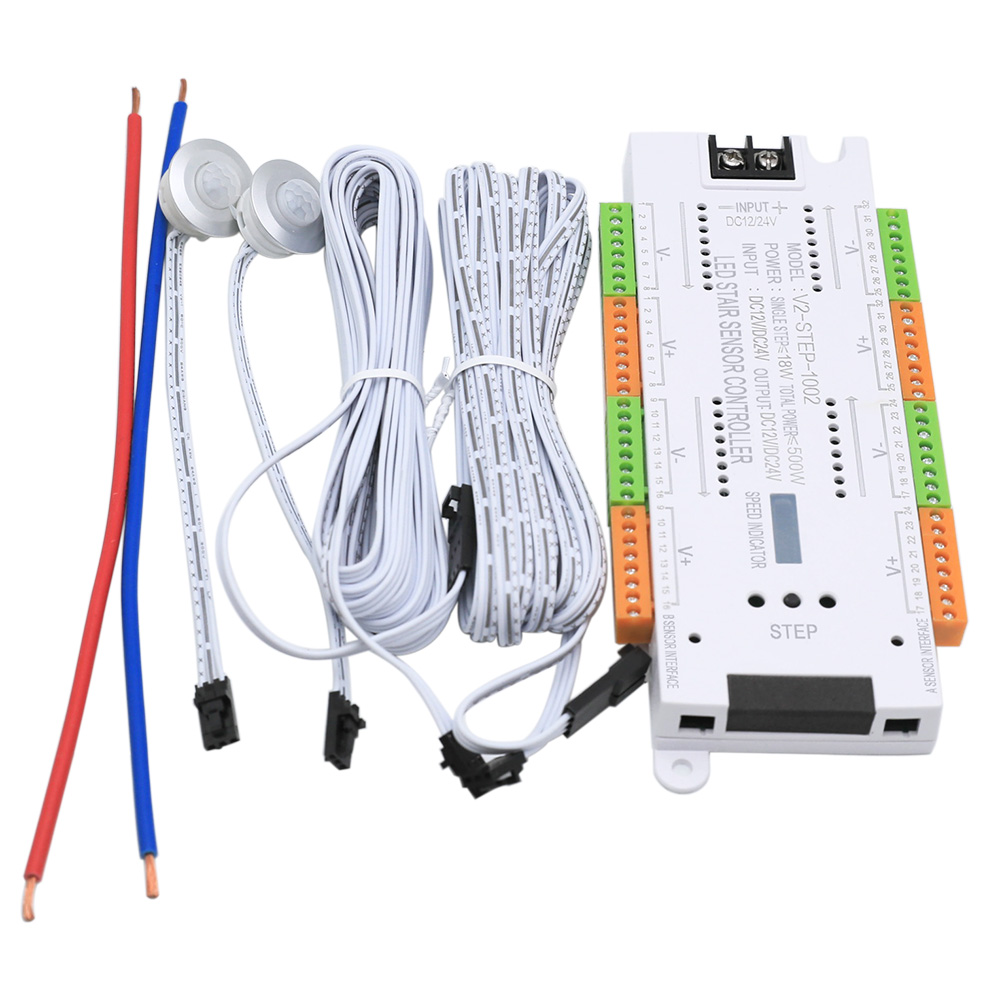

1*32 steps LED stair controller
2* motion sensors
2pcs*connector line (Red: V+, Blue: V-)
2*5m/16.4ft Induction extension cord
32* 2pin LED fast connectors(the distance of the needle between the 2pin LED fast connectors is 2.54mm)
If you have additional requirements or questions, please contact us or remarks before you pay for the order.
How to install motion sensor led stair lights kit work with COB LED strips:
