Product Information

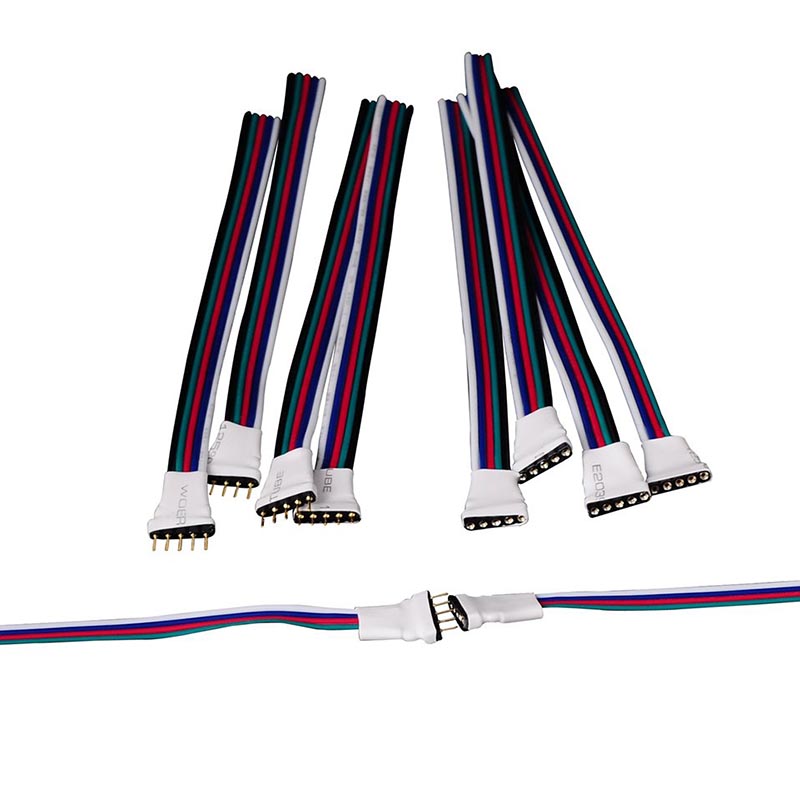

Create seamless, professional lighting installations with the 15cm 5-Pin Male/Female Connector Wire Cable. This essential accessory is designed to bridge gaps, navigate corners, and extend the reach of your 5-pin RGBW and RGBWW LED strip lights. Sold as a male-and-female pair, these cables provide a simple, plug-and-play solution for connecting two separate strip segments without the need for complex wiring or soldering. Each 15cm cable combines to create a total extension of 30cm, offering the perfect length for connecting strips across cabinets, around furniture, or between different architectural features. This connector is a must-have for any custom LED lighting project requiring clean connections and flexible layouts.
Key Features
Plug-and-Play Connection
Features pre-installed male and female 5-pin plugs for a quick, secure, and solder-free connection between strip segments.
Matched Male & Female Pair
Includes one 15cm male cable and one 15cm female cable, providing a complete solution for extending your lighting run.
Perfect Extension Length
The 30cm total connected length is ideal for cleanly navigating corners, bridging gaps, and linking strips across separate surfaces.
RGBW/RGBWW Compatibility
Specifically designed for 5-conductor LED strips, including 5050 SMD RGBW and RGBWW models, ensuring all color channels function correctly.
Technical Highlights
- Flexible PVC wire jacket allows for easy routing and installation in tight spaces.

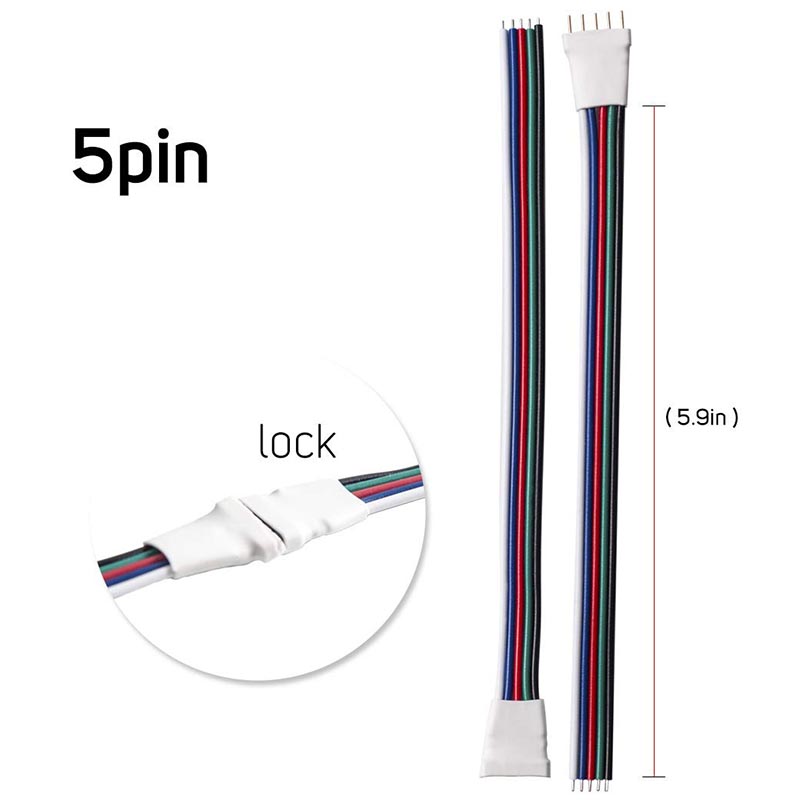

- Secure locking mechanism between plugs prevents accidental disconnection.

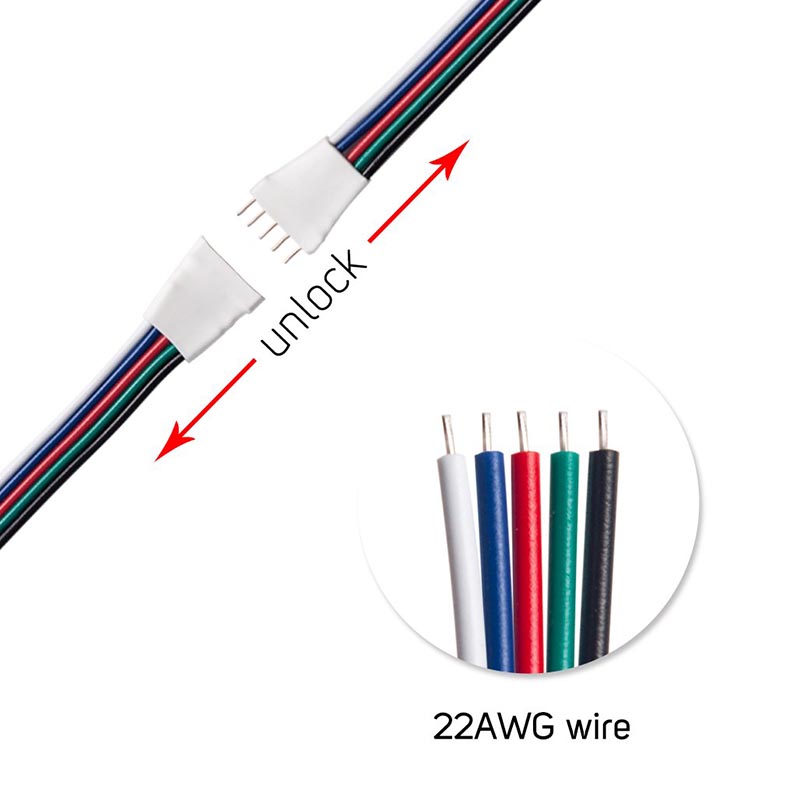

- Tinned wire ends offer the option for a permanent, soldered connection directly to LED strip copper pads if needed.
Product Specifications
| Parameter | Details |
|---|---|
| Model | RGBW-ACCESSORIE-011 |
| Product Type | Connector Wire Cable |
| Connector Type | 5-Pin Male and Female Pair |
| Length (Male Cable) | 15 cm / ~5.9 inches |
| Length (Female Cable) | 15 cm / ~5.9 inches |
| Total Connected Length | Approx. 30 cm / ~11.8 inches |
| Pin Pitch | 2.54mm |
| Jacket Material | PVC |
| Jacket Color | White |
| Compatibility | 5-Pin RGBW and RGBWW LED Strip Lights |
Application Scenarios
How to Use This 5-Pin Connector Cable
- Turn off all power to your LED lighting system before making any connections.
- Identify the male and female ends of the connector pair and the corresponding plugs on your LED strips.
- Align the arrow marking on the male plug with the corresponding marking on the female plug to ensure correct polarity for all five channels.
- Firmly push the connectors together until they snap into place, creating a secure connection.
- If you need to attach this cable to a cut piece of an LED strip, you must solder the tinned wire ends to the corresponding copper pads (R, G, B, W, and V+).
- Once all connections are secure, restore power and test your RGBW LED strip lights.
- This connector is designed exclusively for 5-pin RGBW/RGBWW LED strips. It is not compatible with 2-pin (single color), 4-pin (RGB), or 6-pin (RGBCCT) strips.
- Ensure the connector is fully seated to prevent intermittent connections or incorrect color display.
- While ideal for short extensions, be mindful of voltage drop on very long total runs. Use amplifiers for extensive installations.
What's in the Box
- ✓1 x 15cm 5-Pin Male Connector Cable
- ✓1 x 15cm 5-Pin Female Connector Cable
Frequently Asked Questions
Q: What is this 5-pin connector used for?
A:It is a male and female pair used to connect two sections of 5-pin RGBW or RGBWW LED strip lights, perfect for creating a short extension or navigating around corners.
Q: Is this one 15cm cable or a pair?
A:This product includes a pair: one 15cm male cable and one 15cm female cable. When connected together, they form a total extension of approximately 30cm.
Q: Will this work with my 4-pin RGB LED strip?
A:No, this is a 5 pin led connector designed specifically for RGBW (Red, Green, Blue, White) strips. For standard RGB strips, you will need a 4-pin connector.
Q: Do I need to do any soldering?
A:No soldering is required if you are connecting between two LED strips that already have mating 5-pin plugs. Soldering is only necessary if you are attaching the bare wire ends directly to the copper pads of a cut LED strip.
Q: What is the difference between RGBW and RGBWW strips?
A:Both types use 5 pins and are compatible with this connector. The main difference is the white channel: RGBW has a cool or neutral white, while RGBWW has a warm white.
Q: Can I use this for addressable strips like WS2812B or SK6812?
A:No. Most common addressable LED strips use 3 pins (Data, V+, GND). This connector is for non-addressable, 5-pin analog LED strips.
