AC180~240V 40W RGB+CCT Panel Light Driver PL5
40W RGB+CCT Panel Light Driver

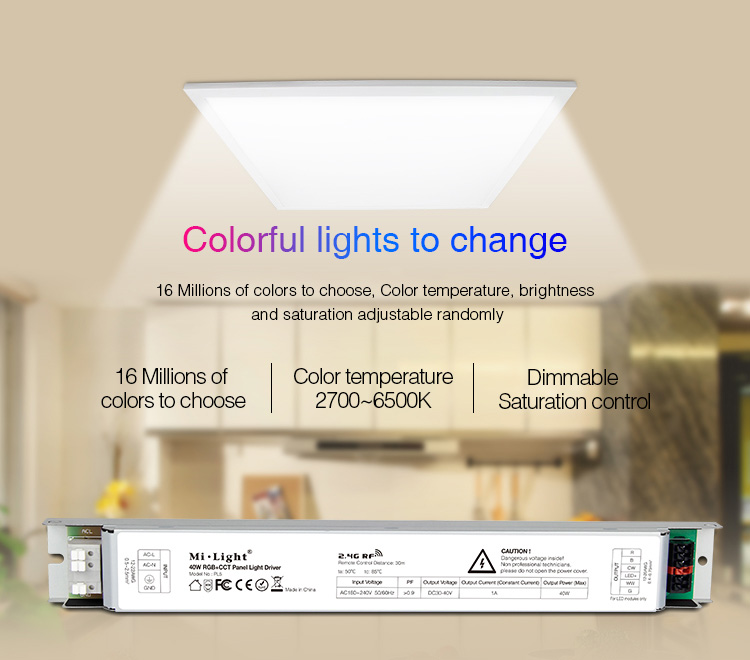

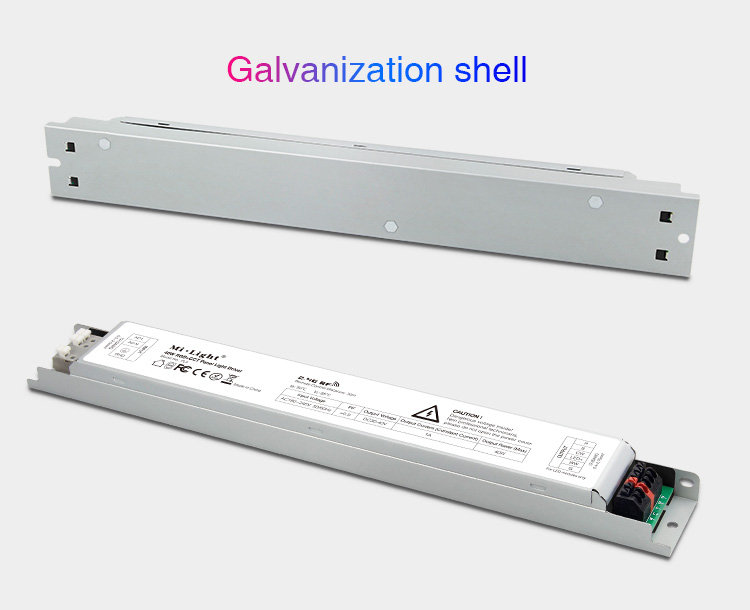

Product Name: 40W RGB+CCT Panel Light Driver
Model No.: PL5

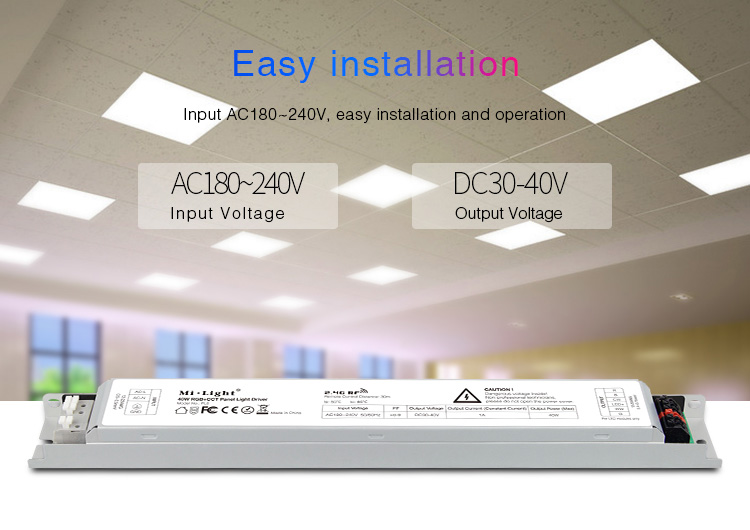

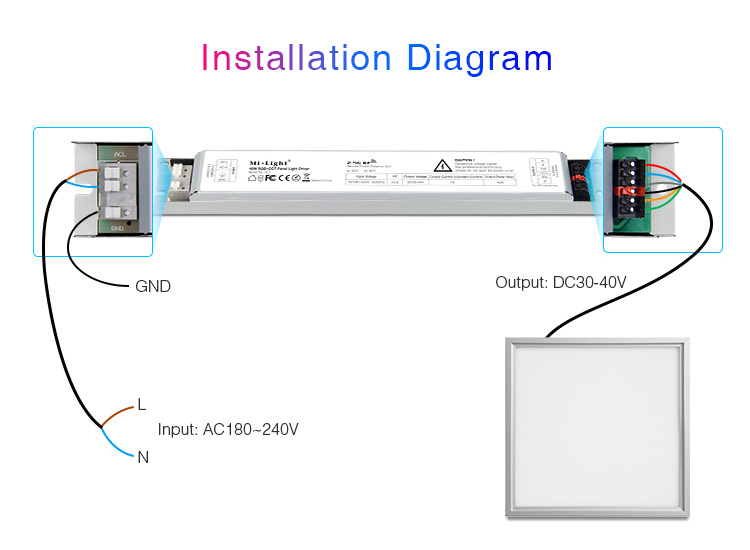

Input Voltage: AC180~240V 50/60Hz
Output Voltage: DC30-40V
Output Current (Constant Current): 1A
Output Power (Max): 40W
Controllable Channel: 5 Channels

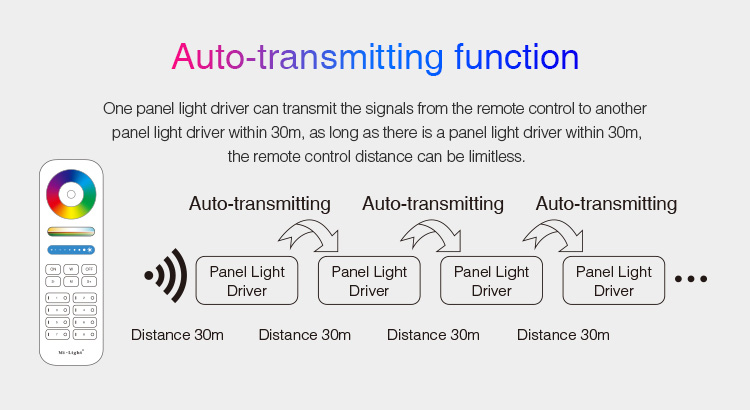

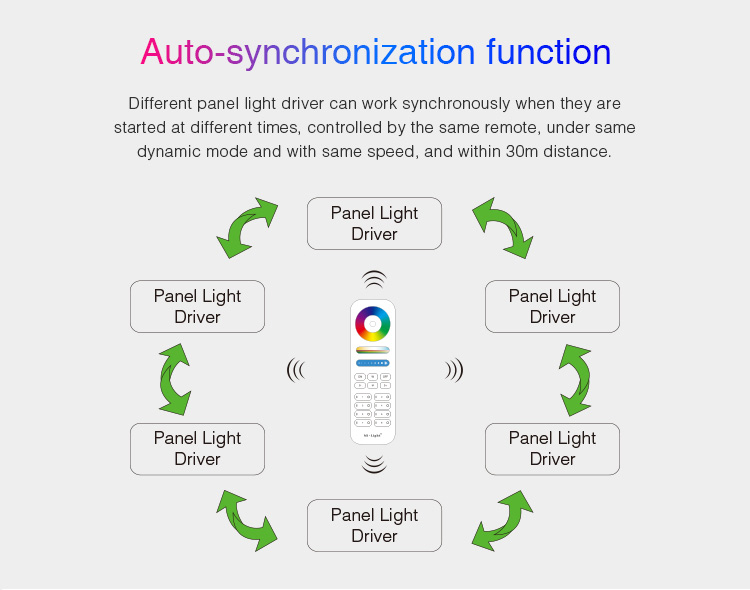

Remote Control Distance: 30m
