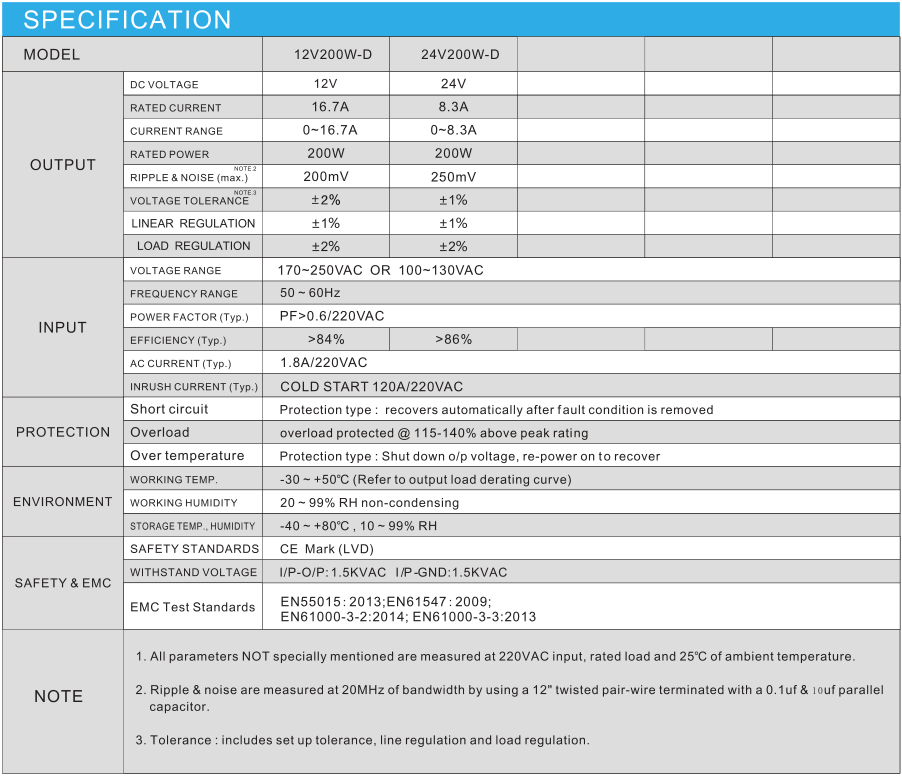

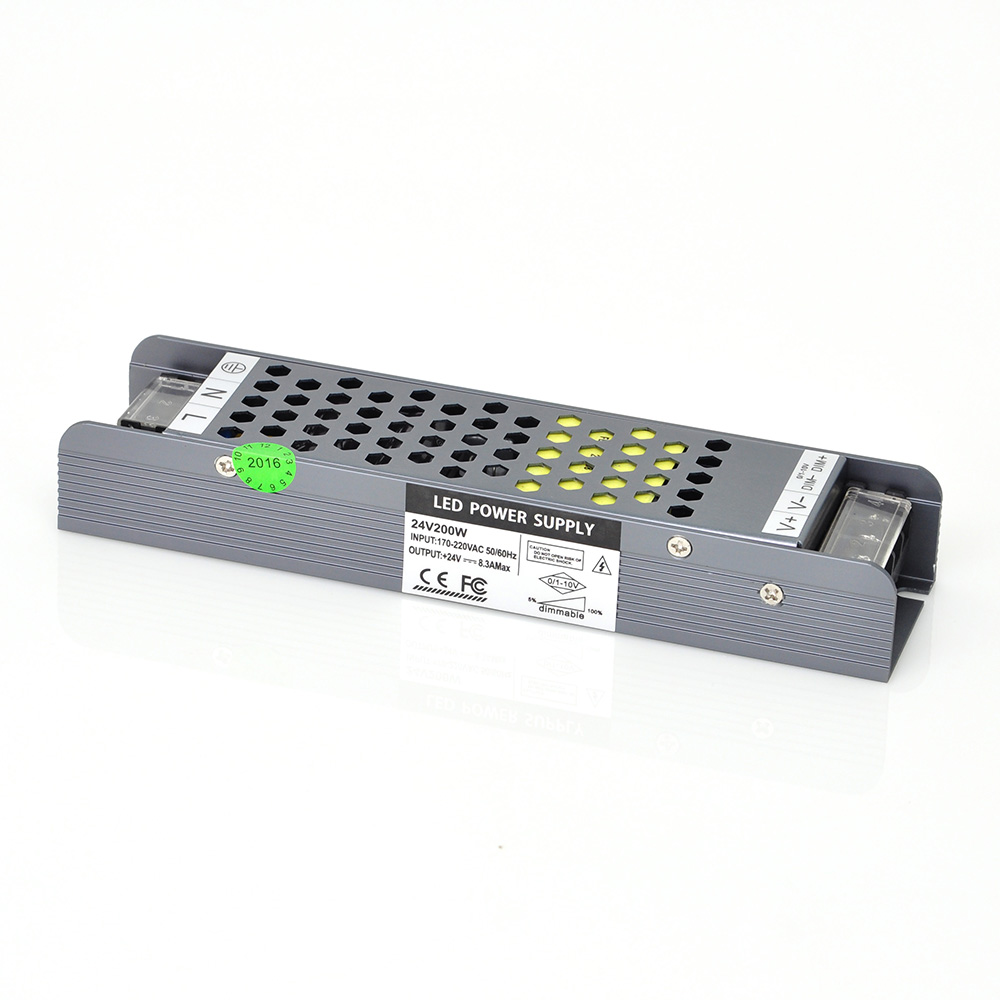

DC24V 200W 8.3A 0-10V LED dimming power supply
Design for indoor installations
Protections: Short circuit / Overload/Over temperature
Cooling by free air convection
100% full load burn-in test

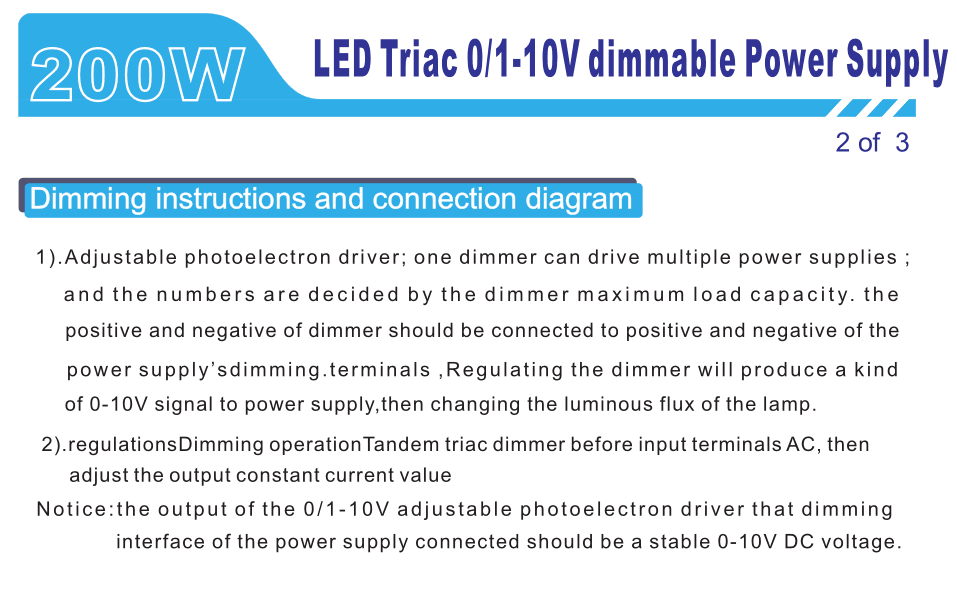

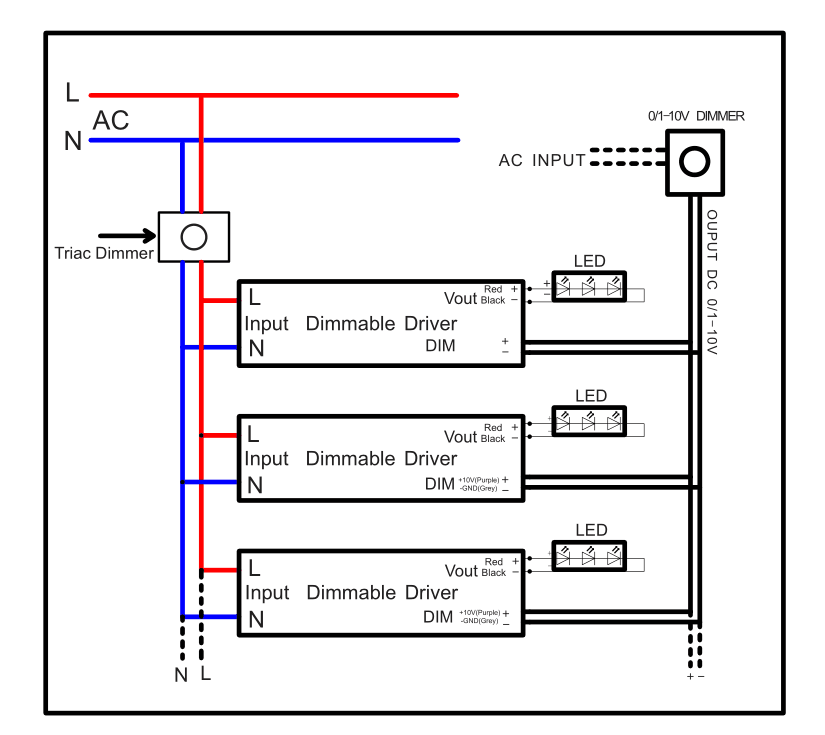

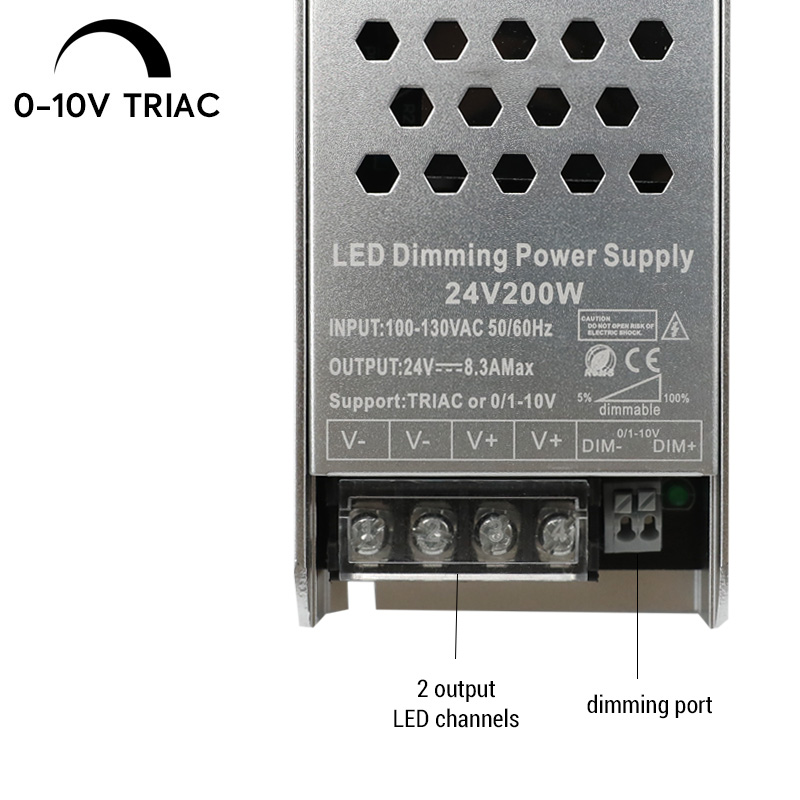

Optional dimming method: TRIAC or 0/1-10V dimmable
Meet the LED lighting
Products through CE, RoHS Certification
