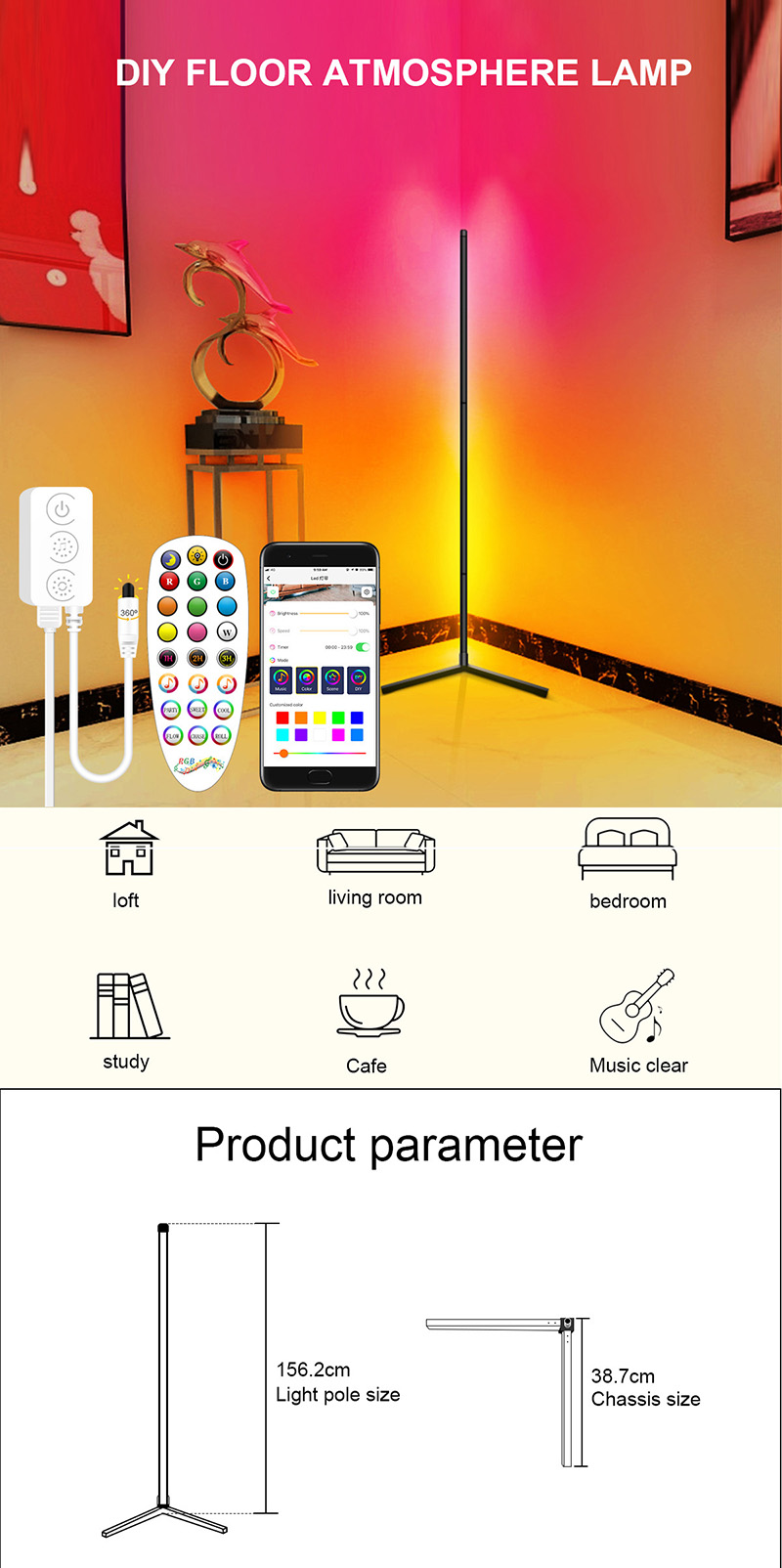

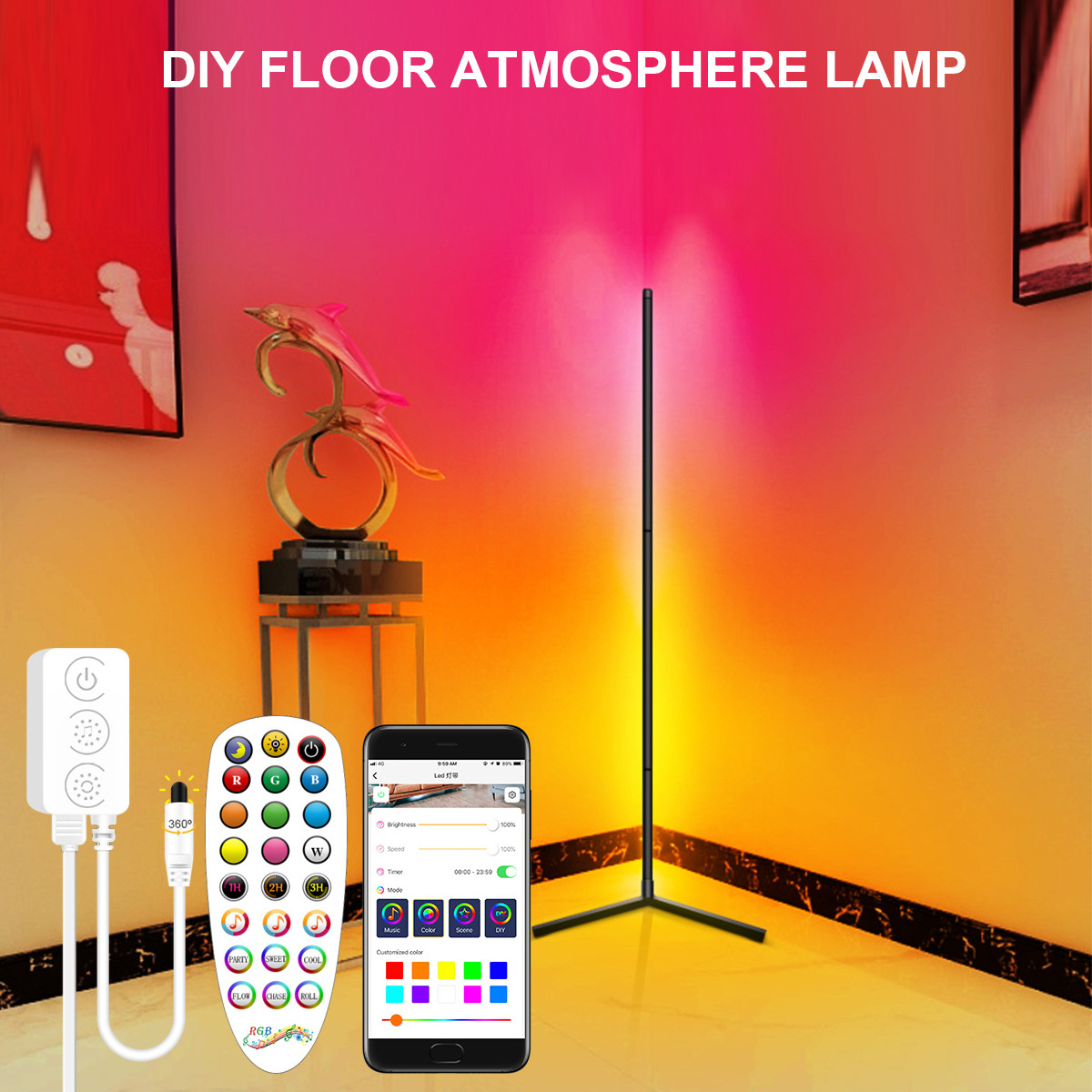

DC5V DIY Dream Color Bluetooth LED Floor Atmosphere Stick Light Kit

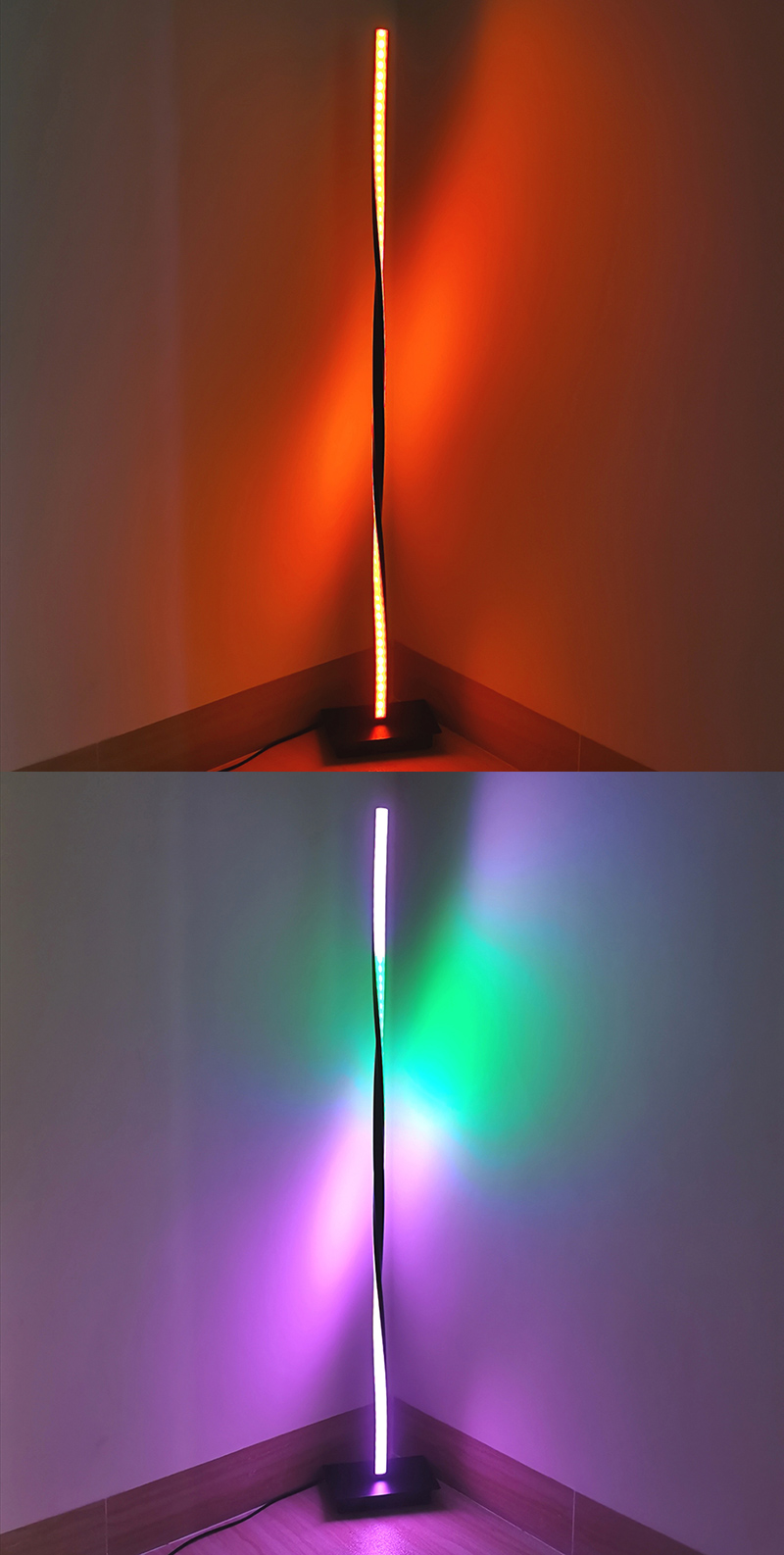

LED corner floor atmosphere stick light adopts exquisite design and minimalist style, which releases plenty of indoor space and made an exquisite dream color effect. widely used in living rooms, bedrooms, living rooms, and other indoor environments, as the first choice for environment lighting and mood lighting.
Combined with a variety of stable structures, the floor lamp body is made of aluminum, the base is made of high-quality hardware materials, and the triangular frame ensures stability. USB adapter, DC5V safe output, stable and efficient, ensuring the safety and simplicity of the installation process
Using high-quality WS2812B LED chip to ensure efficient and stable data transmission, 16 million colors to choose from including RGB, warm white and daylight white, dimmable range 0-100%

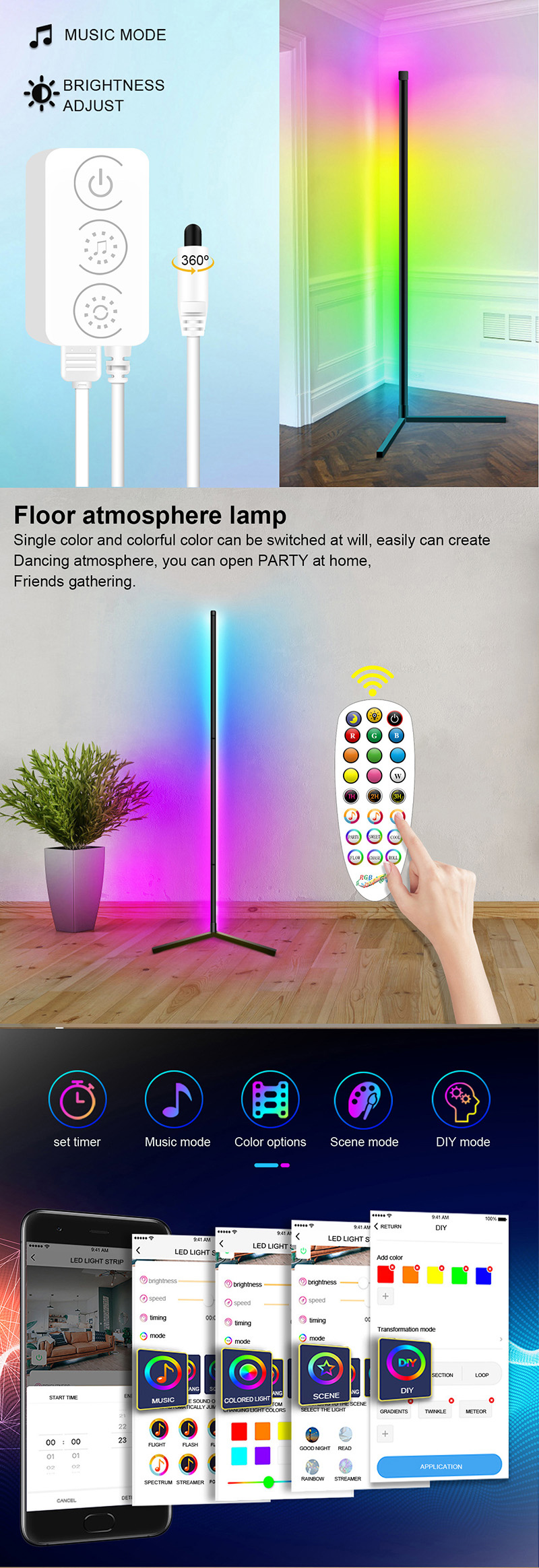

Multiple control methods are available: 3 buttons controller, 24keys RF remote control, and mobile APP Bluetooth control LED floor lamps can produce thousands of lighting effects, creating different atmospheres.
LED corner floor lamp light has an intelligent music mode and an integrated microphone with adjustable sensitivity, and has 358 kinds of lighting effects can be applied to a wedding, birthday, party lighting activities
LED corner floor lamp light combines modern and simple style, replacing ordinary RGB LED bulbs, saving space, and at the same time bringing the ultimate lighting effect, elegant design, deeply loved by European and American customers.
Using a high-quality WS2812B LED chip, efficient data transmission
USB input, 0-100% dimmable
16 million colors can be selected including RGB, warm white, and daylight white
Controller three-button control, 24keys RF remote control, and mobile APP Bluetooth control
360° no blind zone, arbitrary direction control
Smart music and built-in microphone mode
If you have other requirements of LED controller, you can visit our Addressable Dream Color Controller Series.
LED Strip Light Specification
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
LED Type: SMD5050
LED Chip: WS2812B IC
LED Quantity: 60LEDs/m
Working Voltage: DC5V
Working Power: 27W/4.92ft, 90W/16.4ft Max
Lumen Per LED: 20~22Lumen 6600lm Max /16.4ft
Warantty: 3 years

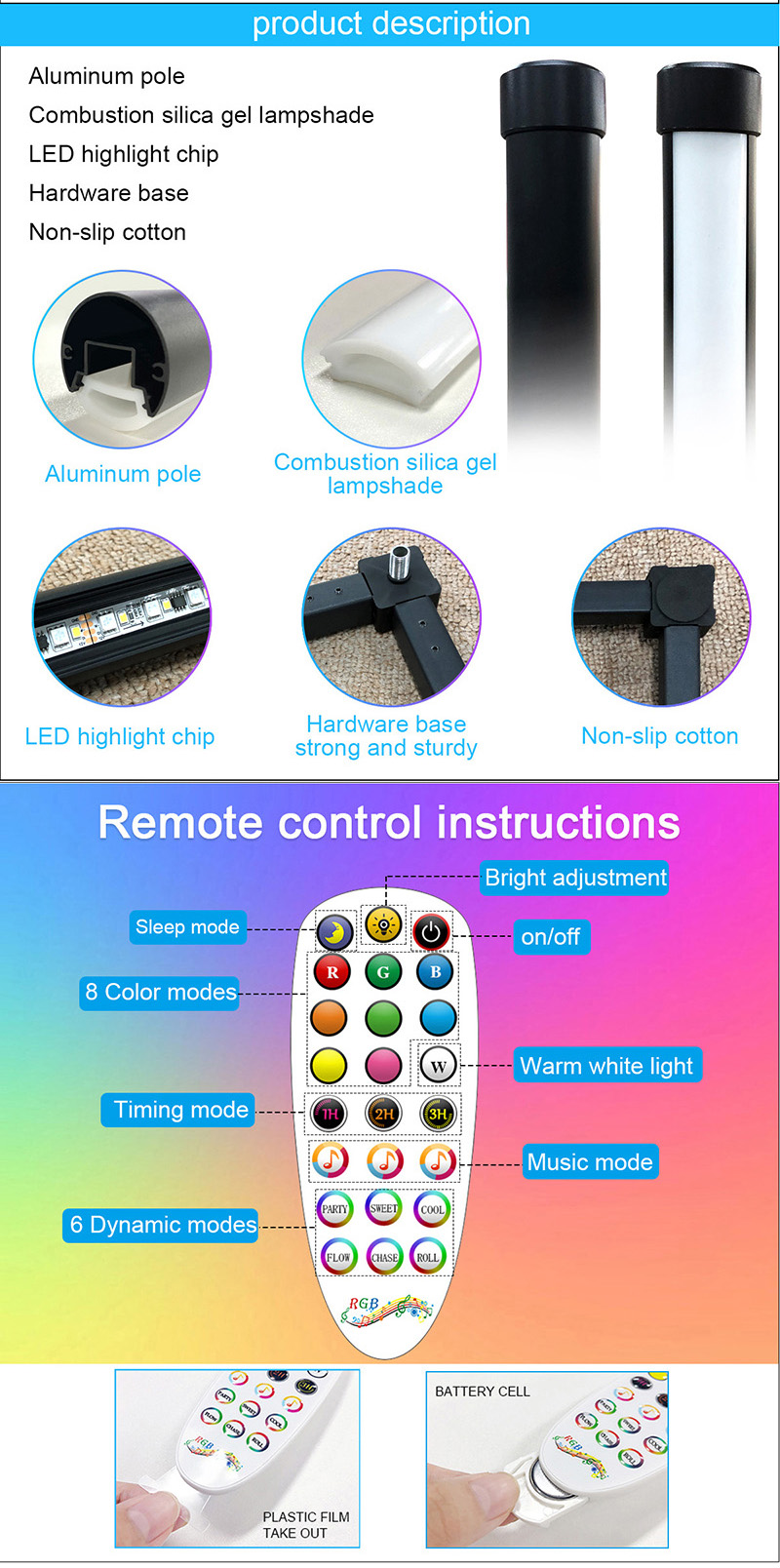

LED floor atmosphere light Shell Material: Aluminum alloy + ABS+ Silicone
APP： Magic Lantern
3 x light mast
2 x lamp legs
3 x PC diffuser
1 x 1.5m/4.92ft LED light strip
1 x T-shaped fixed base
1 x 24keys RF remote controller
1 x USB adapter
1 x installation guide
1. 3 buttons controller,
2. 24keys RF remote control
3. APP bluetooth control
360 Degrees Receiver
Suitable for multiple applications

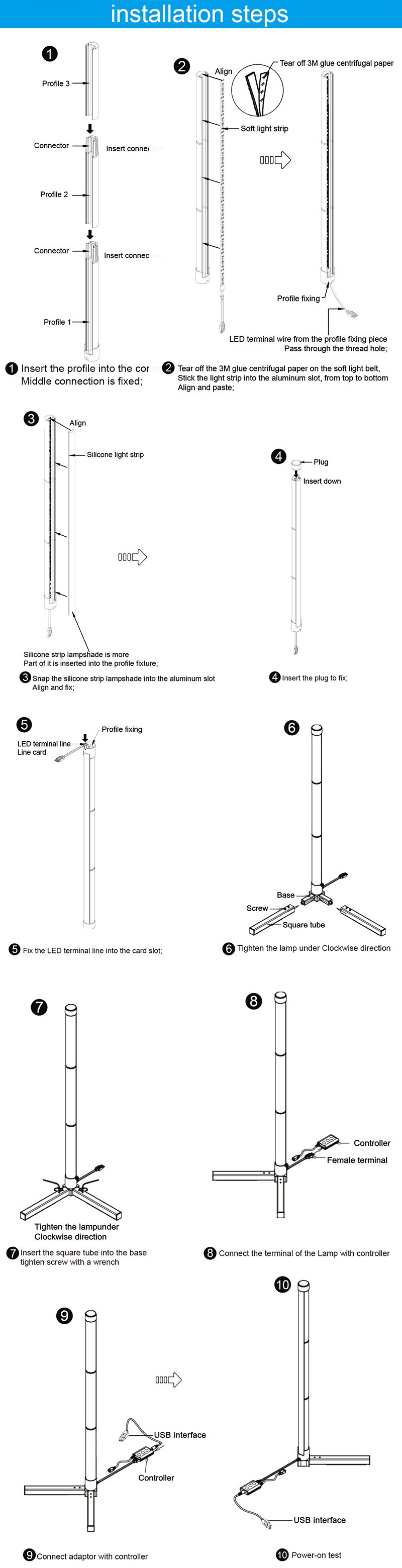

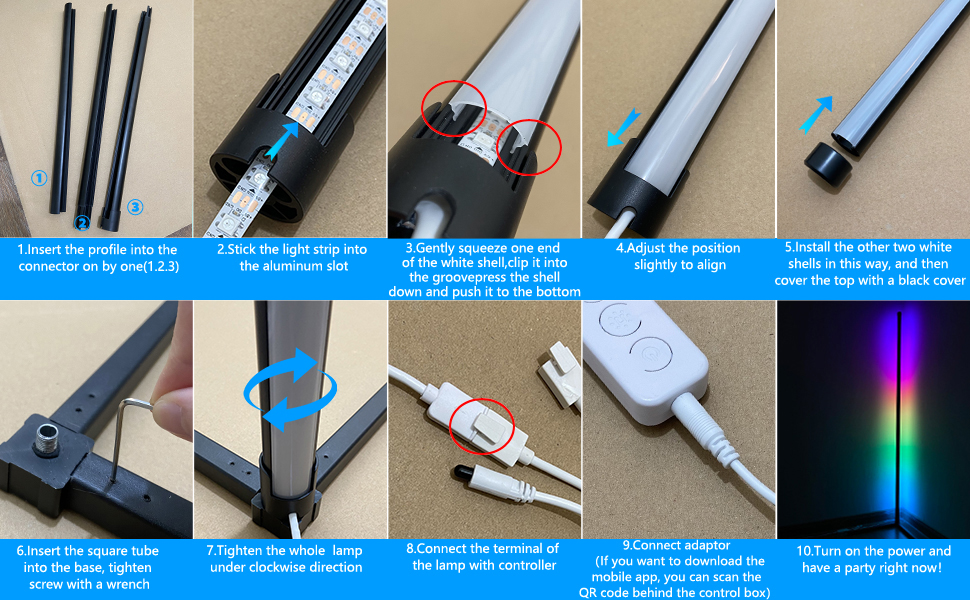

1.Connect the aluminum profile one by one together
2.Tear off the 3M glue centrifugal paper on the soft light belt. Stick the LED strip light into the aluminum slot, from top to bottom align and paste
3.Gently squeeze one end of the white shell, clip it into the grove press the shell down and push it to the bottom
4.Adjust the position slightly to align, snap the silicone strip lampshade into the aluminum slot align and fix
5.Install the other two white shells in this way and then cover the top with a black cover
6.Insert the square tube into the base, tighten the screw with a wrench
7.Tighten the whole lamp under the clockwise direction

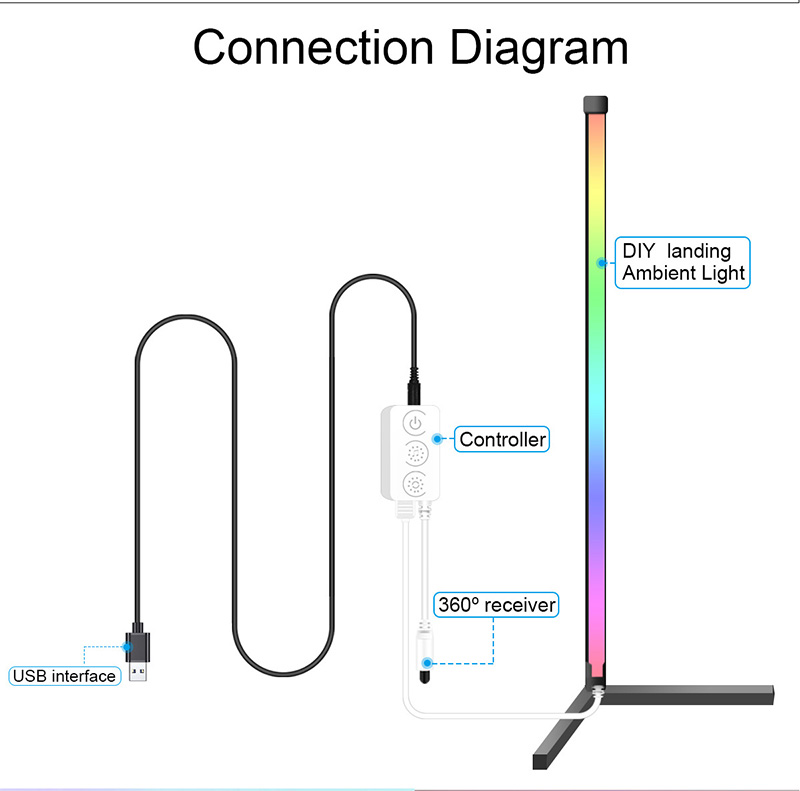

8.Connect the terminal of the lamp with the controller
9.Connect adaptor(If you want to download the mobile app, you can scan the QR code behind the control box
10.Turn on the power to test
LED programmable digital display
Hotels decoration use
Concealed lighting, Cove decoration
Theaters, clubs, shopping malls lighting
Architectural decorative lighting
Boutique atmosphere lighting
Auditorium walk stairway lighting
Hidden groove, Wine cabinet decoration
Show exhibition decoration
|By : Ben Rousseau Date Added: 04/14/2021|
|These lights work great! they are better than expected, They look so pretty at night|
