DC12V 3W WS2811 RGB LED Light Modules For Pixel Dot Art
Check this low voltage 12Volt driven 3W WS2811 addressable RGB color changing LED module lights.
1. Long life and low failure rate
2. Low voltage DC12V, safe to use
3. Low power consumption, 80% energy saving
4. High brightness, RGB full color optional
5. Moisture-proof, waterproof, dust-proof, impact-resistant
6. Easy to install, convenient to use in various display occasions
Standards and Certifications
IC type: WS2811
LED Color: RGB full color
Input Voltage(V): DC12V
Output power: 3W / piece
Working Temperature: -4°F (-20°C) ~ 149°F (65°C)

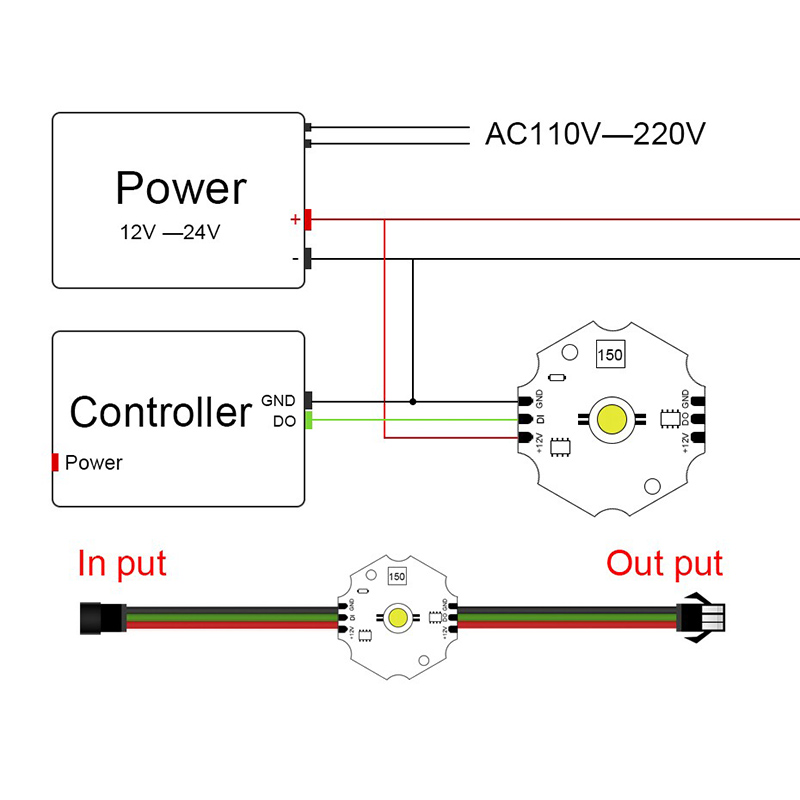

Red Wiring colors: 12v Positive / +
Green Wiring colors: Data Signal
Black Wiring colors: 12v Negative /-

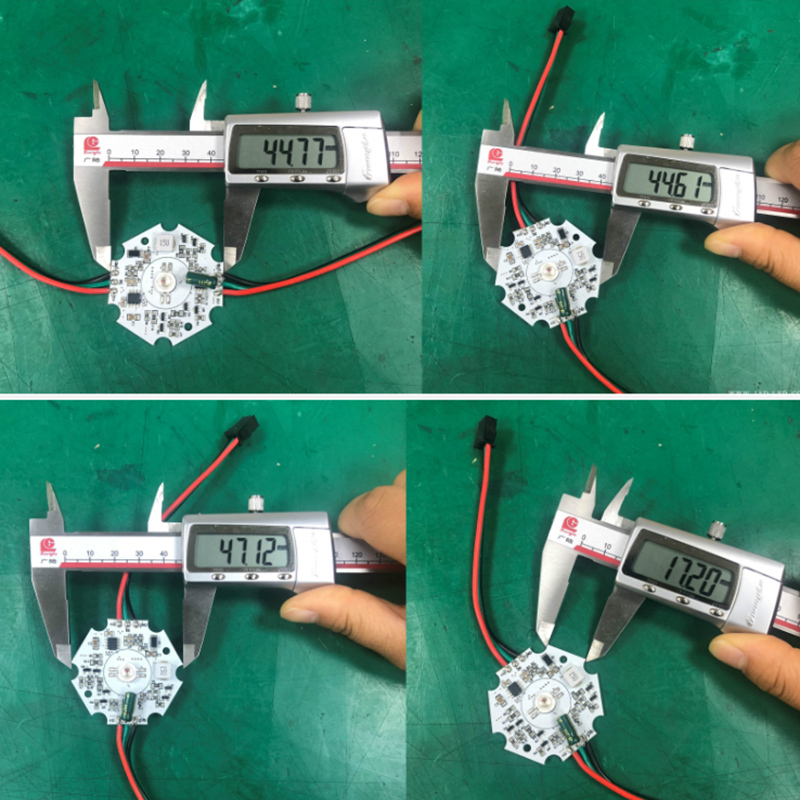

Size: 4.5*4.5cm / 1.77*1.77in
Waterproof Rating: Non
three-dimensional light-emitting word
Channel letters lighting
Light boxes lighting
Landscape layout lighting
Stage decoration lighting
Cove LED lighting
Edge lit signs
Off grid lighting
