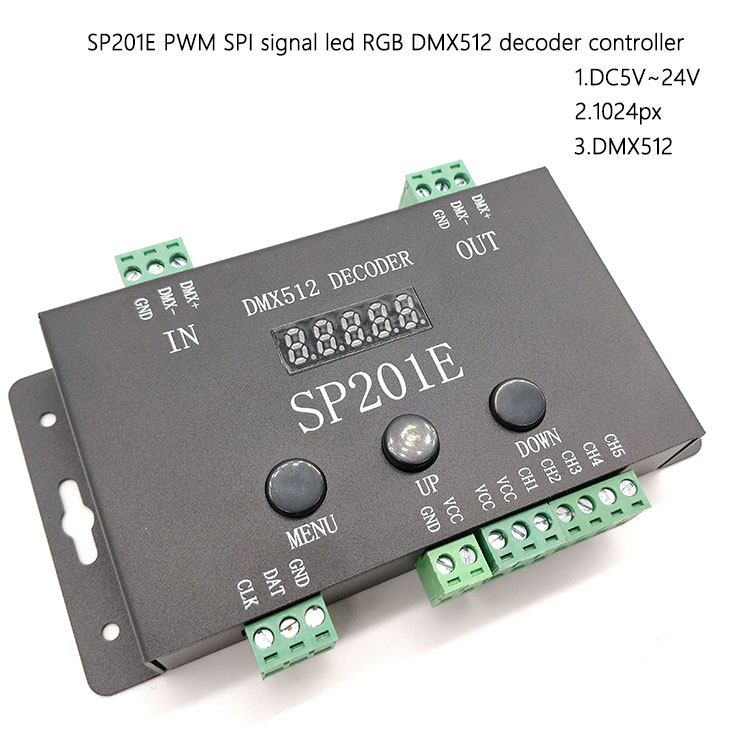

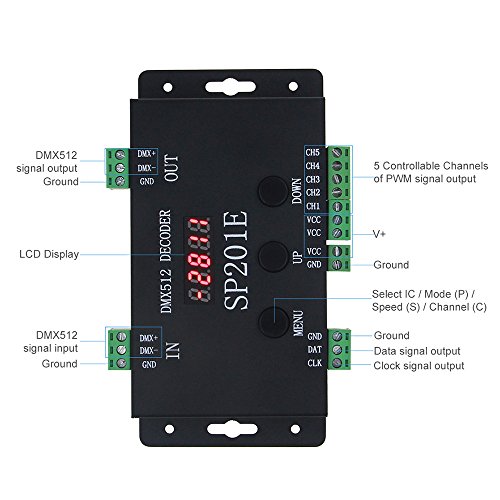

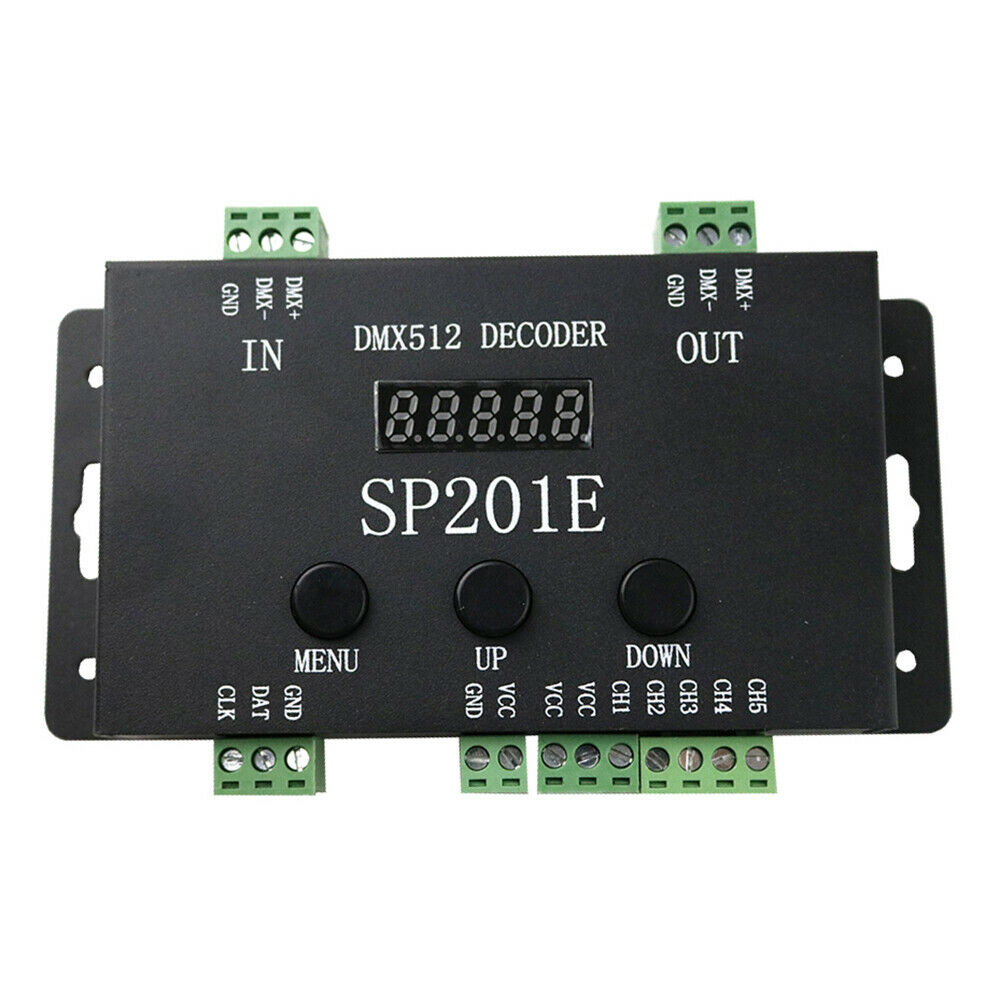

SP201E Addressable RGB Digital Pixel SPI Signal to DMX512 LED Decoder Controller Work With WS2811 WS2815 SK6812 LED Strip Lights
1. Each unit supports up to 2000 channels of decoding.
2. Support simultaneous decoding of colorful led and dream color led.
3. Button operation, digital tube display.
4. Compatible with all kinds of IC, controller buttons are adjustable
5. Wide-voltage power-on, anti-reverse connection, with power-down protection parameter function
6. Multiple controllers can synchronize cascade decoding, and the decoding header can be adjusted.
Model: SP201E Pixel DMX512 Decoder
Working voltage: DC 5V - 24V
Working current: 24mA - 110mA
Control points: 1024 pixels
Output signal: SPI signal
Built-in patterns: 99 kinds
Control mode: key control, 512 console control
Working temperature: -25 degrees C - 85 degrees C

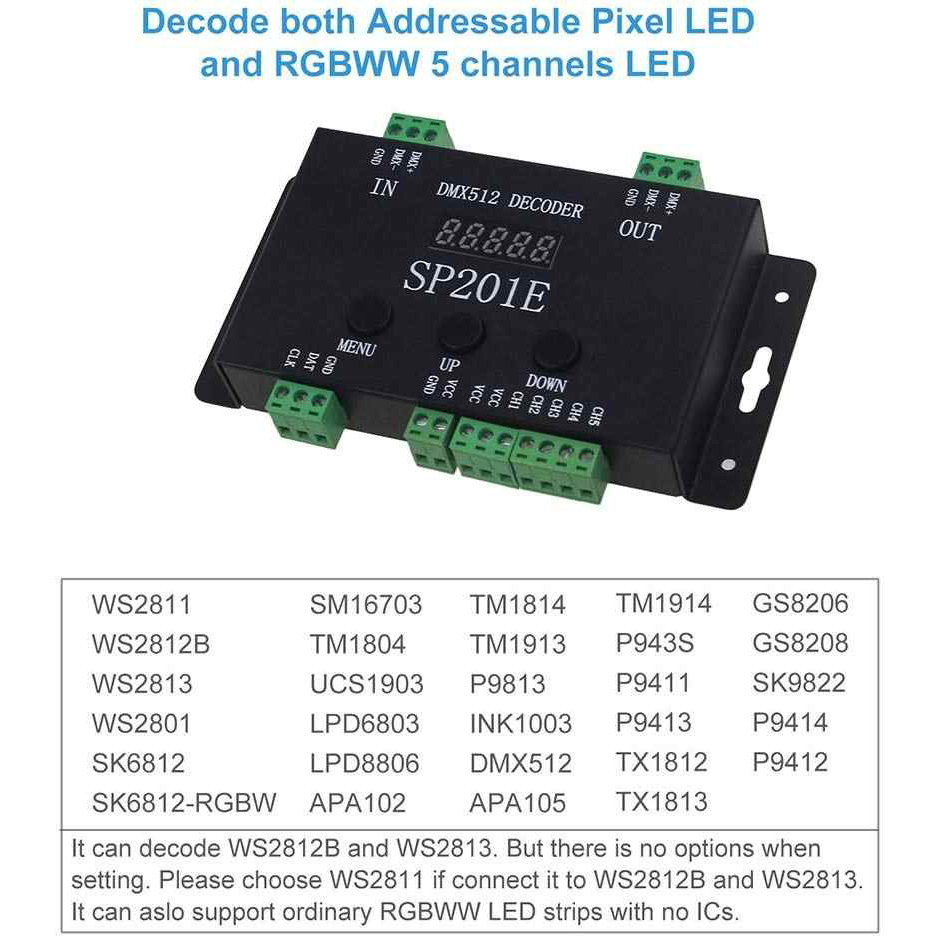

Support IC: Supports common LED driver IC on the market
