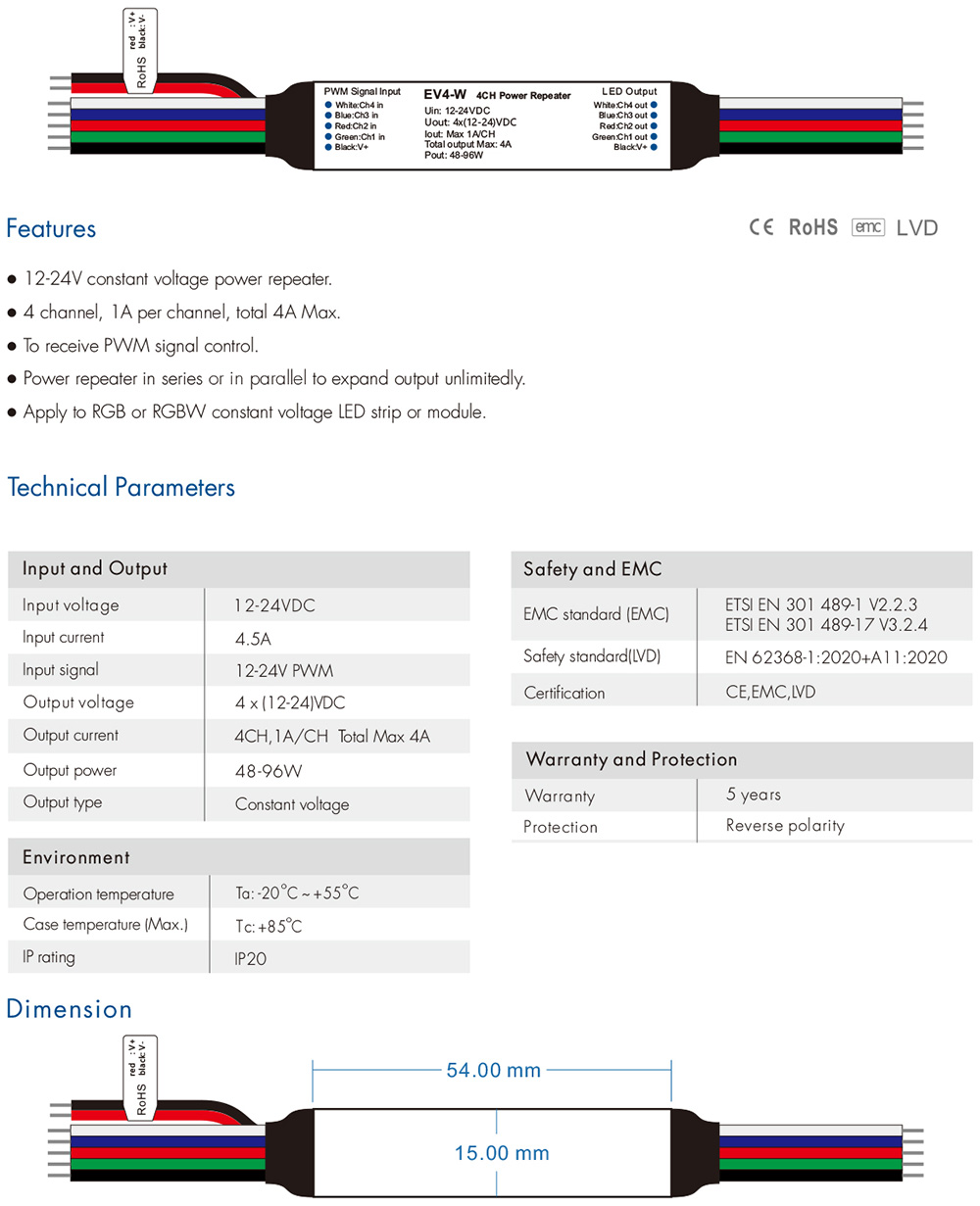

EV4-W 12-24VDC CV RGBW Power Repeater
● 12-24V constant voltage power repeater.
● 4 channel, 1A per channel, total 4A Max.
● To receive PWM signal control.

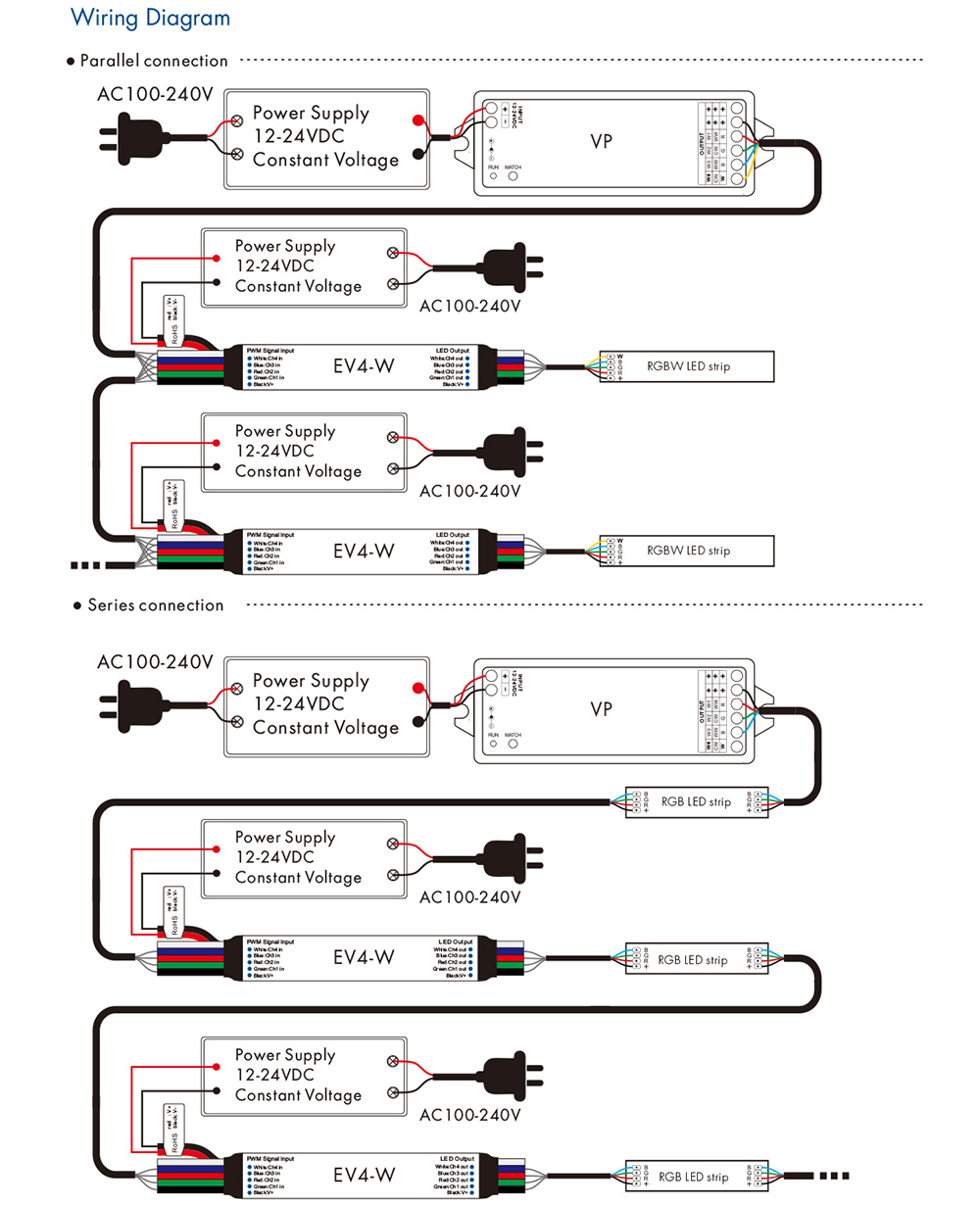

● Power repeater in series or in parallel to expand output unlimitedly.
● Apply to RGB or RGBW constant voltage LED strip or module.
Input and Output
Input voltage: 12-24VDC
Input current: 4.5A
Input signal: 12-24V PWM
Output voltage: 4 x (12-24)VDC
Output current: 4CH, 1A./CH, Total Max 4A
Output power: 48-96W max
Output type: Constant voltage
Safety and EMC
EMC standard (EMC): ETSI EN 301 489-1 V2.2.3; ETSI EN 301 489-17 V3.2.4
Safety standard(LVD): EN 62368-1:2020+A11:2020
Woking Temperature: -20℃～55℃
IP Rating: IP20
Warranty: 5 years
Protection: Reserve polarity
Standards and Certifications
