Linear LED Diffuser Channel Aluminum Profile For 10mm CCT LED Light Strips

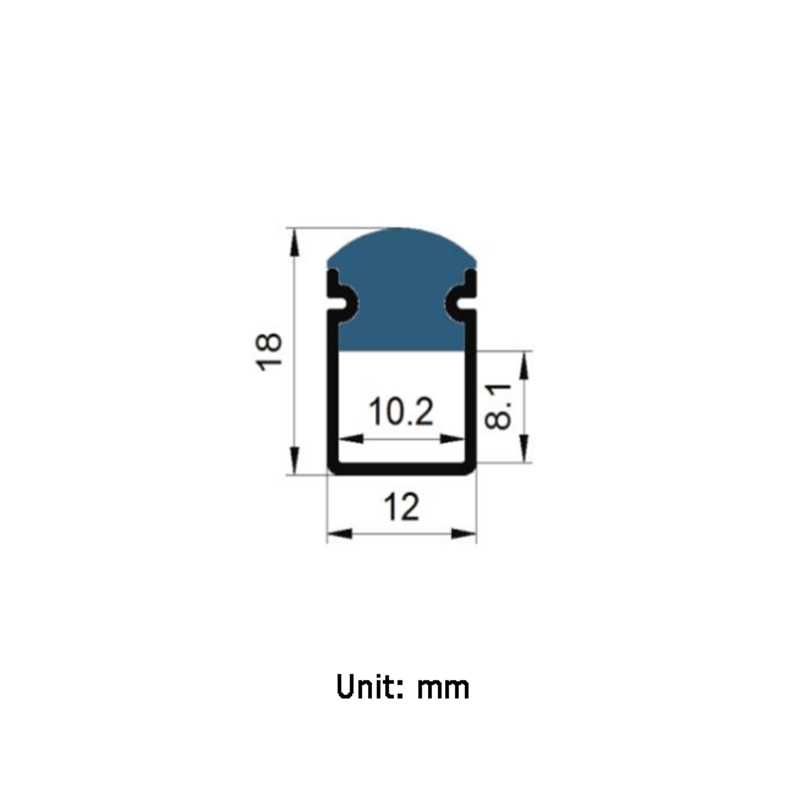

Check this linear led aluminum channel with silicone light diffuser, made of 6063-T5 high-quality aluminum alloy, 10mm/0.39in inner width, available in tunable white CCT led light strips. For different LED lighting diffuser effects, you can choose different led light diffusers, clear, semi-clear, or opal matte. The silver, white, or black led aluminum profiles provide channel color options to your decoration style. Comes with mounting clips, end caps, easy installation, perfect for your LED residential and commercial linear lighting projects, such as furniture, cabinets, ceilings, supermarkets, etc.
As the 2m and 3m led aluminum profiles are too light and long, the package size will exceed the DHL/UPS/TNT requirement(4feet), so extra long transportation costs ($170) will be required. The aluminum led strip lighting channel product itself is soft and easily damaged, so under normal circumstances, 2m and 3m extruded aluminum channels' MOQ is 10 pieces.
If you need a full 20-meter aluminum light diffuser channel, we recommend that you use 20 1-meter long led light strip channel splicing with some channel connectors, both sides of the product using industrial right angle cutting. After installation it does not affect the appearance.
Standards and Certifications
|Material||6063-T5 Aluminum Alloy|
|LED Diffuser||Opal matte diffuser /semi-clear matte diffuser /clear diffuser|
|Accessory||End cap without hole, end cap with wire hole, mounting clips|
|Apply to||10mm 5050/2216/3014/2835/3528 flexible led strip lights|
Applications - Ultimate Guide to LED Aluminum Channel
Residential lighting: wardrobe, cabinet, kitchen, ffurniture, etc.
Commercial lighting: office/supermarket/shopping Mall
Stores shelf LED lighting
Heat sink and physical protection to the LEDs
Interior light design (stairs / storage / floor)
Exhibition boot LED lighting
Backlight or supplementary lighting
