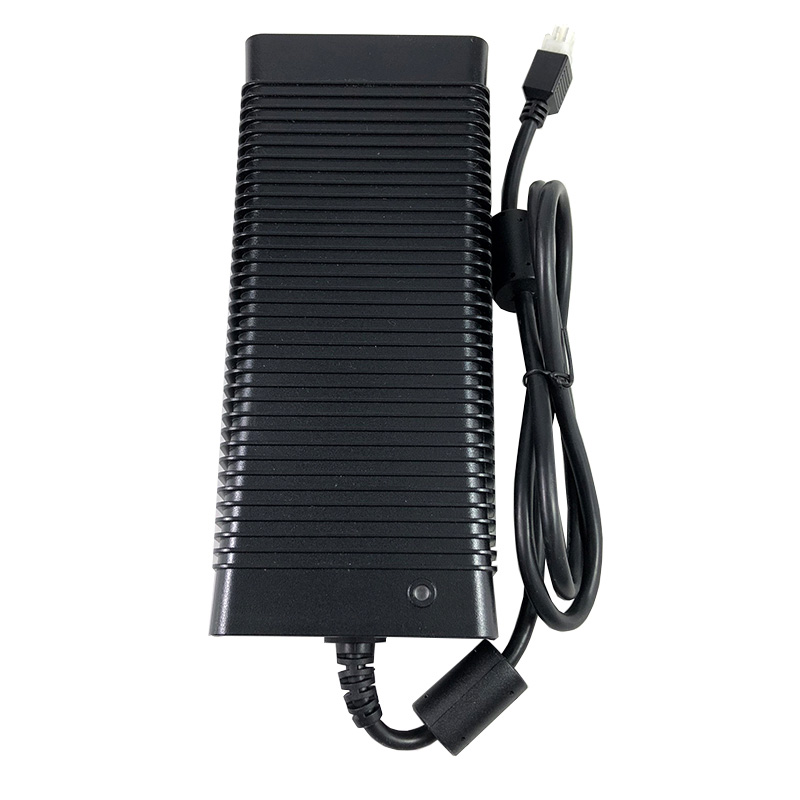

MeanWell DC12V 21A 252W GST280A12 AC To DC Reliable Green Industrial LED Power Adaptor
GST280A12 input voltage 85-264VAC; output voltage is DC12V, output current is 21A, total power is 252W, suitable for DC12V LED light.
In order to avoid power load, we usually support LED strips or other LED lights with power less than 80% of the rated power, so please choose a suitable LED power supply according to the actual LED power adaptor.
This item is power adapter (transformer) of AC -DC Low Voltage for 12V Parapet lights, Spot Light, Wall Washer, Grow Light, Single colour RGB or dream color LED strip lights and led module string.
Please be kindly informed that the total wattage of LED strip lights should not exceed the max wattage 85% of this Power supply adaptor, Otherwise it will affect the brightness of the LEDs and the service life of the power supply.

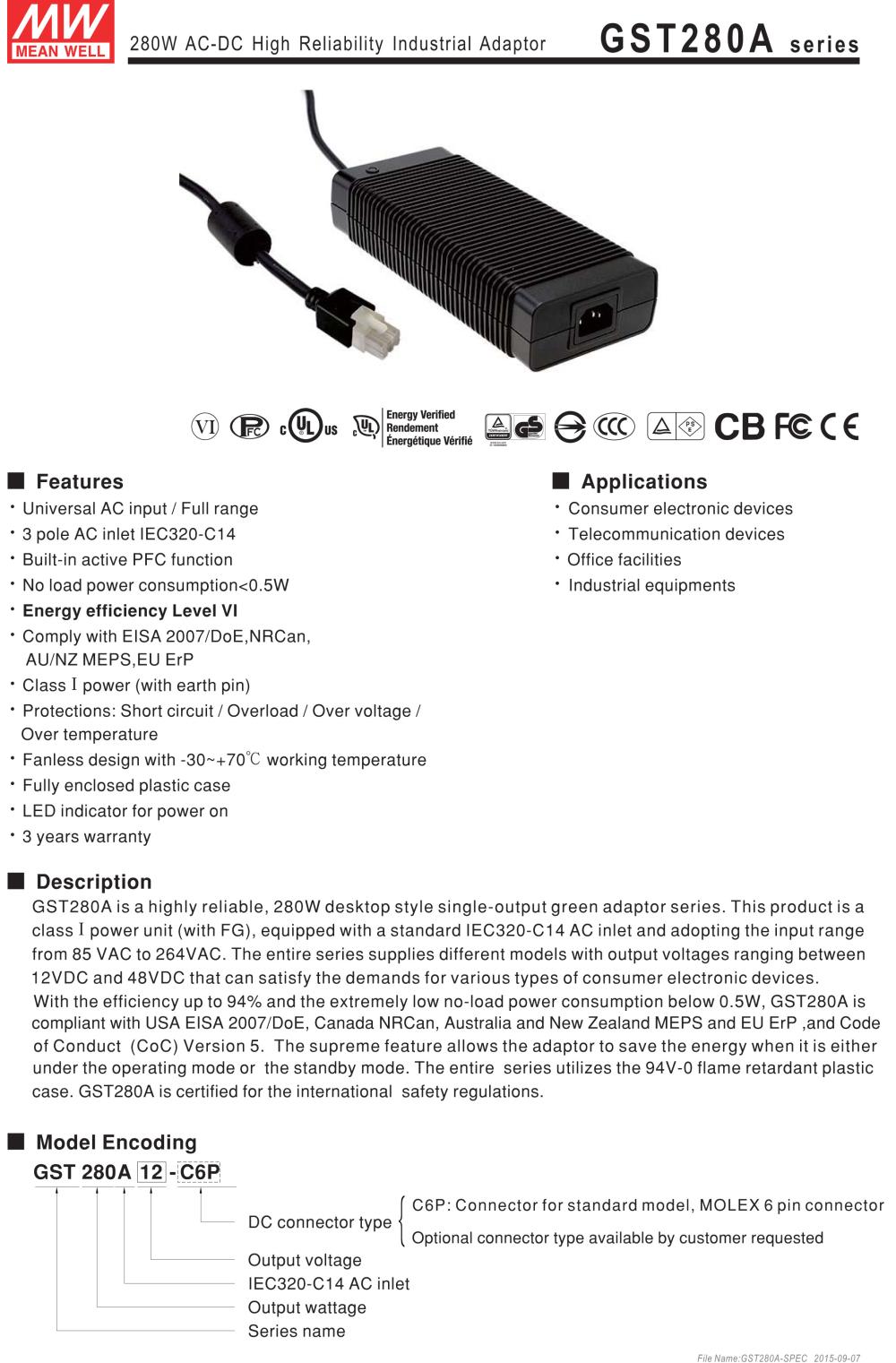

Standards and Certifications
Universal AC input / Full range

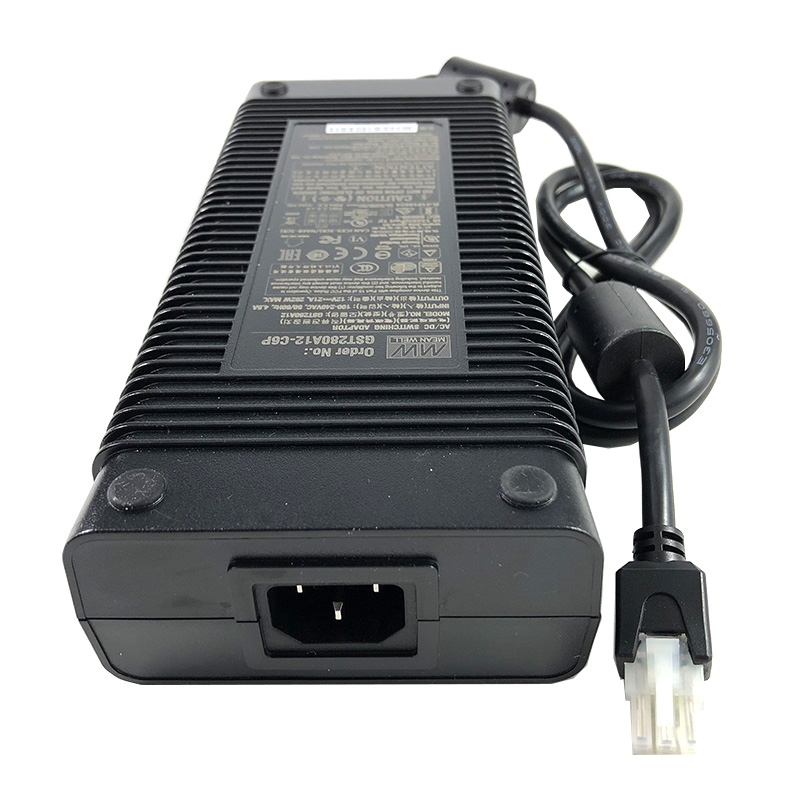

3 pole AC inlet IEC320-C14,Class I power unit
No load power consumption< 0.5W
Energy efficiency Level VI
Comply with EISA 2007/DoE,NRCan, AU/NZ MEPS,EU ErP
Protections: Short circuit / Overload / Over voltage/Over temperature
Fully enclosed plastic case
-30~+70°C wide range working temperature
LED indicator for power on
Built-in active PFC function
3 years warranty

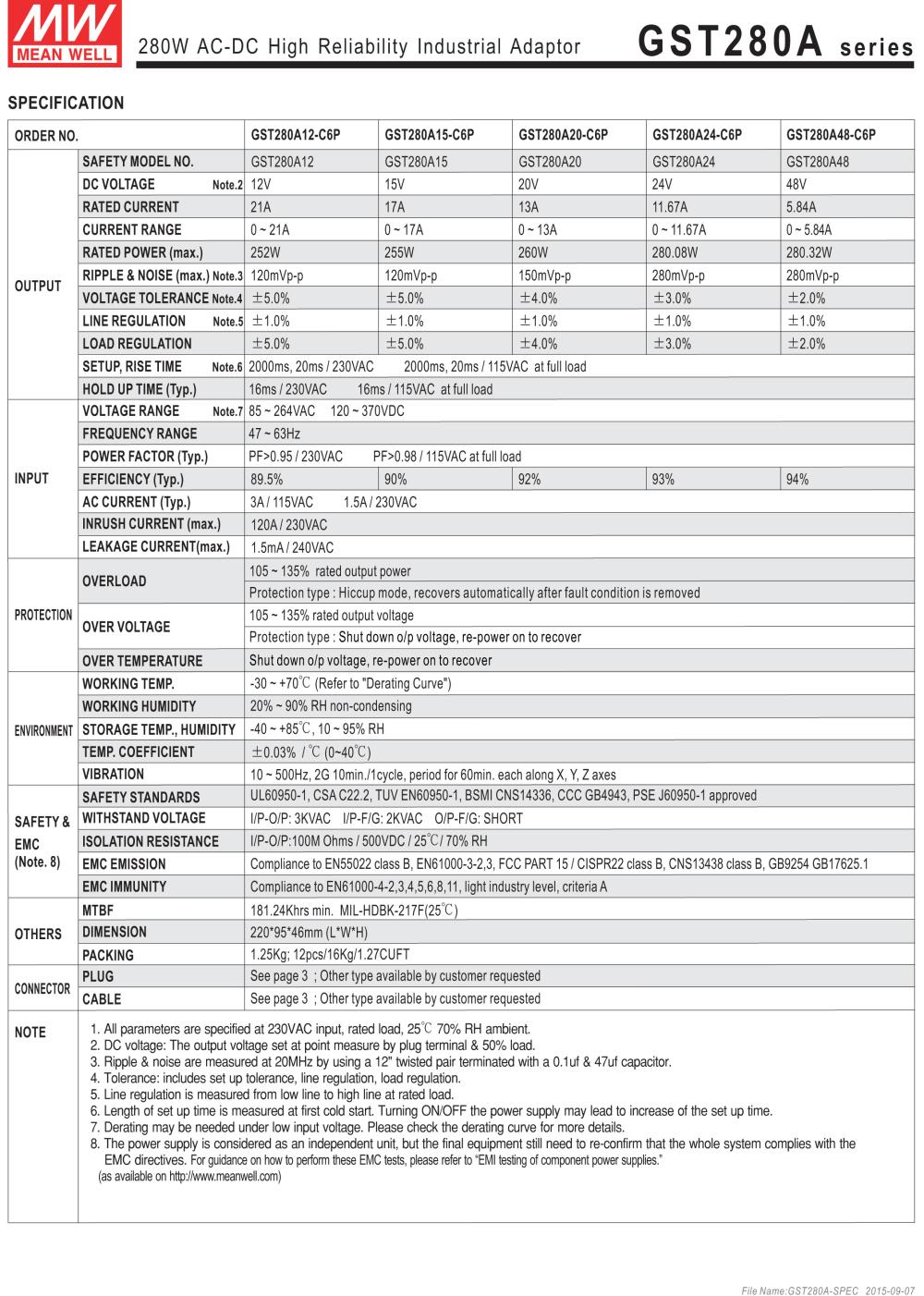

Primary Output Voltage: 12VDC
Output Current: 21A
Maximum Output Power: 252W
AC Power Cord: INCLUDED, RECOMMEND 38050
Input Voltage: 85 to 264VAC
Input Frequency: 47 to 63
Maximum Input Current: 3A/115VAC, 1.5A/230VAC

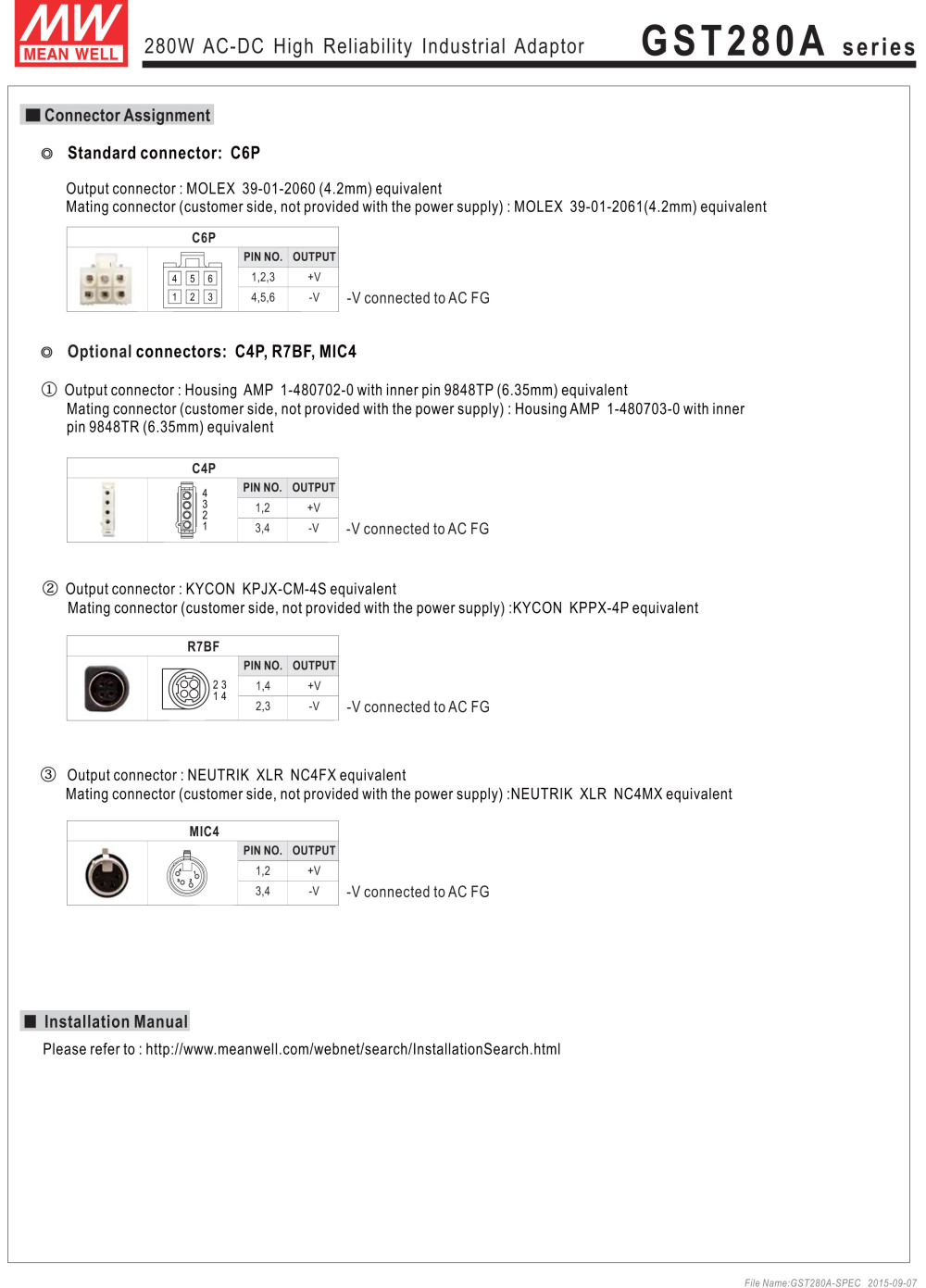

Output Connector Type: MOLEX 39-01-2060
Number of Outputs: 1
Product Type: AC to DC Power Supply
Agency Approvals: UL/CUL/TUV/BSMI/CCC/FCC/CE
Minimum Isolation Voltage: 3000
Operating Temperature-Min (Cel): -30
Operating Temperature-Max (Cel): 70
Product Note: Level VI
Type: Auto Switching
Style: Desktop Adapter

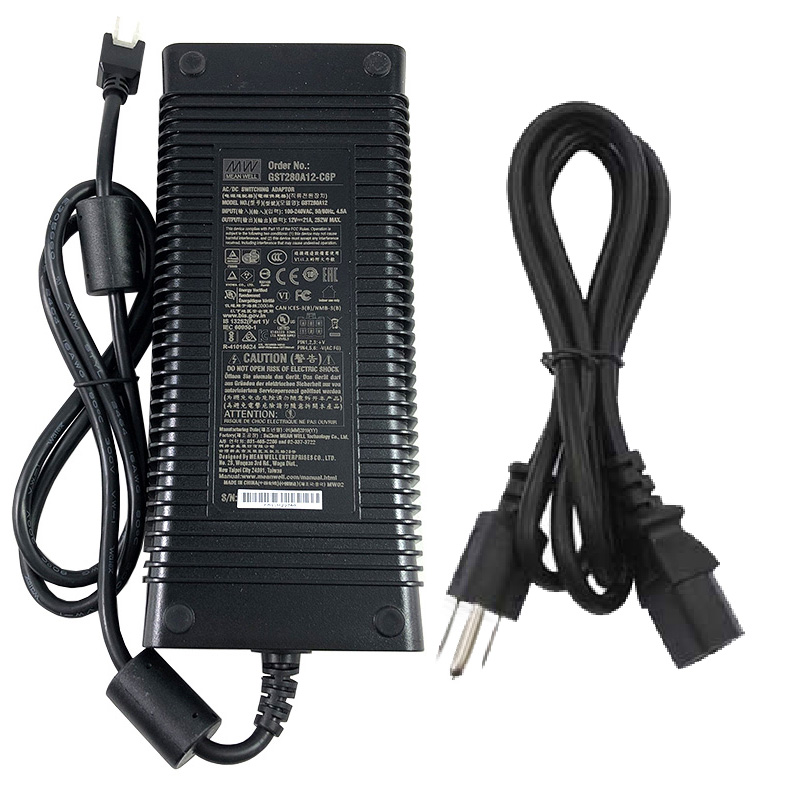

1* GST280A12 LED power adaptor
