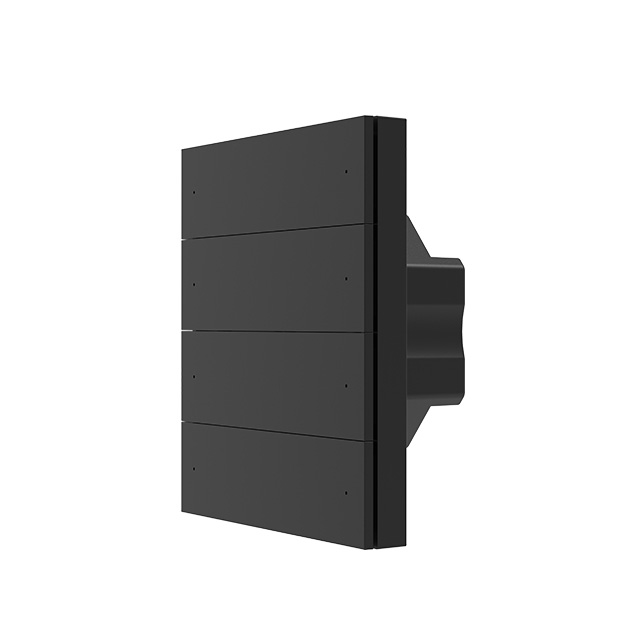

PK8 100-240VAC 6/8 Scenes & 4/8 Zones Push Button LED Wall Panel Controller

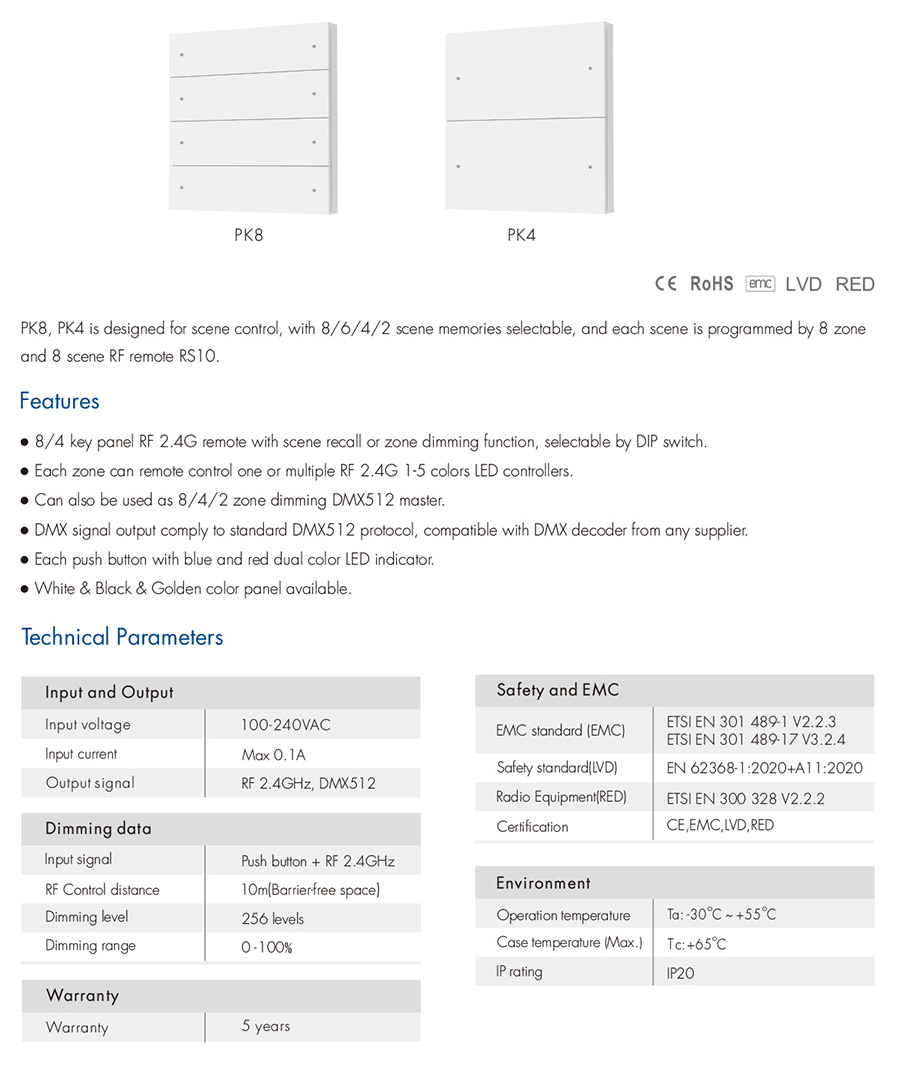

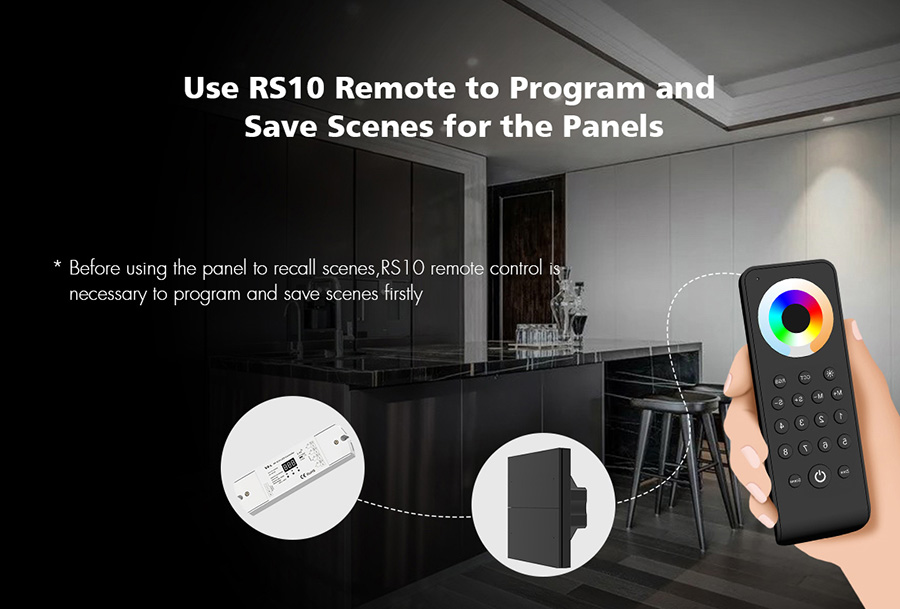

PK8, PK4 is designed for scene control, with 8/6/4/2 scene memories selectable, and each scene is programmed by 8 zone and 8 scene RF remote RS10.
● 8/4 key panel RF 2.4G remote with scene recall or zone dimming function, selectable by DIP switch.
● Each zone can remote control one or multiple RF 2.4G 1-5 colors LED controllers.
● Can also be used as 8/4/2 zone dimming DMX512 master.
● DMX signal output comply to standard DMX512 protocol, compatible with DMX decoder from any supplier.
● Each push button with blue and red dual color LED indicator.

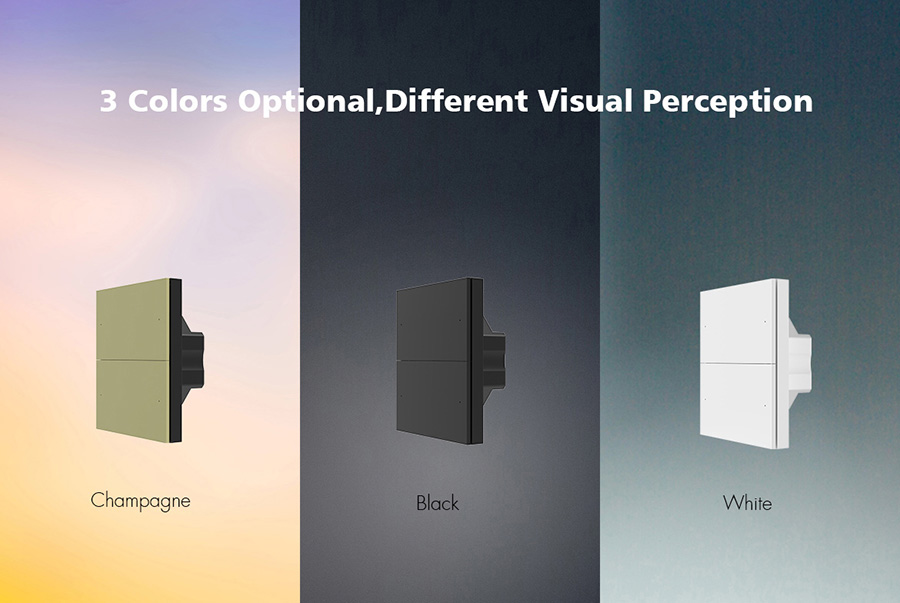

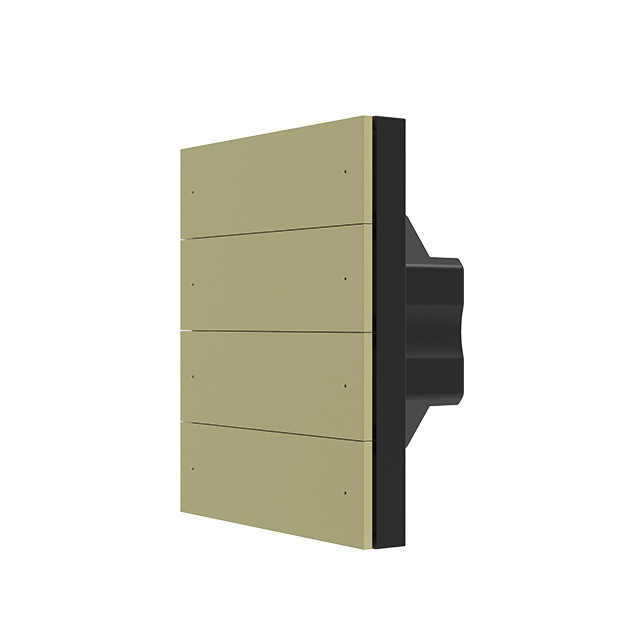

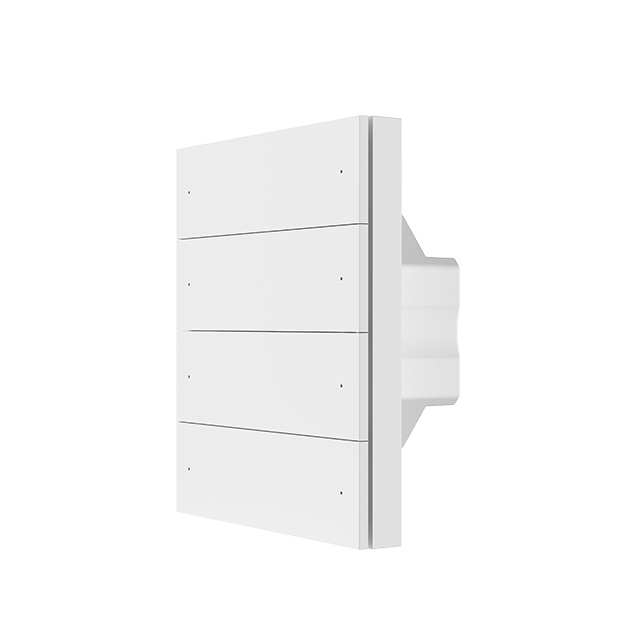

● White & Black & Golden color panel available.
Standards and Certifications
Input and Output

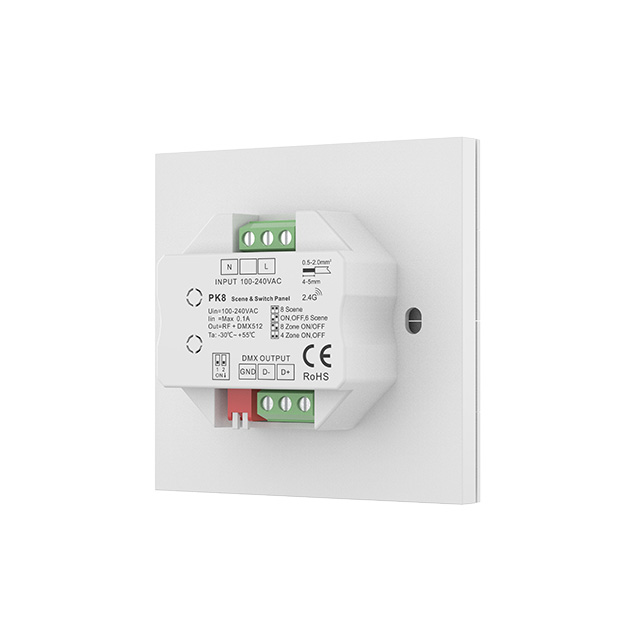

Input voltage: AC100-240V
Output signal: 2 x 0/1-10V
Input current: RF 2.4GHz, DMX512
Input signal: Push button + RF 2.4GHz
RF Control distance: 10m(Barrier-free space)
Dimming level: 256 levels
Dimming range: 0 -100%
Operation Temperature: -30℃~+55℃
Case Temperature(MAX.): +65℃
Warranty: 5 years
