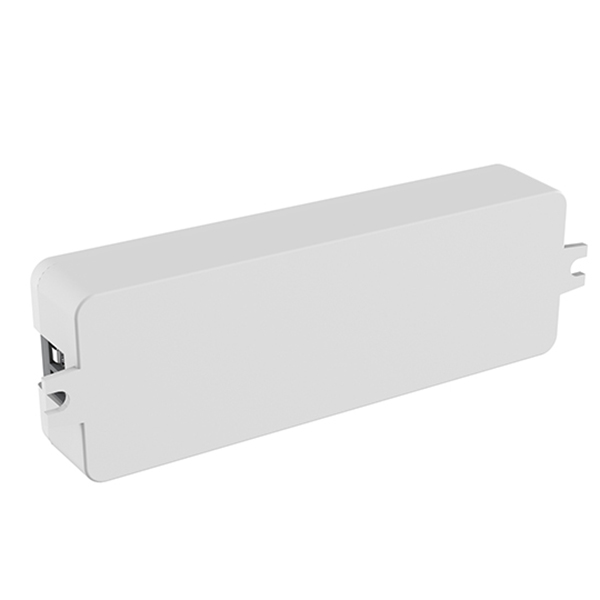

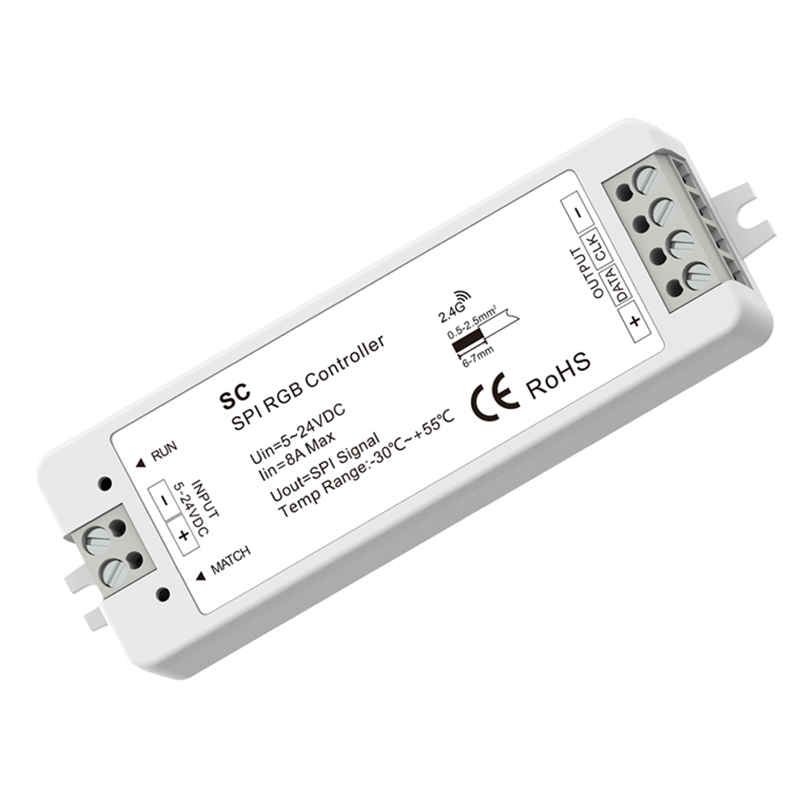

SC 1024 dots RF SPI RGB Controller, Mini-style Multi-pixel RGB RF LED controller
● Mini-style multi-pixel RGB RF LED controller with SPI output, match with RF 2.4G RGB/RGBW remote control.
● Compatible with 32 kinds digital IC RGB or RGBW LED strip, IC type and R/G/B order can be set.
Compatible ICs: TM1803, TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, UCS2903, UCS2909,
UCS2912, WS2811,WS2812, TM1829, TLS3001, TLS3002, GW6205, MBI6120, TM1814B, SK6812, UCS8904B,
LPD6803, LPD1101, D705, UCS6909, UCS6912, LPD8803, LPD8806, WS2801, WS2803, P9813, SK9822,
● 32 kinds dynamic mode, include horse-race, chase, flow, trail or gradual change style.

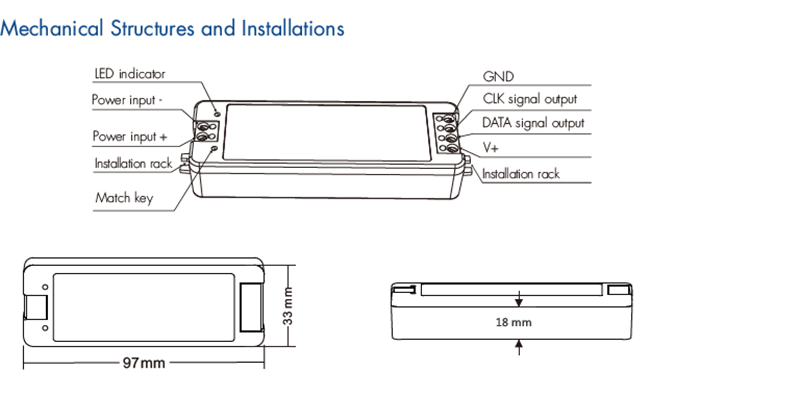

Match Remote Control
Short press match key, immediately press on/off key of the remote.
Press and hold match key for 5s to delete all match, The light blinks 5 times means all matched remotes were deleted
Input and Output
Input voltage: DC5-24V
Power consumption: 1W
Input signal: RF 2.4GHz
Output signal: SPI(TTL)
Dynamic mode: 32
Control dots: Max 1024 pixels
Warranty and Protection
Warranty: 5 years
Protection: Reverse Polarity
Safety and EMC
EMC standard (EMC): EN55032:2015,EN61000-3-2:2014,EN61000-3-2:2013,EN55024 :2010/A1:2015
Safety standard(LVD): EN 61347-1:2015, EN 61347-2-11:2015
