DC12/24V Max 16A, Generic 2.4Ghz 30M Control Touch Panel LED Wireless RF Remote Controller For Color Temperature Led Strips

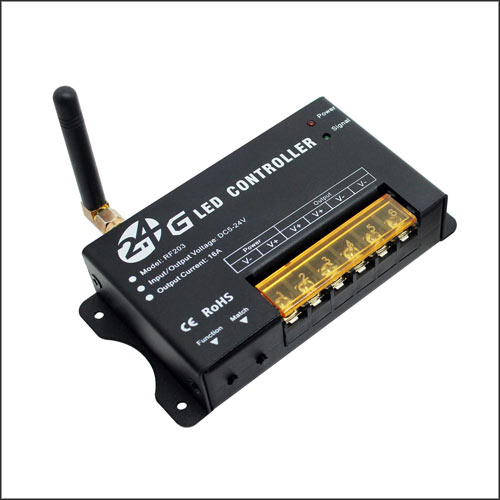

This 2.4G controller is newly introduced wireless high-power LED controller of our company. It equips with touch remote control, touch remote control adopts high precision capacitance touch control technology, you can select the color you need by one button. It is convenient and easy. Each controller has a globally unique address code, in order to prevent confusion caused by controlling repeated address code. Each controller can be equipped with four remote controls, can achieve multiple controllers synchronization control. It is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass wall light etc. It has many advantages such as convenient to connect, easy to use and others. It can achieve single control and group control, easy for user to use.
working temperature: -20-60℃
supply voltage: DC5V-24V
output: 1 channels
connection mode: common anode
external dimension: L120ΧW62ΧH24mm
packing size: L185ΧW145ΧH52 mm
net weight: 220g
gross weight: 314g
static power consumption: <1W
output current: <16A
output power: 12V:<192W, 24V:<384W

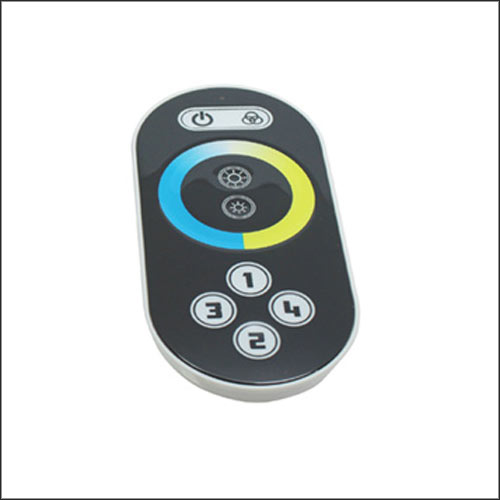

Touch Remote Control
working temperature: -20-60℃
power supply mode: AAA * 3
supply voltage: 1.5V * 3
transmission frequency: 2.4Ghz
standby power consumption: 0.015mW
standby current: 60uA
working current: 200uA
emission current: 10mA
remote distance: about 30m
standby time: 6 months
remote control weight: 94g
There are 64 touch keys (points) on the panel of touch remote control, the function of each key is as below:
(1) on/off key: you can turn on/off controller output at any state;
(2) pause key, in dynamic mode, you can make the controller stop at the current state;
(3) mode increase key, when the current control mode is pulley mode, if you want to realize the mode of M+ key, you can press this button;
(4) mode reduce key, when the current control mode is pulley mode, if you want to realize the mode of M+ key, you can press this button;
(5) brightness increase key, every time you press this button, the brightness series add 1, altogether 25 levels;
(6) brightness reduce key, every time you press this button, the brightness series minus 1, altogether 25 levels;
(7) speed increase key, every time you press this button, the speed series add 1, altogether 100 levels;
(8) speed reduce key, every time you press this button, the speed series minus 1, altogether 100 levels;
(9) multicolor pulley touch key, static mode choose key, more than 55 touch points, the button has two function:
1) pulley static color choice key, so when the current control mode is M key mode (color), if must realize pulley static color, you can press this key;
2) pulley color switch key, you can switch static color as the pulley shown.

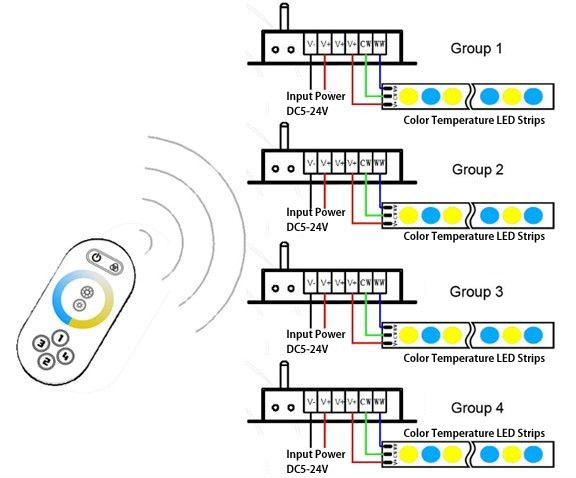

1. Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power；
2. Power supply voltage range is DC5~24V, more than voltage range maybe burn out the controller.
3. When not use touch remote control for long time, we suggest you to take down the batteries.
1 x 2.4G led dimmer controller
1x Instruction Manual
1x Touch remote control
