Recessed Aluminum LED Strip Channel With Flange For 12mm LED Strip Lighting
- $39.98 $29.9825% off
- $59.98 $51.9813% off
- $49.98 $40.9818% off
- $60.00 $39.9833% off
- $36.98 $24.9832% off
The LED aluminum channel is based on the 8mm/10mm/12mm led light strip to uniform LED light output, reduce LED glare, and obtain soft linear light. Aluminum led diffuser channel is a good light strip heatsink and can prolong its lighting life.

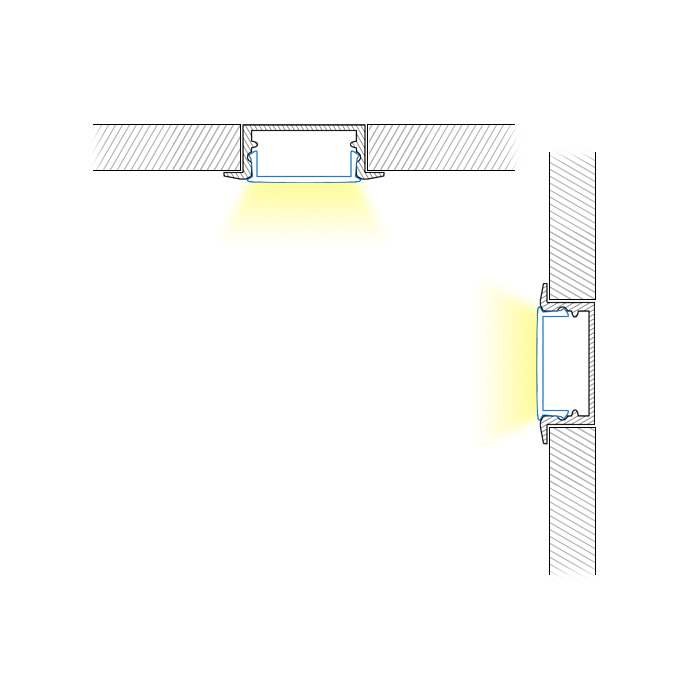

This aluminum light diffuser can be embedded in the wall or cabinet, or directly fixed on the object's surface through mounting clips. Aluminum led channel with flange hides groove gaps in installation.
There are three PC material light diffusers (clear, semi-clear, and opal matte), two aluminum channel lengths (3.28ft/1m and 6.56ft/2m), and three aluminum colors (silver, white, and black anodized aluminum) to choose from.
As the 2m and 3m led aluminum profiles are too light and long, the package size will exceed the DHL/UPS/TNT requirement(4feet), so extra long transportation costs ($170) will be required. The aluminum led strip lighting channel product itself is soft and easily damaged, so under normal circumstances, 2m and 3m extruded aluminum channels' MOQ is 10 pieces.
If you need a full 20-meter aluminum light diffuser channel, we recommend that you use 20 1-meter long led light strip channel splicing with some channel connectors, both sides of the product using industrial right angle cutting. After installation it does not affect the appearance.
|Material||6063-T5 Aluminum Alloy|
|Aluminum Color||Silver /White /Black|

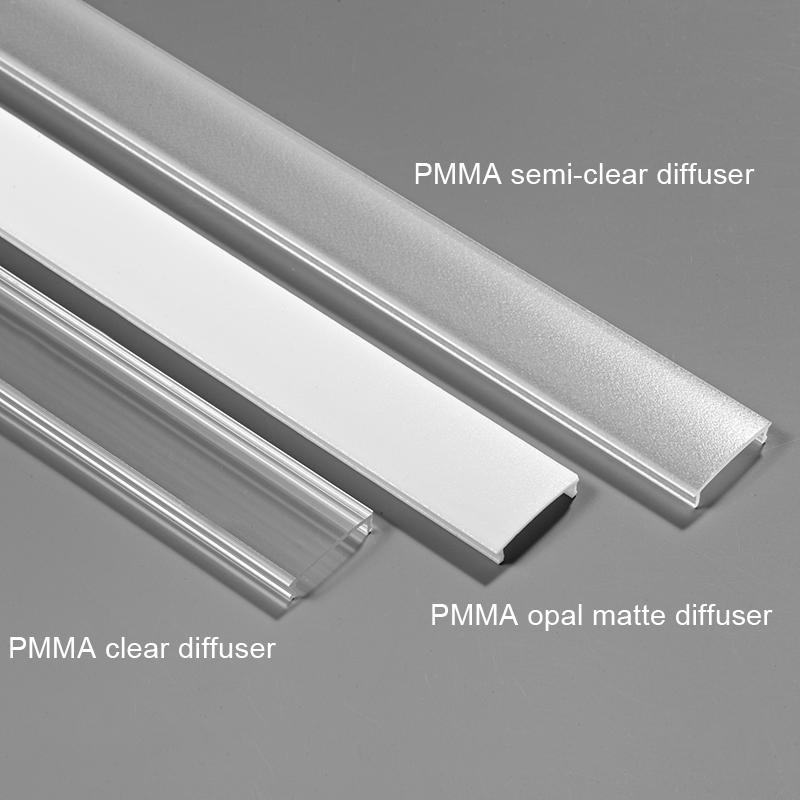

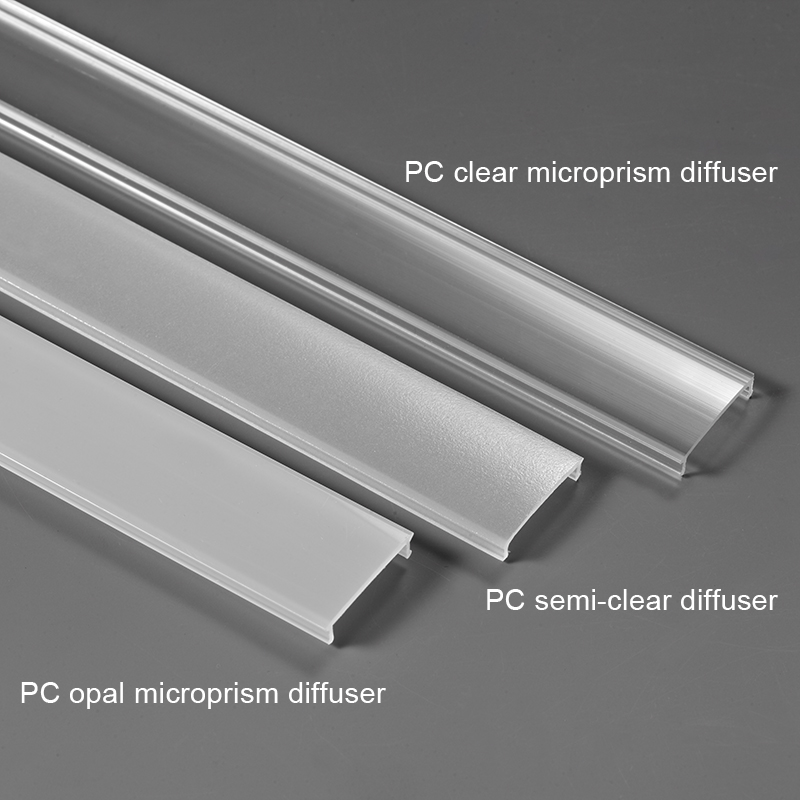

|LED Diffuser||PMMA opal matte diffuser /PMMA semi-clear matte diffuser /PMMA clear diffuser /PC opal microprism diffuser /PC semi-clear diffuser /PC clear microprism diffuser|

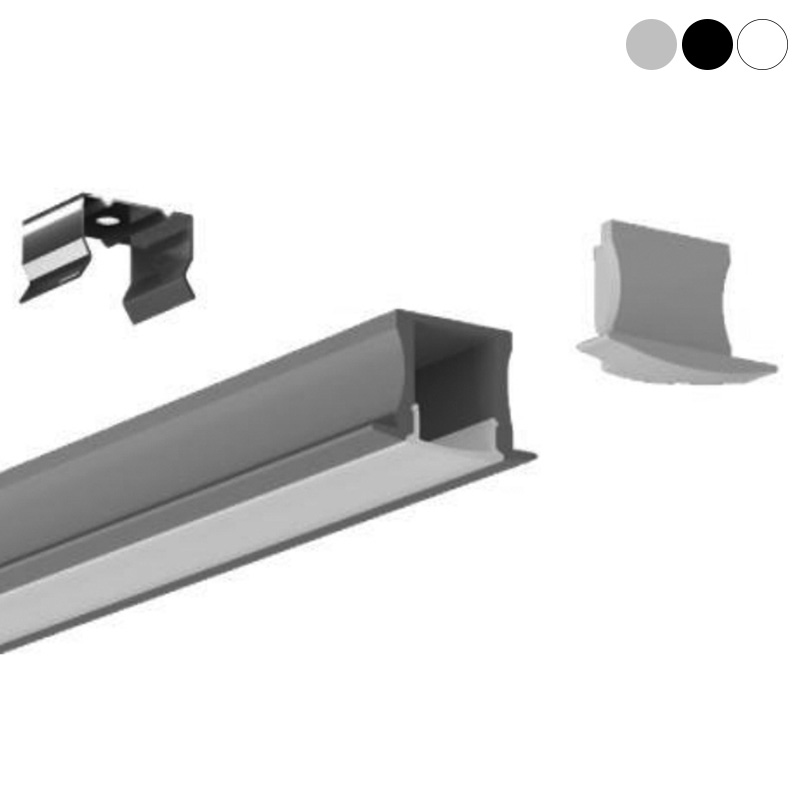

|Accessory||End cap without hole, end cap with wire hole, mounting clips|
|Apply to||8mm, 10mm, or 12mm flexible led strip lights|
1* Recessed Aluminium LED Profile With Diffuser
1* End Cap Without Hole
1* End Cap With Wire Hole
2* Mounting Clips Per Meter

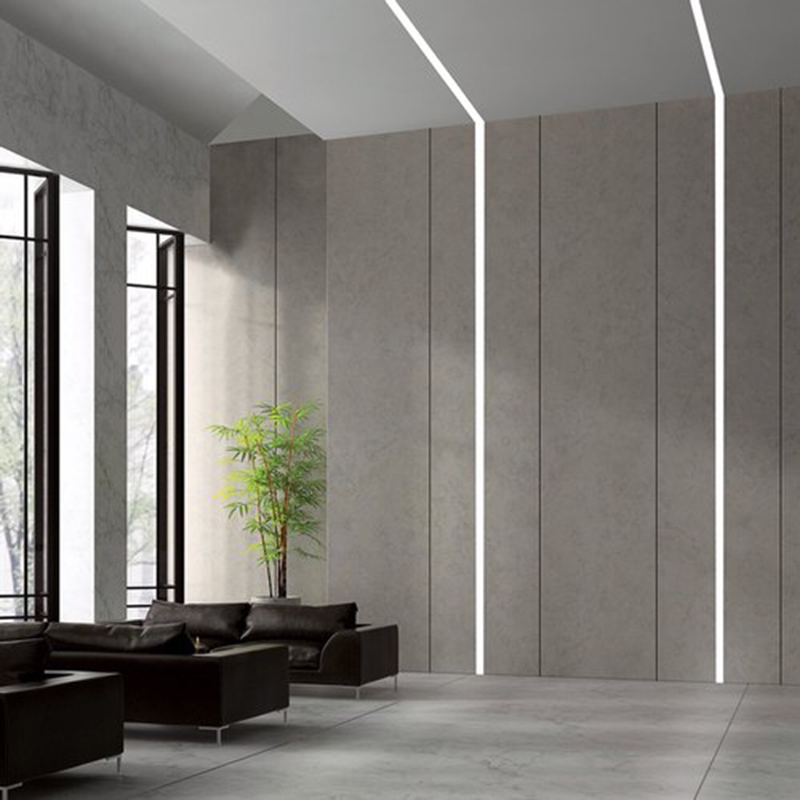

Applications - Ultimate Guide to LED Aluminum Channel
1. Furniture production (kitchen/office)
2. Stores shelf LED lighting
3. Heat sink and physical protection to the LEDs
4. Independent LED lamp
5. Interior light design (stairs / storage / floor)
6. Exhibition boot LED lighting
