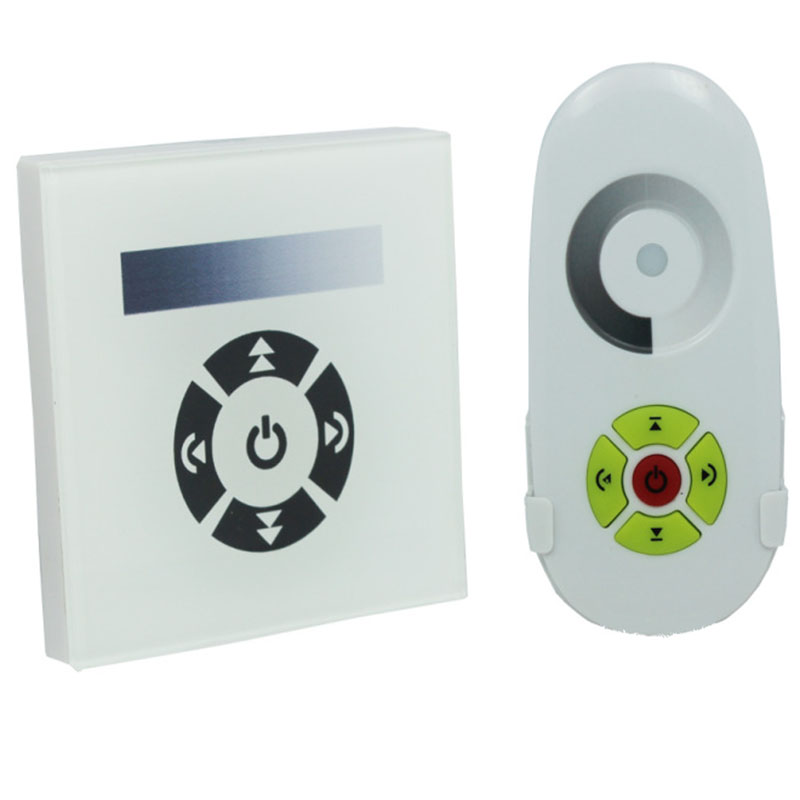

TM062E DC12V-24V 1 Channel Touch Panel Controller, With Remote Control

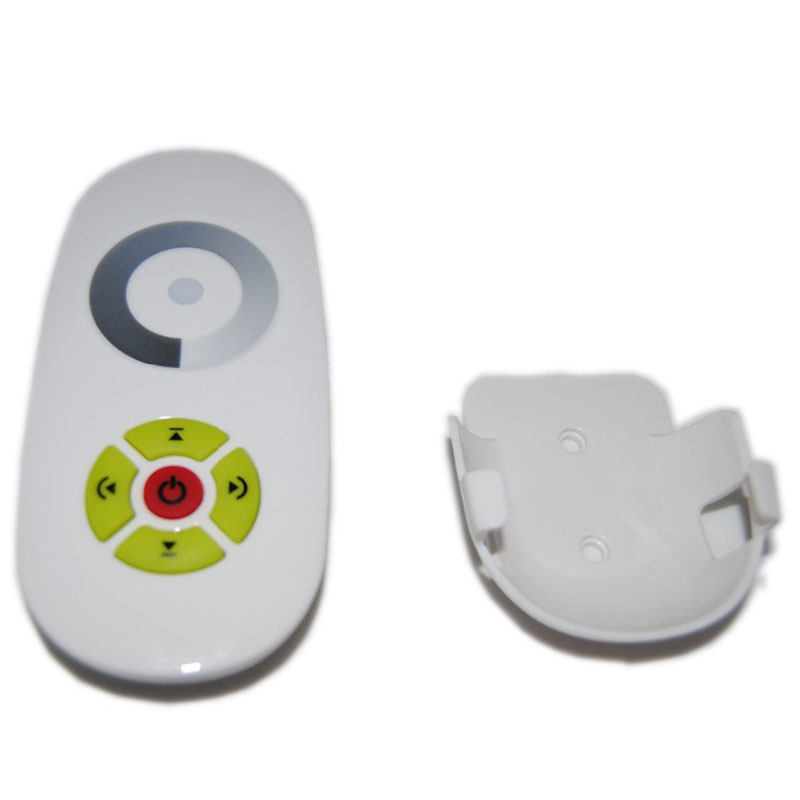

Touch panel two-piece series is a new high-end controller which newly developed by our company,it adopts glass panel design, is beautiful and fashionable in appearance. It adopts high precision capacitance touch control chip, increases the touch sensitivity, reduces trigger which caused by mistake. It is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, panel lights etc., it has many advantages such as convenient to connect, easy to use and others. Touch remote control with advanced touch design, through combine the touch panel controller and remote control to achieve flexible control. Touch remote control good performance, looks beautiful, stylish, easy to use.
Working temperature: -20-60℃
Power supply voltage: DC 12～24V
Output voltage: DC 12～24V
Output: 1 channel
Connect way: common anode

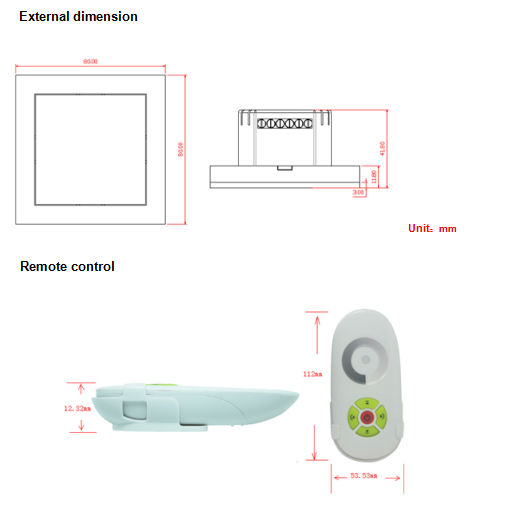

External dimension: L80*W80*H41.8 mm
Packing size: L105*W105*H53 mm
Net weight: 127g
Gross weight: 177g
Static power consumption: <1W
Output current: 8A
Working frequency: 1KHz
Output power: DC12V:<96W，DC24V:<196W
Working temperature: -20-60℃
Power supply mode: AAA * 2
Power supply voltage: 1.5V*2
Stand-by power consumption: 0.025mW
Static current: 85uA
Working current: 26mA
Remote control distance: >20m
Stand-by time: 6 month
