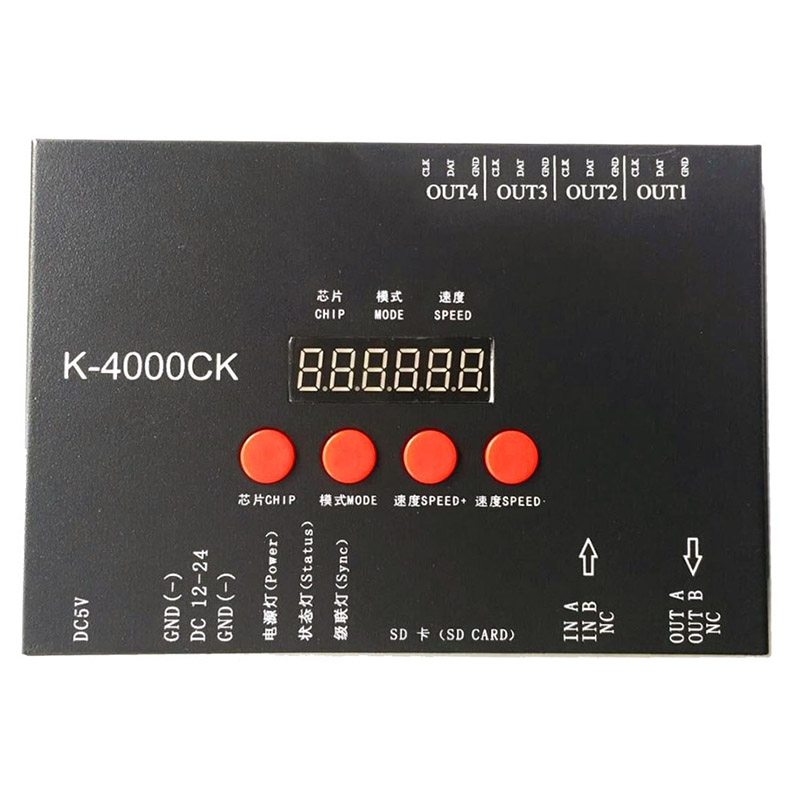

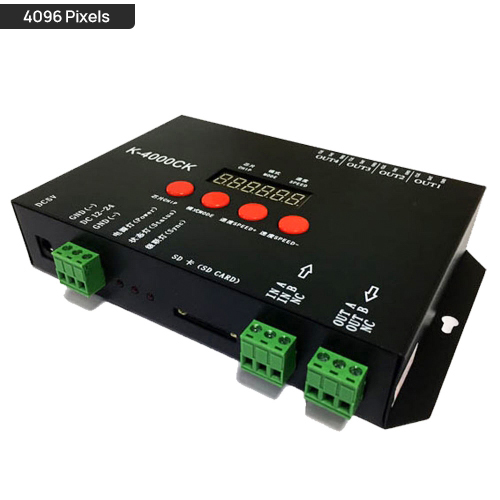

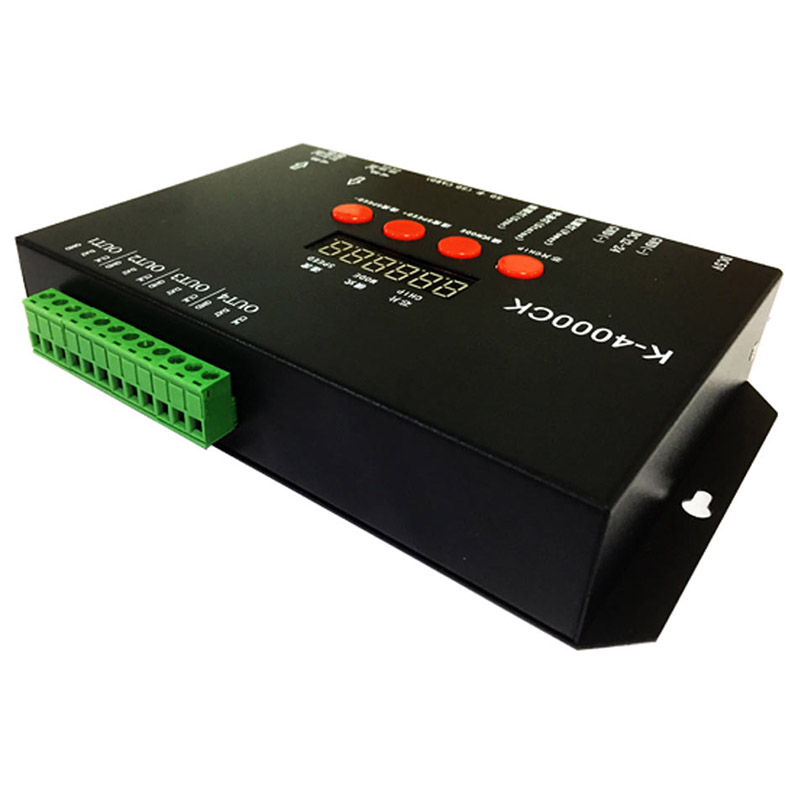

5V-24V Input K-4000CK SD Card SPI Pixel Digital Programmable LED Controller - 4 Ports 4096 Pixels
Type: SD card
Format：FAT or FAT32
Working power：DC 5V or DC 12-24V input
Power consumption: 5W
upgraded version of T-4000, SD card off-line
32-65536 Gray, Support software Gamma correction.
Support point, line, surface, rules, and special-shaped handle.
Four-port output, each can support 1024 pixels.
Off-line(SD Card) control, playback content stored in the SD card.
K-4000CK stores a maximum of 16 programs, copy multiple files to the SD card in order.
The program must be named in orders . Ex. :00_1.led, 01_1.led, 02_1.led.
Compatible with a single line or double line chips.
Click here to download the latest LED editor software and its operating manual
Support chips（PC Software Select K-8000-RGB）
00: UCS1903,1909,1912, 2903, 2904, 2909,2912; TM1803,1804,1809,1812;
SM16703, 16709,16712; WS2811, WS2812, WS2813, WS2815, WS2818;
INK1003; LX3203,1603,1103; GS8205,8206; SK6812（Support up to 1024*4=4096 pixels）
01: SM16716,16726（Support up to 1024*4=4096 pixels）
02: P9813（Support up to 1024*4=4096 pixels）
03: LPD6803（Support up to 1024*4=4096 pixels）
04: LX1003,1203（Support up to 1024*4=4096 pixels）
05: WS2801（Support up to 1024*4=4096 pixels）
06: LPD1886（Support up to 1024*4=4096 pixels）
07: TM1913（Support up to 1024*4=4096 pixels）
08: TM1914（Support up to 1024*4=4096 pixels）
09: P9883, P9823（Support up to 1024*4=4096 pixels）
10: DMX（support up to 512*4=2048 pixels, suggest to support ≤320*4=1280 pixels）
11: DMX 500K（support up to 512*4=2048 pixels, suggest supporting ≤320*4=1280 pixels）
12: DMX 250K-CZF(support up to 512*4=2048 pixels, suggest to support ≤320*4=1280 pixels）
13: DMX 250K-CZF （support up to 512*4=2048 pixels, suggest to support ≤320*4=1280 pixels)
