DC12/24V Max 24A 8A3CH , TM06 Wall Install Series Glass panel Dimmer Controller for single color led lighting
Wheel touch panel dimmer is a new high-end controller which newly developed by our company. its control mode is touch control, you could adjust light to the appropriate lighting brightness in accordance with your actual need. It adopts glass panel design, is beautiful and fashionable in appearance. It adopts high precision capacitance touch control chip, increases the touch sensitivity, reduces trigger which caused by mistake. It is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light etc. It has many advantages such as convenient to connect, easy to use.
Working voltage: DC 12~24V
Working temperature: -20~60 Celsius
Shell Color: white and black
Connection mode: common anode
Output: 1 channel
Static power consumption: <1W
Output current: <8A
Output power: <96W (12V), <192W (24V)
Net weight: 255g

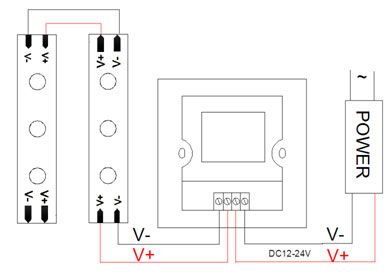

How to use

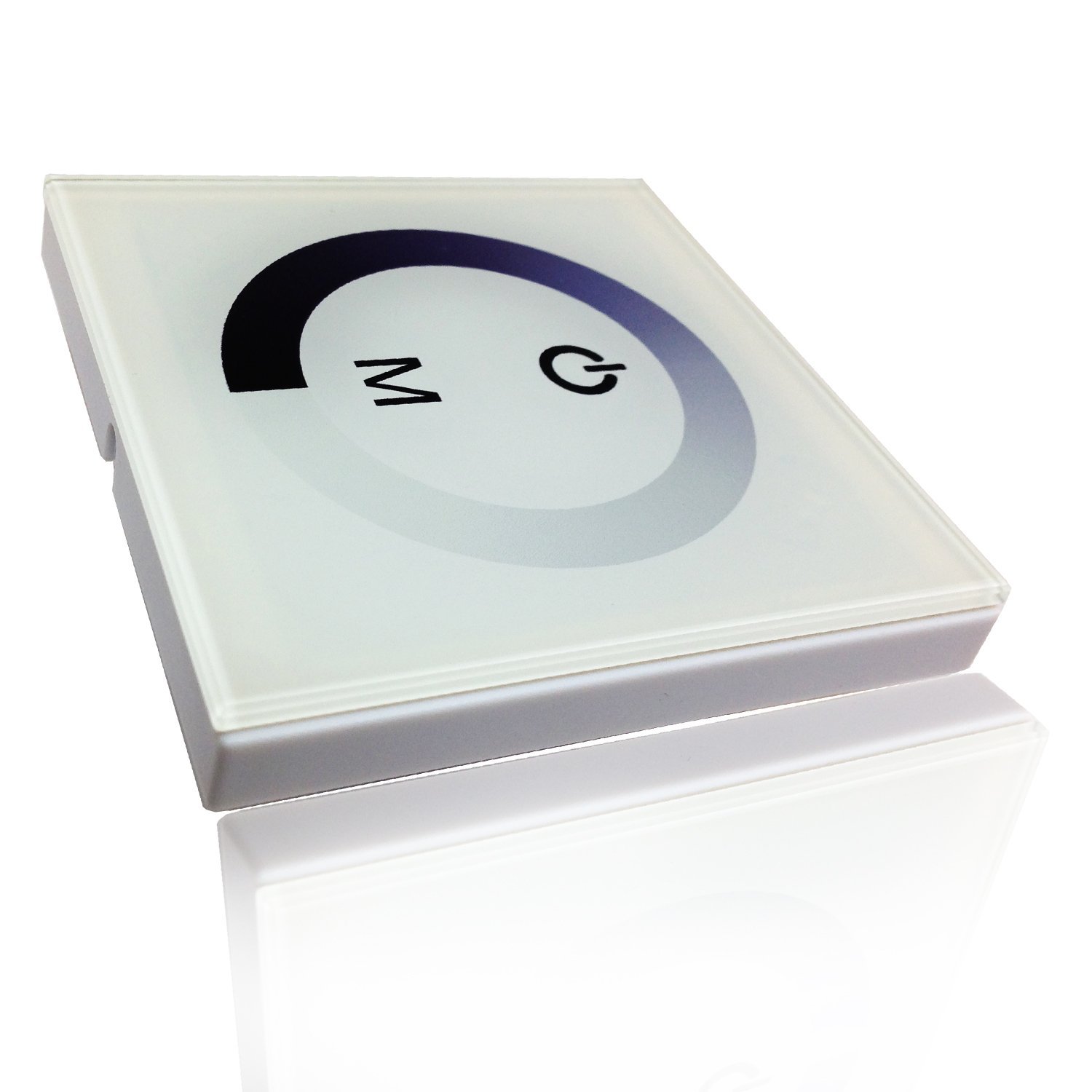

This is the white version LED touch panel dimmer, also available in black version
Try this Touch Star brand new unique LED touch panel dimmer. This LED dimmer enables you to adjust LED strip light's brightness in two ways: gradual change by touching inductive touch screen ring and setting brightness level immediately by pushing the "M" button in the center.

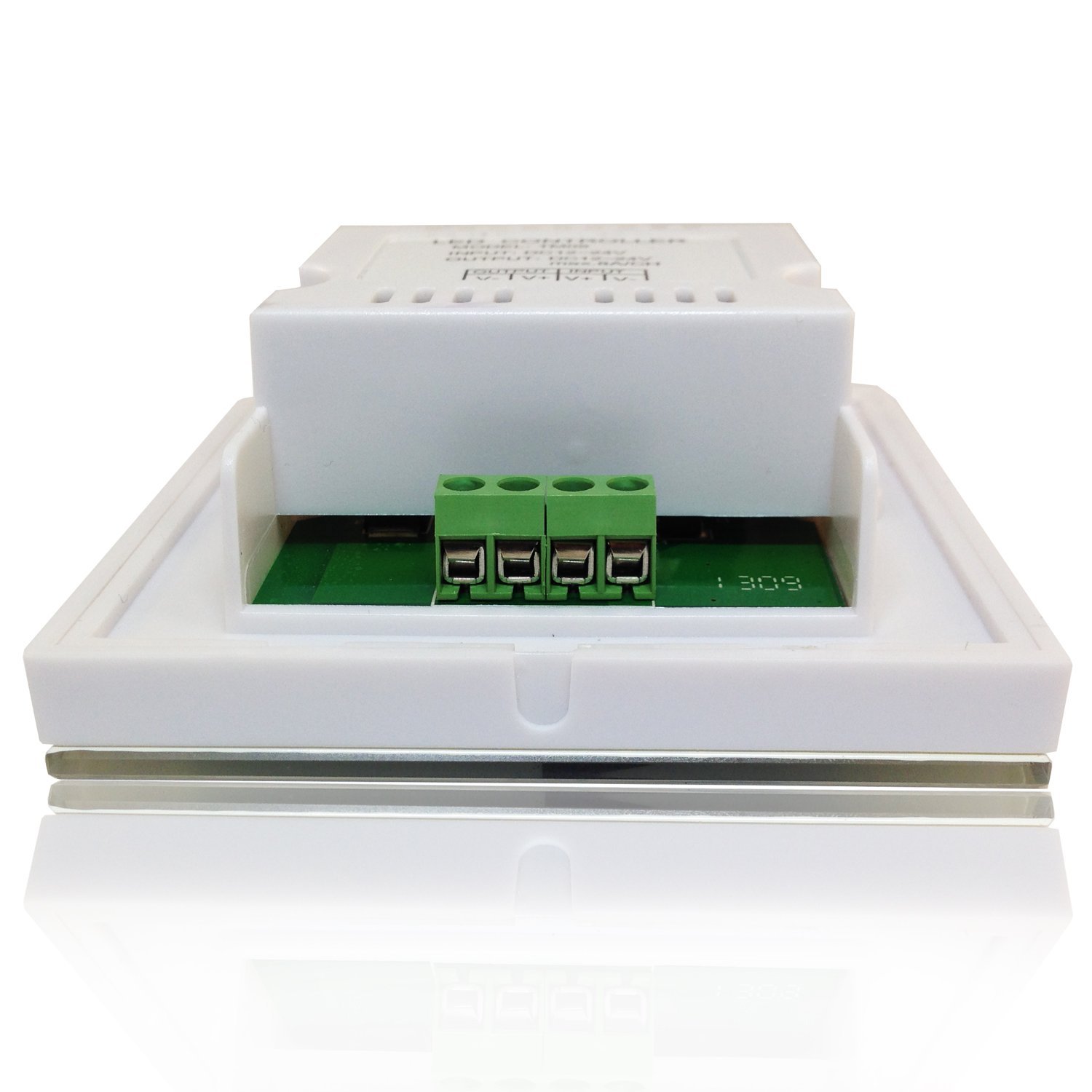

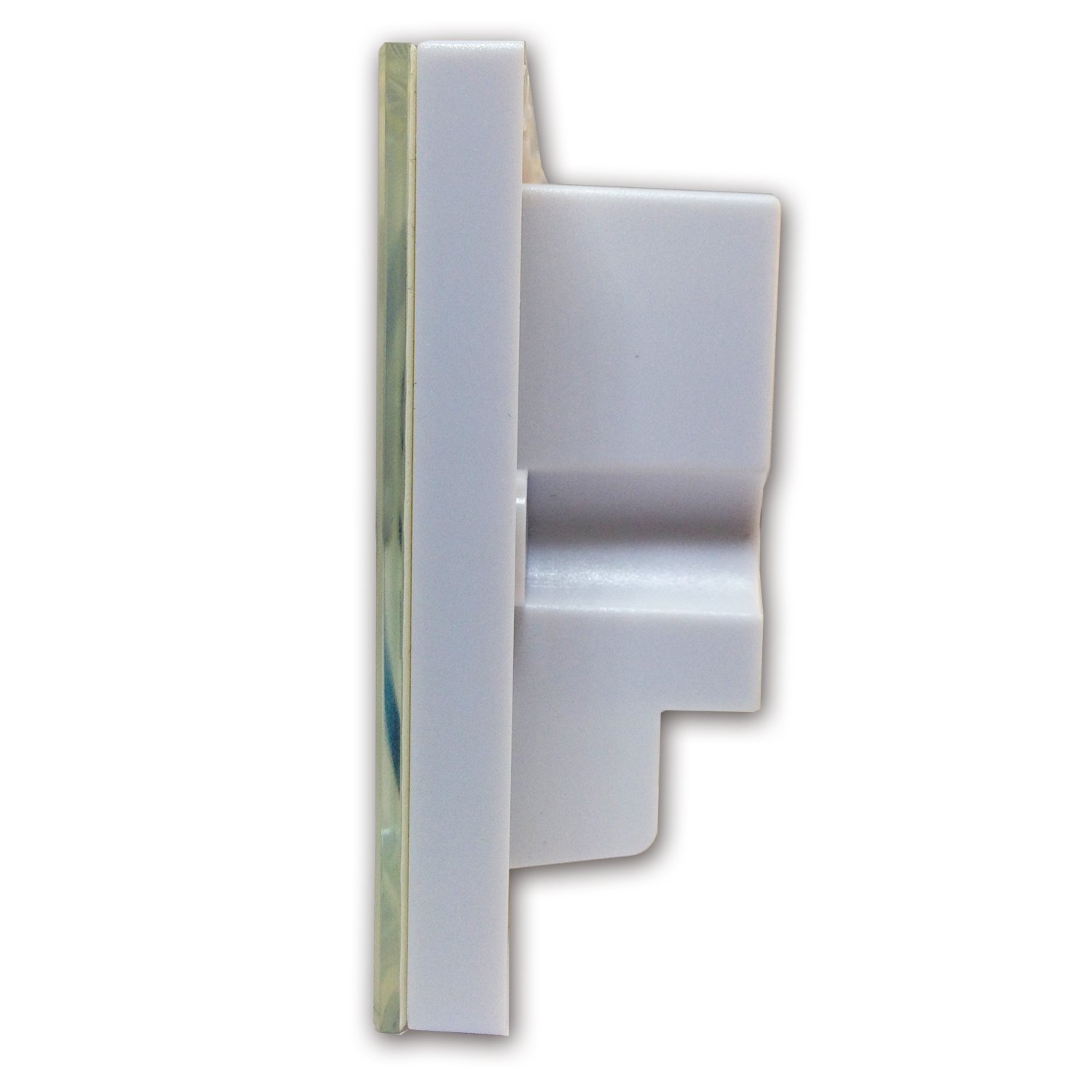

This dimmer is perfect to be mounted on the wall along with all your other switches. Uncover the glass touchscreen, you will find 2 screw holes and you can fix it to your wall with only 2 screws.
Please see controller dimension for reference.
Function buttons on the dimmer:
-- On/Off switch
--"M" in the center:brightness level setting
--Inductive touch screen ring: brightness gradual change
1 x Wheel touch panel dimmer
1 x Piece of User's Manual
