DC12V 12W UCS2904 RGBW Pixel LED Module Lights

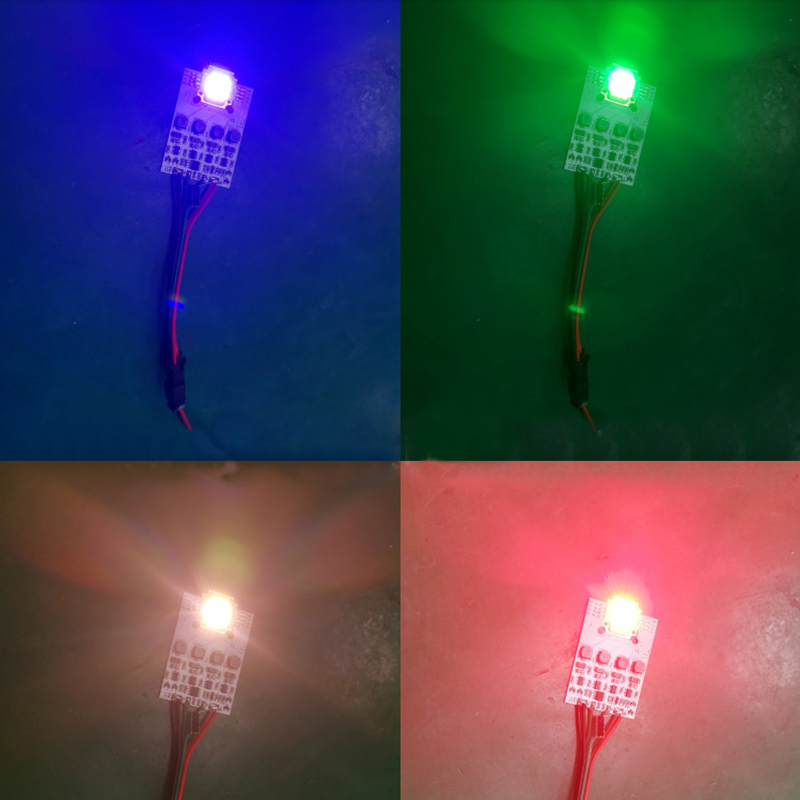

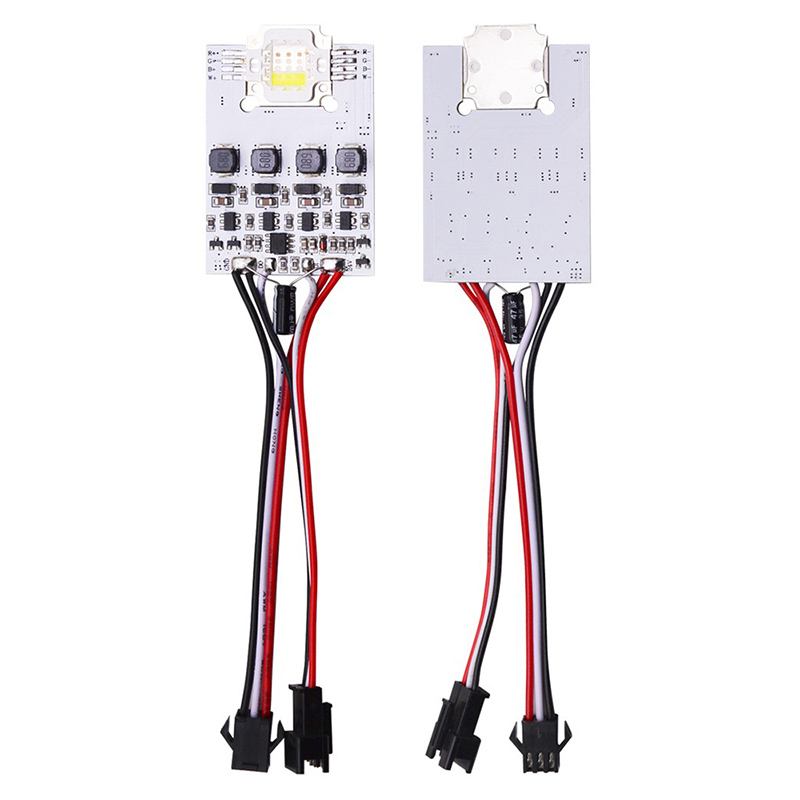

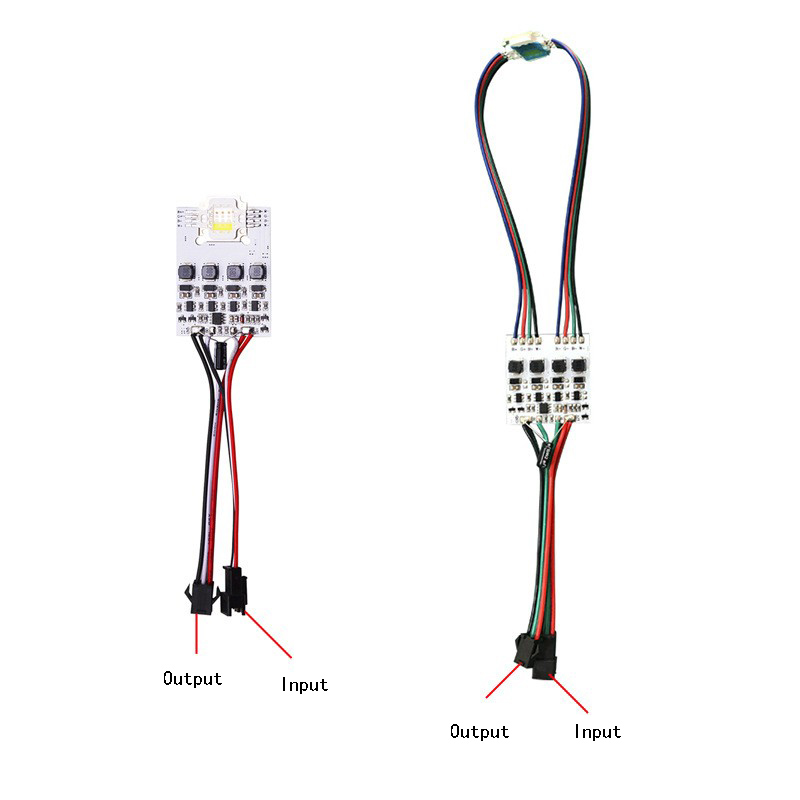

RGBW LED light module pixel dots, integrated UCS2904 IC, DC12V drive, come with JST connector, easy to install. Two white light color temperatures are available, 2700K-3200K warm white or 5000K-6500K pure white. These pixel led modules can be used for sign lighting, light box lighting, channel letter lighting, letter back lighting, commercial standing lighting, etc.
Standards and Certifications
IC type: UCS2904
Working Temperature: -4°F (-20°C) ~ 149°F (65°C)

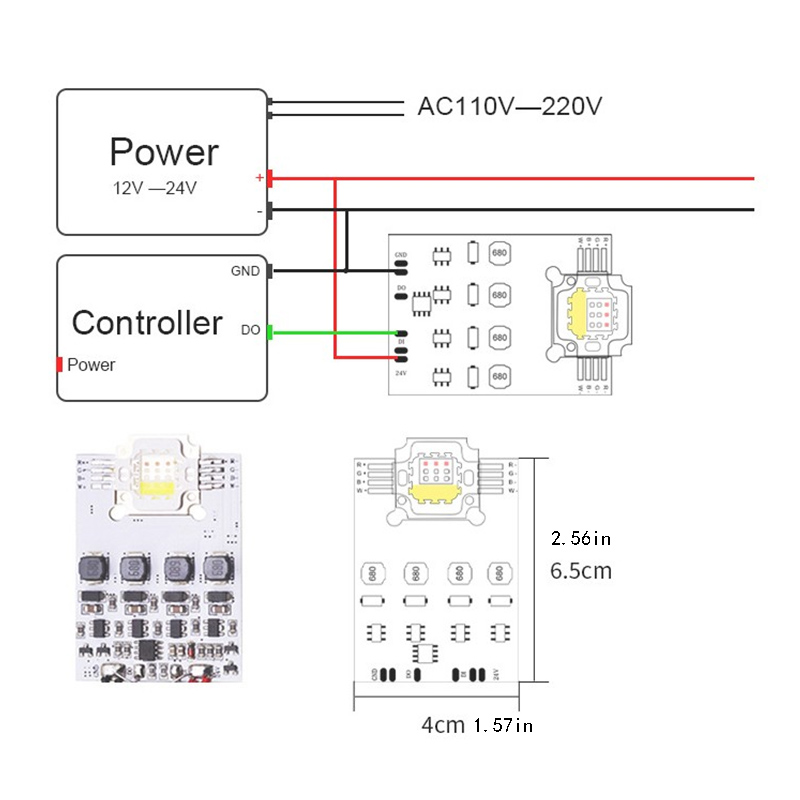

Size: 4cm*6.5cm / 1.57in*2.56in
Red Wiring colors: 12v Positive / +
White Wiring colors: Data Signal
Black Wiring colors: 12v Negative /-
Input Voltage(V): DC12V
Output power: 12W / piece
three-dimensional light-emitting word
Channel letters lighting
Light boxes lighting
Landscape layout lighting
Stage decoration lighting
Cove LED lighting
Edge lit signs
Off grid lighting
