SP602E SPI LED Music Controller - 4 Output - Bluetooth APP Control
SP602E 4 Output SPI Channel LED Music Controller Work With Bluetooth APP For WS2811, WS2812B, WS2813, WS2815, WS2818 Addressable LED Strips.
1. Supports both mobile APP and RF remote control.
2. Support the output of 4 different lighting effects, suitable for a variety of occasions to meet the different needs of customers.
3. Supports common single-wire LED driver ICs in the market.
4. Build in music and non-music effects, multi-parameter adjustable.
5. Built in grouping control function, supporting any combination control of 4 channels.
6. Built in trigger function, supporting the customization of trigger effect parameters.
7. DC5V~24V wide range working voltage, preventing reverse connection of power supply.
8. Saving setting parameters automatically.

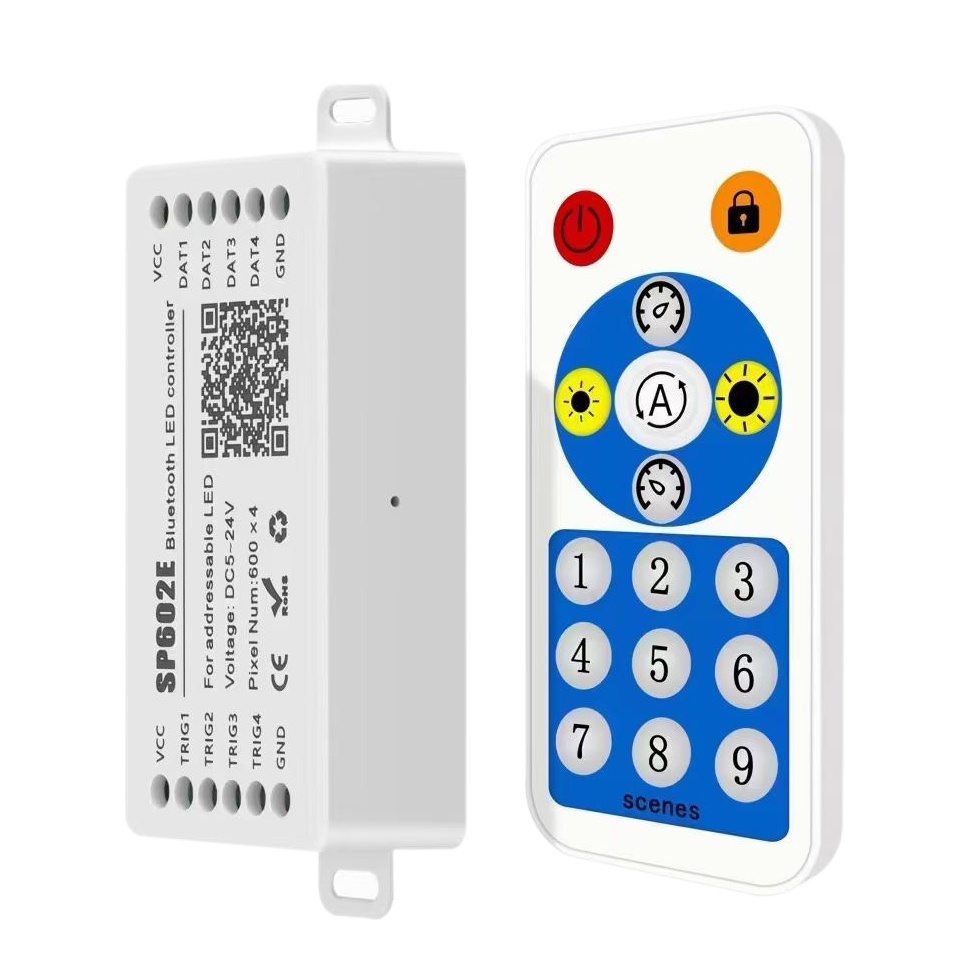

Product: SP602E controller.
Input voltage: DC5-24V.
Solutions service: Lighting and circuitry design.
Type: Remote Control and Bluetooth APP Control.
Controllable IC chips: 2400pixels（600pixels/port * 4 ).
Output port: 4 pcs.
Application: WS2812B, WS2811 etc Digital LED Light.
Output signal: SPI (TTL) Digital Signal.
Support: IOS 10.0/Android 4.4.
Working temperature: -20℃~60℃.

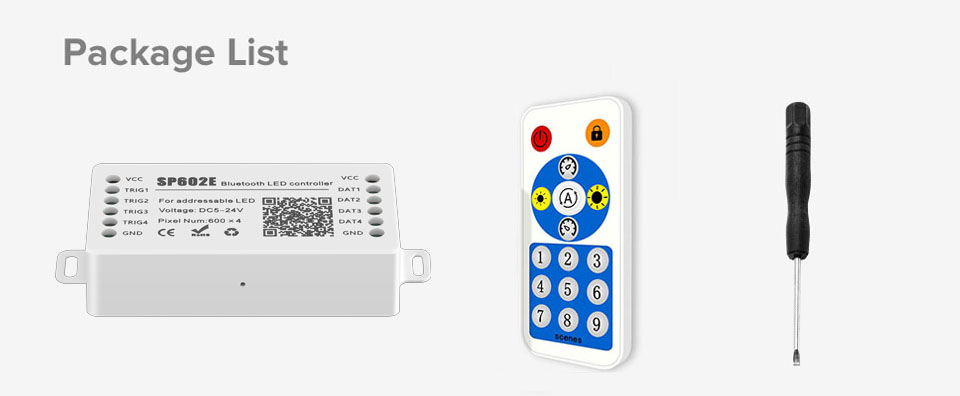

1* SP602E LED strip light controller (power and strip light not include)
SP602E supports control by mobile APP, supports IOS and Android system.
Apple phone requires IOS 10.0 or higher, Android phone requires Android 4.4 or higher.
you can search "BanlanX" in the App Store or Google Play to find the app, or scan the QR code to download and install.
1, Power supply/phone/controller/led strip not include.

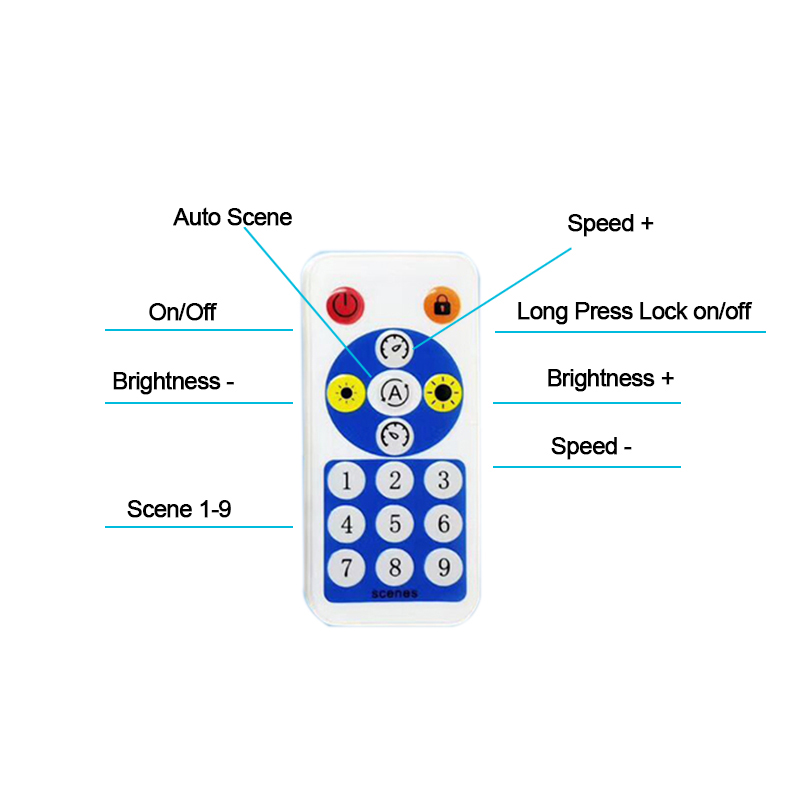

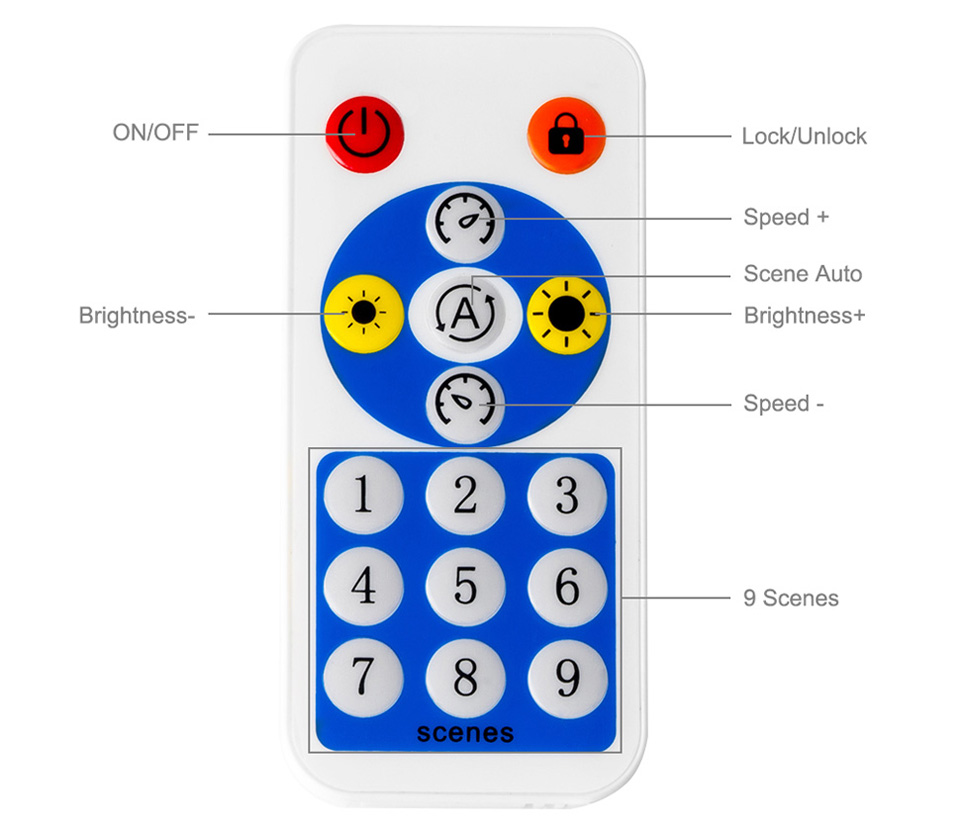

2, This controller only controls by 2.4G RF remote controller and smartphone App bluetooth controller.
3, This app support Android 4.4 or above, IOS 10.0 or above.
Open the APP and click the "+" button in the top right corner of the home page to add a device, then click the device to enter the control page.
Users can rename the controller by clicking on the ":" button in the upper right corner.
SP602E can output 4 way different signals, you can click channel 1 ~ channel 4 to enter the corresponding page for individual control, or click all channels for unified control.
After adjusting the effects of each channel, click the ":" button in the upper right corner to save the current lighting effect settings to the scenes, SP602E supports a total of 9 scenes, users can call these 9 scenes through the scene page of the mobile APP or use the RF remote control.
Users can set up five timing events by click on "clock" button in the upper right corner, please note that all timing events will be deleted when the controller is powered down.
On the effects page, there are a variety of music and non-music effects, and users can set the speed, brightness, effect length and color for specific effects.
On any single-channel page, click the upper right corner ":" button to verify the color and cop the channel, and copy the effect of the current channel to any other channel.
On the trigger page, there are four triggers, and each trigger has preset effects and dynamic effects, click the "ON/OFF" button, of the trigger to switch between preset effect and custom effect, you can click any of the triggers area to enter the dynamic effect selection interface. Click the upper right corner, "√" button to confirm the selected effect, and upper left corner "X" button to cancel. Long press the trigger area to change the trigger name, trigger lasting time, trigger channel.
On the grouping page, click "+” button in the lower right corner to add groups, select the channel associated with groups, and click OK to set the names of groups, the group page shows the added groups, and click in controls the effect mode of the channel associated with the group.
SP602E WIFI LED controller operating instructions
1. Connect to a new SP602E controller.
2. SP601E can output two different signals, and supports 9 scenes.
3. You save the current lighting effect settings to these scenes.
4. 40 built-in dynamic effects (1-24: general dynamic effects，25-40: music effects) and solid color effect.
5. You can enter the RGB value of the color directly in solid color effect,
6. You can save your favorite colors.
7. SP601E can be set up to 5 timers.

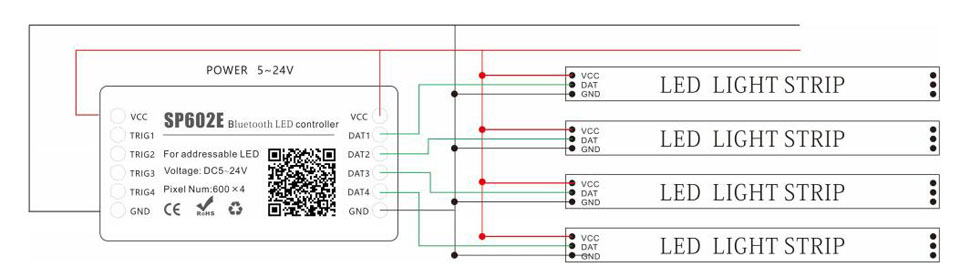

How to connect the WS2813 WS2815 WS2818 led strip lights

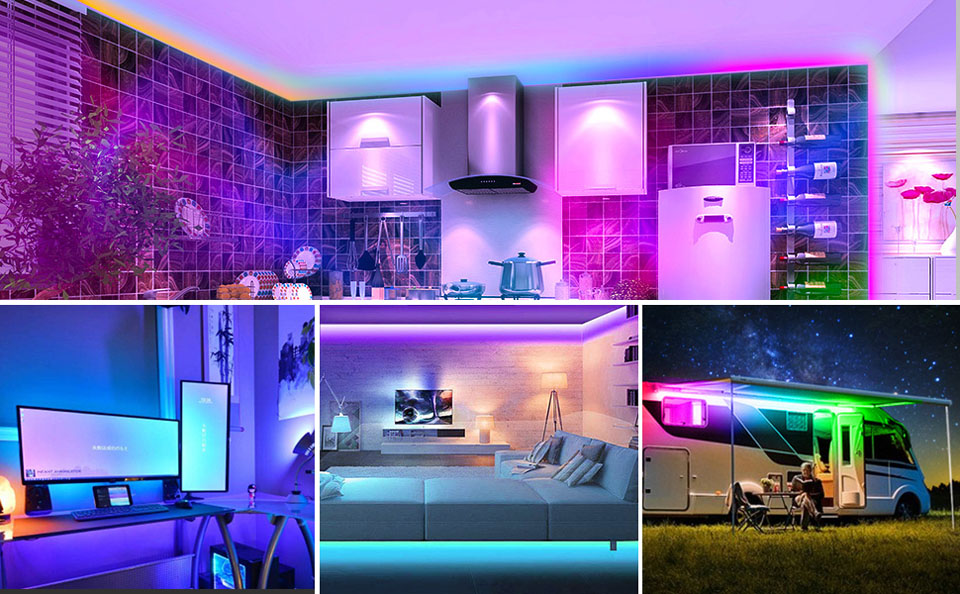

1.Interior Decoration: Club, bar, corridor, room, hotel, led aquarium lighting, museum, christmas, holiday, Retail LED lighting etc.
2.Exterior Decoration: Plaza, commercial buildings, parks, scenic spot, evening location, Sign illumination LEDs etc
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
