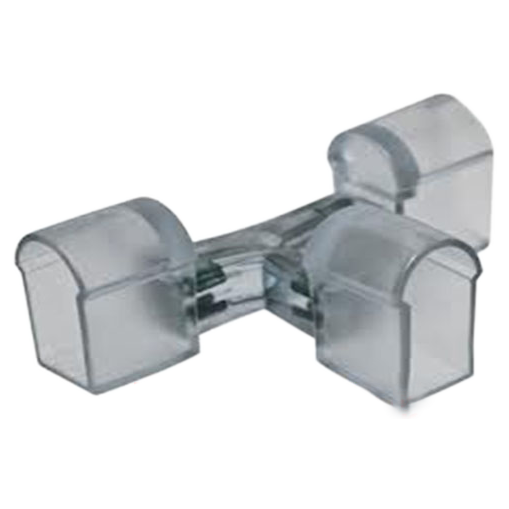

Create flawless, professional three-way junctions in your lighting projects with the T-Connector for 14x26mm LED Neon Flex. This essential accessory is engineered to split a single run of neon rope light into two perpendicular branches, enabling complex designs, grid patterns, and intricate lettering for signage. Unlike simple L-connectors, this T-splitter allows you to seamlessly branch power and signal in multiple directions from a single point. It's built for versatility, with options available for both 2-pin single color and 4-pin RGB neon flex. Crucially, it supports the full range of voltages from low-voltage DC12V/24V to high-voltage AC110V/220V systems, making it a universal solution for your 14x26mm neon installations.
Key Features
Seamless T-Junctions
Splits one neon flex run into two perpendicular directions for clean, professional three-way connections.
Profile Specific Design
Precision-molded for a secure, snug fit with 14x26mm LED neon flex rope lights.
Broad Compatibility
Available in 2-pin models for single-color neon and 4-pin models for RGB color-changing neon.
Universal Voltage Support
Functions perfectly across all common LED neon systems, including DC12V, DC24V, AC110V, and AC220V.
Durable Construction
Made from high-quality insulating plastic to ensure a reliable, safe, and long-lasting electrical connection.
Technical Highlights
- Enables complex layouts and grid designs not possible with straight or L-connectors.
- Internal copper pins provide excellent conductivity for consistent brightness and color.
- Simplifies wiring by eliminating the need to solder or splice cables for branching runs.
Product Specifications
| Parameter | Details |
|---|---|
| Model | LEDNEON-ACCOR-02 |
| Product Type | T-Shape Connector |
| Primary Compatible Profile | 14mm x 26mm LED Neon Flex |
| Other Compatible Profiles | 15x25mm, 8x16mm (Selectable options) |
| Pin Configuration | 2-Pin (for Single Color), 4-Pin (for RGB) |
| Supported Voltage | DC12V, DC24V, AC110V, AC220V |
| Material | Insulating PVC Plastic |
| Color | White / Translucent |
Application Scenarios
How to Install the LED Neon T-Connector
- IMPORTANT: Disconnect the power supply before beginning installation.
- Cut your LED neon flex sections cleanly at the designated cutting marks.
- Align the pins of the connector with the copper wire contacts inside the neon flex.
- Firmly push the ends of the neon flex sections into all three ports of the T-connector. Ensure the pins pierce the wires for a solid connection.
- Briefly reconnect power to test the connection. If all sections illuminate correctly, disconnect power again.
- For outdoor or damp locations, apply a generous amount of silicone sealant around all connection points where the neon meets the connector to create a waterproof seal.
- Always choose the correct pin-count for your neon flex: 2-pin for single color, 4-pin for RGB.
- This connector is specifically designed for 14x26mm neon flex. Using it with other sizes may result in a poor or unsafe connection.
- Ensure the polarity (+/-) is correctly aligned for DC low-voltage systems.
- Failure to properly seal the connection with silicone glue in wet environments will void any water resistance.
What's in the Box
- ✓1 x T-Connector for LED Neon Flex (in selected pin configuration)
🚚 Shipping & Warranty
Shipping: We ship worldwide. Standard and expedited shipping options are available at checkout. Orders are typically processed within 1-2 business days.
Warranty: This product is covered by a 1-year warranty against manufacturing defects. SuperLightingLED will replace any faulty units within the warranty period.
Return Policy: We offer a 30-day return policy on unused and unopened products. Please contact our customer service team to initiate a return.
Frequently Asked Questions
Q: What is this T-connector used for?
A:It is used to split one run of LED neon flex into two separate runs at a 90-degree angle, creating a clean three-way intersection for complex designs.
Q: Is this connector waterproof for outdoor use?
A:The connector itself is weather-resistant plastic. To make the connection fully waterproof, you must apply silicone sealant around all joints where the neon rope enters the connector.
Q: Will this fit my 8x16mm neon light?
A:This model is primarily for the 14x26mm neon profile. However, we offer selectable options for other sizes including 8x16mm and 15x25mm on the product page.
Q: How do I choose between the 2-pin and 4-pin versions?
A:Select the 2-pin connector for single-color LED neon flex. Select the 4-pin connector for multi-color RGB LED neon flex.
Q: Can I use this for both 12V and 110V neon lights?
A:Yes, this is a passive connector with no internal electronics, so it works perfectly with the full range of compatible neon flex voltages, from DC12V up to AC220V.
Q: Does the connector include the metal pins?
A:Yes, the connector comes with the sharp metal pins pre-installed, ready to pierce the neon flex wiring for a secure connection.
